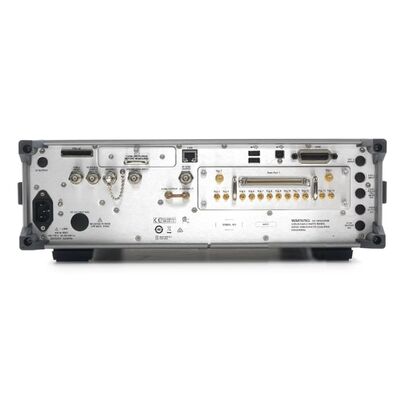

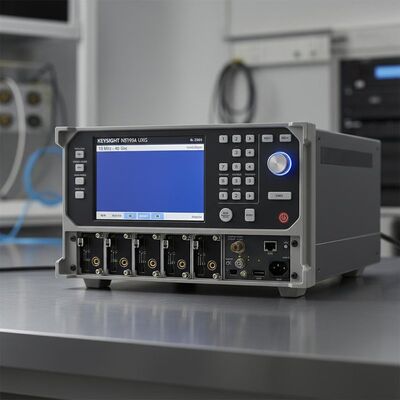

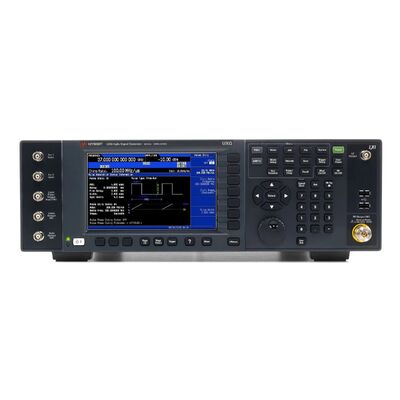

Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching

Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching
Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching

Large Image :  Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching

Product Details:
Contact Now Chat Now

Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching

Description
Highlight:

Keysight N5193A signal generator

,

UXG X-Series 40 GHz generator

,

phase-coherent agile signal generator

Keysight N5193A UXG X-Series Agile Signal Generator
Product Overview

The N5193A UXG Agile Signal Generator provides fast frequency, amplitude, and phase-coherent switching from 10 MHz to 40 GHz.

Key Features
  • Simulates increasingly complex signal environments for radar, EW, and antenna testing
  • Scalable threat simulator for EW systems testing
  • Generate long pulse trains with individually controlled pulse characteristics using pulse descriptor words (PDWs)
  • Accurately simulates multi-threat environments with 180 ns PDW update rate
  • Chirp capability from 10% to 25% of carrier frequency
  • Pulses as narrow as 10 ns
Included Components
  • 10 kHz frequency resolution
  • 100 μs switching speed
  • +10 to -10 dBm amplitude range
  • Typical phase noise of -117 dBc/Hz at 20 kHz offset for 10 GHz carrier frequency
  • 3.5 mm (f) to 3.5 mm (f) connector adapter (20 GHz models only)
  • 2.4 mm (f) to 2.4 mm (f) and 2.4 mm (f) to 2.9 mm (f) connector adapters (40 GHz models only)
  • Country-specific power cords
  • Documentation set (CD-ROM)
  • One day of onsite startup assistance
Technical Specifications
Parameter Specification
Frequency Resolution 10 kHz
Switching Speed 100 μs
Amplitude Range +10 to -10 dBm
Phase Noise -117 dBc/Hz (typ.), 10 GHz carrier, 20 kHz offset (standard)
Connector Adapter 3.5 mm (f) to 3.5 mm (f) (20 GHz models only)
2.4 mm (f) to 2.4 mm (f) and 2.4 mm (f) to 2.9 mm (f) (40 GHz models only)
Product Images
Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching 0 Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching 1 Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching 2 Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching 3 Keysight N5193A UXG X-Series Agile Signal Generator with 10 MHz to 40 GHz Range and Fast Frequency Phase-Coherent Switching 4
