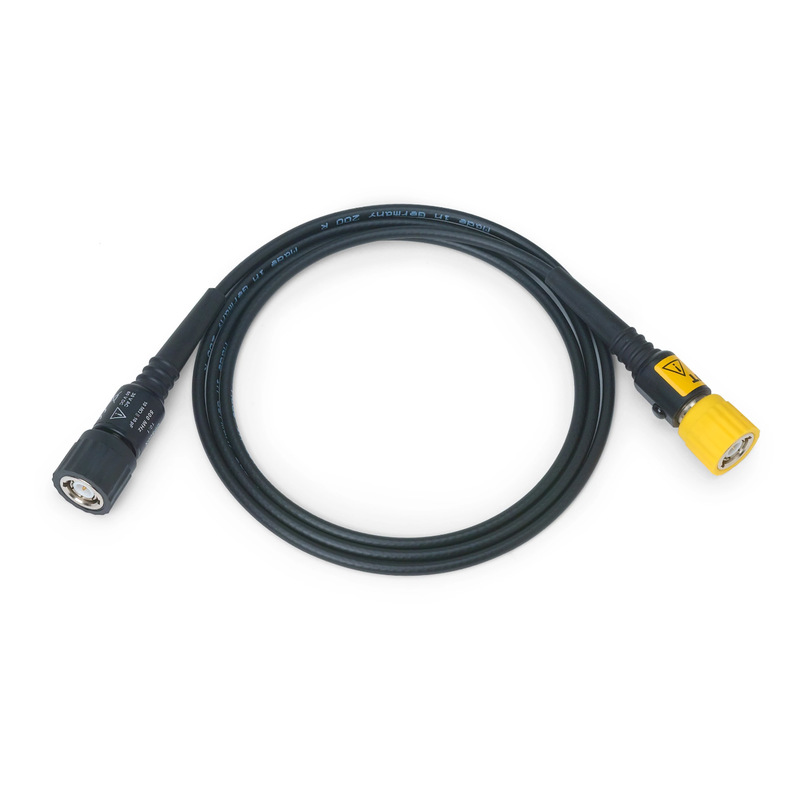

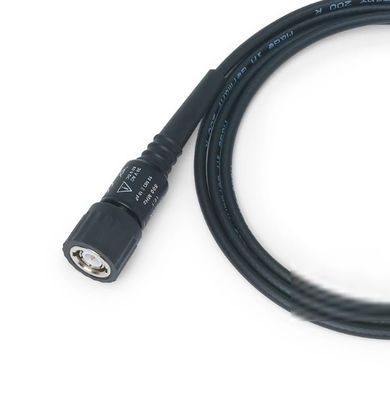

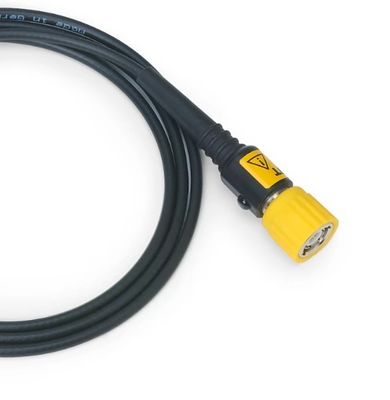

National Instruments CP500X Oscilloscope Probe Accurate Passive Oscilloscope Probe Single Ended

National Instruments CP500X Oscilloscope Probe Accurate Passive Oscilloscope Probe Single Ended
National Instruments CP500X Oscilloscope Probe Accurate Passive Oscilloscope Probe Single Ended National Instruments CP500X Oscilloscope Probe Accurate Passive Oscilloscope Probe Single Ended National Instruments CP500X Oscilloscope Probe Accurate Passive Oscilloscope Probe Single Ended

Large Image :  National Instruments CP500X Oscilloscope Probe Accurate Passive Oscilloscope Probe Single Ended

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: CP500X
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $1,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments CP500X Oscilloscope Probe Accurate Passive Oscilloscope Probe Single Ended

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: CP500X
Highlight:

Accurate CP500X Oscilloscope Probe

,

Single Ended CP500X Oscilloscope Probe

,

Passive Oscilloscope Probe Single Ended

Customized OEM Support for National Instruments CP500X Oscilloscope Probe
Product Overview

The NI CP500X (Part Number: 784253-01) is a passive single-ended oscilloscope probe designed by National Instruments for measurements up to 500 MHz. This versatile probe is widely used for accurate measurements from vibrating equipment, making it ideal for monitoring parameters from various sensors in heavy machinery such as engines, compressors, and pumps.

National Instruments CP500X Oscilloscope Probe Accurate Passive Oscilloscope Probe Single Ended 0
Key Features
  • Designed for measurements up to 500 MHz frequency
  • Voltage measurement range of ±60 V
  • 10:1 attenuation ratio when connected to 1 MΩ input impedance oscilloscopes
  • Input impedance of 10 MΩ
  • Approximately 1.2 meter length with BNC connector
  • Operates in temperature range of 0°C to 50°C
  • Lightweight design at approximately 58 grams
  • Compatible with various National Instruments and third-party measurement equipment
Technical Specifications
Measurement Frequency 500 MHz
Analog Input Voltage Range -60 V to 60 V
Attenuation 10x
Input Impedance 10 MΩ
Cable Length Approximately 1.2 meters
Connector Type BNC
Operating Temperature 0°C to 50°C
Weight Approximately 58 grams
Application Notes

The CP500X is a coaxial passive oscilloscope probe with fixed 10x attenuation, featuring 1 MΩ input impedance and 1 meter length. It connects to instrument signal inputs via BNC terminals on both ends, making it suitable for a wide range of industrial measurement applications.
