NI-5772 National Instruments Flexrio 2 Channel 800MS/S FlexRIO Digital Module Signal Generator

Large Image : NI-5772 National Instruments Flexrio 2 Channel 800MS/S FlexRIO Digital Module Signal Generator

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	NI-5772

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

NI-5772 National Instruments Flexrio 2 Channel 800MS/S FlexRIO Digital Module Signal Generator

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	NI-5772	Frequency Range:	20hz ~ 20khz Is Divided Into 3 Frequency Bands,9kHz ~ 6GHz,250kHz~67GHz,15MHz 30MHz 400MHz 50MHz 60MHz,25MHz
Oem:	Available,YES,MOQ>100pcs,OEM	Weight:	6.4 Kg,3Kg,<28kg
Dimensions:	364(W)112(H)420(D)mm,215(W)mm109(H)mm44.5(D)mm,19417968 MM	Product Name:	High Voltage Gps Signal Generator,DDS MFG-2125 Function Generator,Arbitrary Signal Generator
Warranty:	2 Years,1 Year	Frequency Resolution:	0.00000001Hz,0.001Hz
Output Signal:	0-24mA/0-12V/,4-20mA	Power Supply:	AC 220* ( 1 10 % ) V 50* ( 1 5 % ) Hz,3.7V Battery
Ce:	Yes,Test And Measurement	Ssb Phase Noise:	<-110dBc/Hz@1GHz,20KHz Carrier Offset(typical),0.001Hz
Frequency Accuracy:	±20ppm	Package:	Yes,Retail Package
Dimension:	804240mm,235mm110mm295mm	Display:	3.5-inch 480x320TFT LCD Screen,4 Inch TFT-LCD 480*320
Working Temp.:	0℃ ~+40℃	Square:	1μHz~30MHz
The Type Of Waveform:	Arbitrary Wave (including DC)	Display Size:	2.9 Inches & Under
Highlight:	NI-5772 National Instruments Flexrio , NI-5772 FlexRIO Digital Module , 2 Channel National Instruments Flexrio

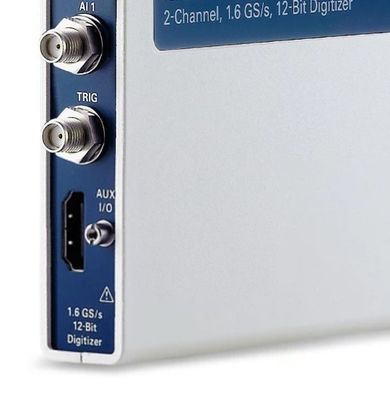

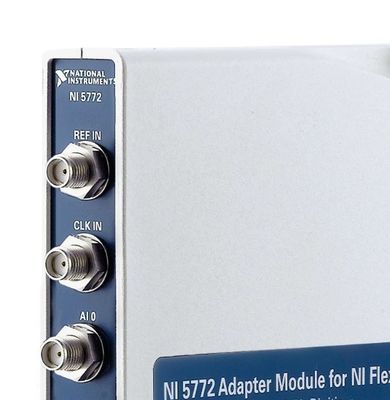

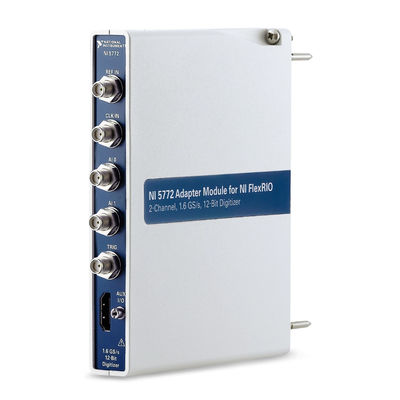

National Instruments 5772 FlexRIO Digitizer Adapter Module

OEM Customization for FlexRIO Module Integration

The National Instruments NI-5772 is a 2-Channel, 12-Bit Digitizer Adapter Module for FlexRIO, designed to work exclusively with compatible PXI FPGA Modules (Kintex-7 and Virtex-5).

Key Features

High-speed 1.6 GS/s sampling rate (single channel)
800 MS/s sampling rate when using both channels
12-bit resolution for precise measurements
Available in AC-coupled (2.27 GHz bandwidth) and DC-coupled (358 MHz bandwidth) configurations
Flexible clocking options including internal and external synchronization
Comprehensive I/O connectivity including SMA connectors and AUX port

Technical Specifications

Compatible FPGA Modules	Kintex-7, Virtex-5
Analog Input Resolution	12 bits
Maximum Sampling Rate	1.6 GS/s (single channel), 800 MS/s (dual channel)
Input Channels	2
Input Voltage Range	AC-coupled: -2V to +2V, DC-coupled: -1V to +1V
Bandwidth	AC-coupled: 2.27 GHz, DC-coupled: 358 MHz
Connectors	2x SMA Analog Input, 1x SMA CLK IN, 1x SMA REF-IN, 1x SMA TRIG (I/O), 1x AUX I/O port

Clock Sources

The NI-5772 offers multiple clocking options including an 800 MHz internal sample clock, external sample clock (400-800 MHz via CLK IN connector), and the ability to lock the internal clock to an external 10 MHz reference via the REF IN connector.

AUX Port Features

The AUX I/O port includes 8 digital I/O channels and 4 PFI channels with ±10V overvoltage protection for robust operation in demanding environments.
