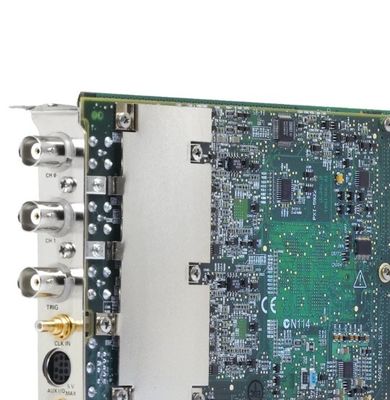

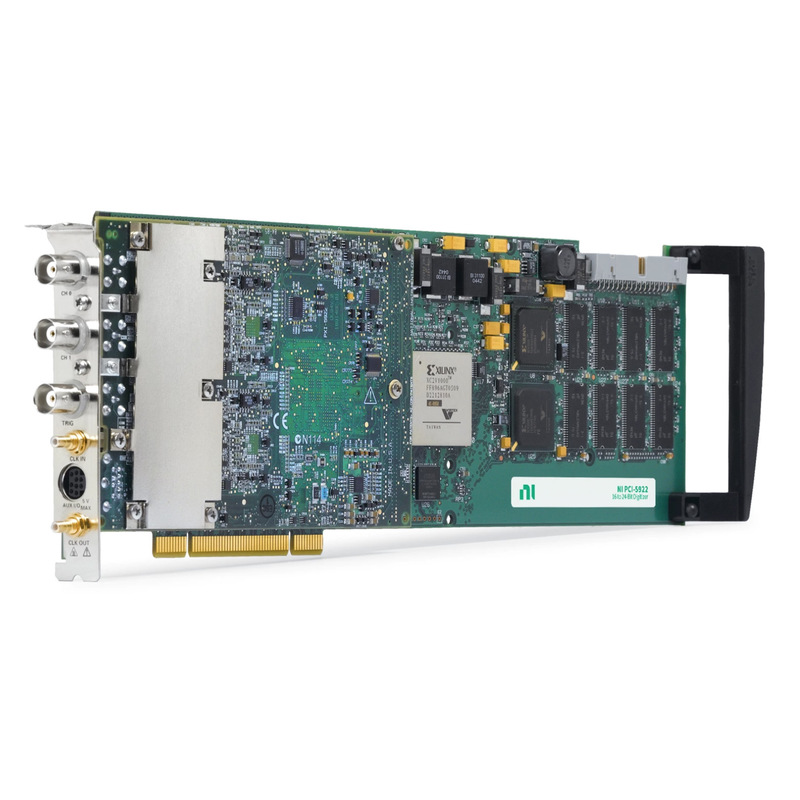

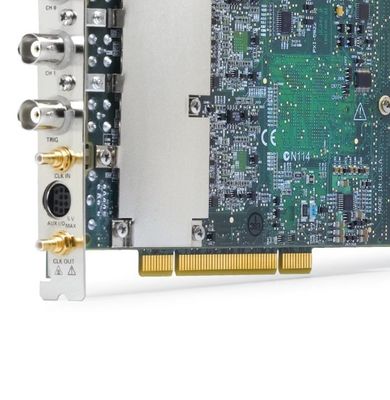

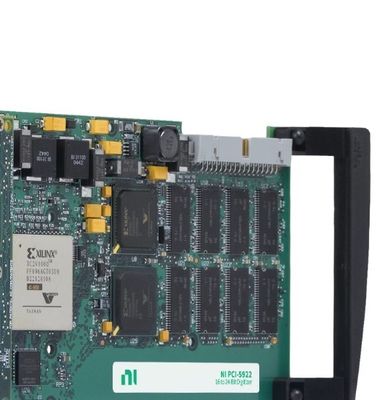

National Instruments PCI-5922 Oscilloscope Device 6MHz Bandwidth 24 Bit Resolution

National Instruments PCI-5922 Oscilloscope Device 6MHz Bandwidth 24 Bit Resolution
National Instruments PCI-5922 Oscilloscope Device 6MHz Bandwidth 24 Bit Resolution National Instruments PCI-5922 Oscilloscope Device 6MHz Bandwidth 24 Bit Resolution National Instruments PCI-5922 Oscilloscope Device 6MHz Bandwidth 24 Bit Resolution National Instruments PCI-5922 Oscilloscope Device 6MHz Bandwidth 24 Bit Resolution

Large Image :  National Instruments PCI-5922 Oscilloscope Device 6MHz Bandwidth 24 Bit Resolution

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PCI-5922
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $1,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PCI-5922 Oscilloscope Device 6MHz Bandwidth 24 Bit Resolution

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PCI-5922
Highlight:

National Instruments PCI-5922 Oscilloscope Device

,

6MHz Bandwidth PCI-5922 Oscilloscope Device

,

6MHz Bandwidth PCI-5922

Revolutionize Your Testing Capabilities with National Instruments PCI-5922 Oscilloscope Device
The National Instruments PCI-5922 Oscilloscope Device (Part Numbers: 779659-01, 779659-02, and 779659-03) is engineered for precision measurement applications including performance audio testing, wireless communications, satellite systems, ultrasound medical imaging, signal intelligence, baseband I & Q, and mass spectrometry analysis.
Key Features
  • High-resolution 24-bit analog input with 6 MHz maximum bandwidth
  • Dual voltage input channels with 15 MS/s sampling rate
  • Flexible API options: NI-SCOPE SFP and NI-SCOPE Instrument Driver
  • Configurable voltage range and coupling settings
  • Multiple triggering modes for precise measurement control
  • Generous onboard memory options (8MB, 32MB, or 256MB per channel)
  • Compatible with Spectral Measurements Toolkit for advanced frequency-domain analysis
  • Robust connectivity with 9-pin mini-circular DIN, 2 BNC female, and 2 SMB front panel connectors
Technical Specifications
Specification Value
Maximum Bandwidth 6 MHz
Maximum Sampling Rate 15 MS/s
Analog Input Voltage Range -5 V to 5 V
Analog Input Resolution 24-bit
Voltage Input Channels 2
Bus Connector PCI
Sealed Yes
Onboard Digital Downconverter No
Dimensions 14 x 0.8 x 4.4 inches
Weight 14.6 oz
Model Variations
The PCI-5922 is available in three configurations differentiated by onboard memory capacity:
  • 779659-01: 8 MB per channel
  • 779659-02: 32 MB per channel (compatible with Spectral Measurements Toolkit)
  • 779659-03: 256 MB per channel (compatible with Spectral Measurements Toolkit)
Calibration & Maintenance
The device supports both self-calibration and external calibration. For optimal performance, external calibration is recommended at least once every two years.
