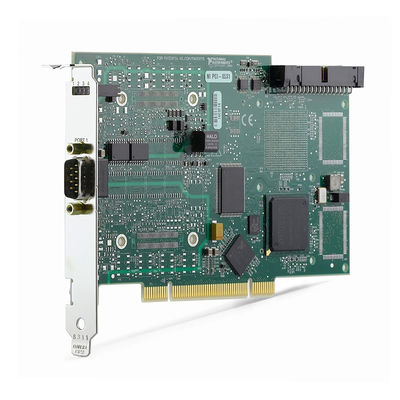

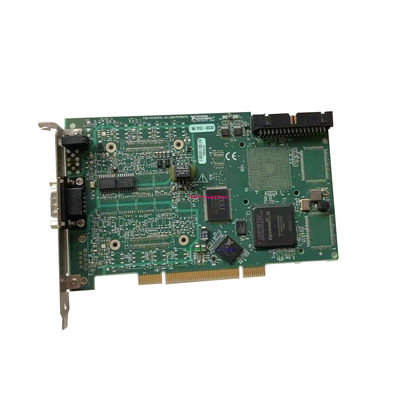

PCI-8531 CANopen Interface Device Advanced 10Kbps To 1Mbps Baud Rate 60 VDC Overvoltage Protection

PCI-8531 CANopen Interface Device Advanced 10Kbps To 1Mbps Baud Rate 60 VDC Overvoltage Protection
PCI-8531 CANopen Interface Device Advanced 10Kbps To 1Mbps Baud Rate 60 VDC Overvoltage Protection PCI-8531 CANopen Interface Device Advanced 10Kbps To 1Mbps Baud Rate 60 VDC Overvoltage Protection

Large Image :  PCI-8531 CANopen Interface Device Advanced 10Kbps To 1Mbps Baud Rate 60 VDC Overvoltage Protection

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PCI-8531
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $1,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

PCI-8531 CANopen Interface Device Advanced 10Kbps To 1Mbps Baud Rate 60 VDC Overvoltage Protection

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PCI-8531
Highlight:

PCI-8531 CANopen Interface Device

,

PCI-8531 canopen pc interface

,

Advanced CANopen Interface Device

Customized and OEM Alternatives for National Instruments PCI-8531 CANopen Interface Device
The PCI-8531 (Part Number: 781060-01) is a CANopen interface device developed by National Instruments, designed to create interfaces for CANopen applications between devices. CANopen is an advanced communication protocol based on the CAN physical layer, primarily designed for motion-oriented machine control networks.
PCI-8531 CANopen Interface Device Advanced 10Kbps To 1Mbps Baud Rate 60 VDC Overvoltage Protection 0
Key Features
  • PCI bus compatible interface
  • Provides connection between PC computers and CANopen control devices
  • Uses NXP PCA82C251 transceiver
  • Baud rate range: 10 kbps to 1 Mbps
  • Overvoltage protection withstands 60 VDC or 500 Vrms (certified through 5-second dielectric test)
  • Channel-to-channel isolation for enhanced protection
  • Dual LED indicators: LED 1 shows hardware status, LED 2 indicates error messages
  • 9-pin male D-SUB connector for interface
Applications
The PCI-8531 CANopen interface device is suitable for a wide range of industrial and research applications, including:
  • Automation systems
  • Medical equipment
  • Automotive industry
  • Off-road vehicles
  • Public transportation systems
  • Building automation products
  • Marine electronics
  • Network management (NMT) applications
Communication Capabilities
The device supports transmission and reception of both Process Data Objects (PDO) and Service Data Objects (SDO), making it versatile for various control and monitoring applications.
