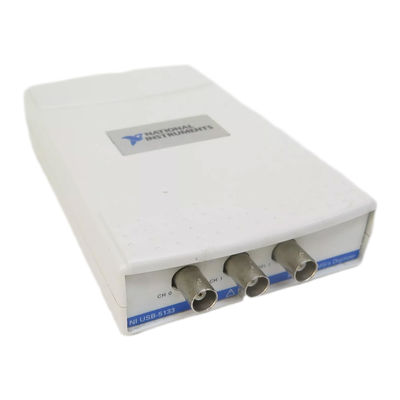

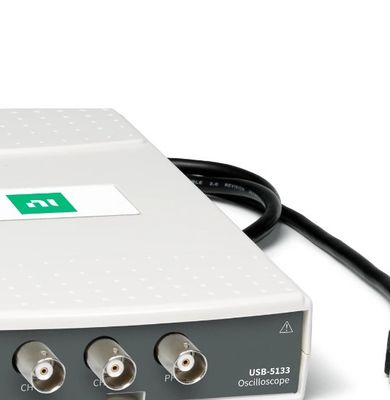

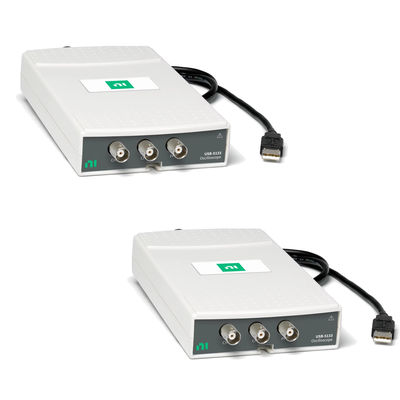

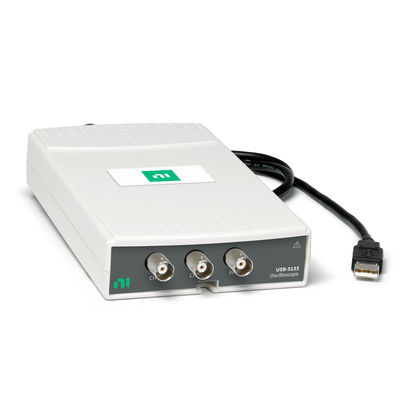

National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input

National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input
National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input

Large Image :  National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: USB-5133
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input

Description
Warranty: 1 Month Customized Support: OEM, ODM, OBM
Place Of Origin: United States Brand Name: National Instruments
Model Number: USB-5133 Power: See Instruction Manual For Details
Material: See Instruction Manual For Details Size: See Instruction Manual For Details
Highlight:

National Instruments NI USB 5133

,

National Instruments Digital Oscilloscope

,

Dual Channel NI USB 5133

NI-USB-5133 USB 2.0 Oscilloscope Bus Connector
50 MHz Maximum Bandwidth
The National Instruments USB-5133 is a portable, 50 MHz bandwidth, 8-bit, dual-channel USB oscilloscope device. With its built-in clock, it can acquire samples at rates ranging from 1.526 kS/s to 100 MS/s. The device also supports external sampling clock coupling via PFI line for frequencies between 1 MHz and 100 MHz.
National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input 0
Key Features
  • Dual-channel USB oscilloscope with 50 MHz bandwidth
  • 8-bit resolution with sampling rates from 1.526 kS/s to 100 MS/s
  • Programmable Function Interface (PFI) with bidirectional BNC connector
  • Compact and portable design (18.49 cm × 3.38 cm × 10.29 cm)
  • Low power consumption (1.15W typical)
  • 10-minute warm-up time with software-supported self-calibration
The NI USB-5133 offers flexible coupling, impedance, voltage range, and filtering settings across its two channels, making it an economical yet powerful oscilloscope solution.
Technical Specifications
Model Numbers 780469-01, 779970-01, 780469-02, 779970-02, 780469-03
Bandwidth 50 MHz
Channels 2
Resolution 8-bit
Sampling Rate 1.526 kS/s to 100 MS/s
Dimensions 18.49 cm × 3.38 cm × 10.29 cm
Weight 8.6 oz (244 g)
Operating Temperature 0°C to 45°C (indoor use only)
Power Requirements 1.15W (typical), powered via USB 2.0
Driver Support NI-SCOPE 3.4 and later
Physical Configuration

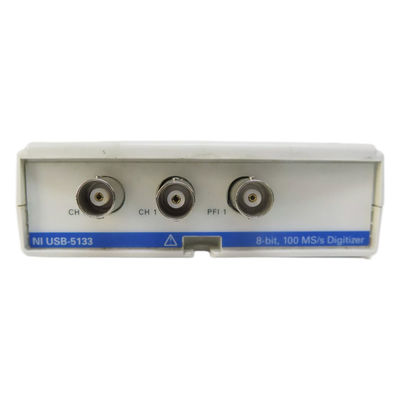

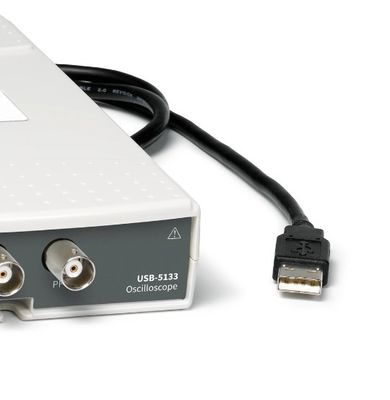

The NI USB-5133 features two analog channel connectors and a PFI connector on the front panel. The rear panel includes an embedded USB port and an LED power indicator. Its compact design makes it ideal for portable applications.
National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input 1 National Instruments NI USB 5133 USB Digital Oscilloscope 8 Bit Resolution Dual Channel Input 2
