National Instruments PXI-2549 PXI RF Relay Module with 4 Groups 45 Hz Scan Rate and 50 Ohm Characteristic Impedance

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXI-2549
Highlight:

4 Groups PXI RF Relay Module

,

45 Hz Scan Rate PXI-2549

,

50 Ohm Characteristic Impedance National Instruments RF Relay Module

OEM-Supported National Instruments PXI RF Relay Module for Superior Functionality and Performance
Product Overview
The National Instruments PXI-2549 (Part Number: 778572-49) is a PXI RF relay module designed to enhance system adaptability and maintain consistent signal paths across multiple channels when building multiplexers. Its terminal resistors minimize reflections in open channels and protect connected sources or devices during testing.
The module delivers exceptional performance with superior insertion loss, stable voltage standing wave ratio (VSWR), and excellent isolation parameters to prevent signal degradation. Built-in relay life tracking capability helps predict relay lifespan and reduce system downtime.
Key Features
  • SwitchBlock technology for flexible matrix switching solutions
  • Integrated analog bus for combining multiple matrices
  • Supports creation of large networks with over 2000 crosspoints in 4 PXI slots
  • Advanced relay health monitoring capabilities
  • Local relay count tracking for system monitoring
Technical Specifications
Number of Groups 2
Scan Rate 45 times/second
Bus Connector PXI Hybrid
Maximum AC Load Current 0.5 A
Maximum AC Switching Voltage 30 V
Relay Configuration SPDT
Relay Type Electromechanical
Switching Bandwidth 2.7 GHz
Characteristic Impedance 50 Ω
Termination Yes
Product Images

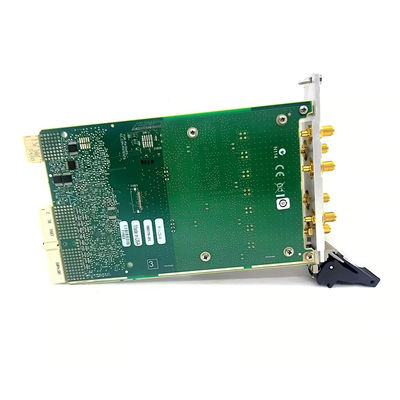

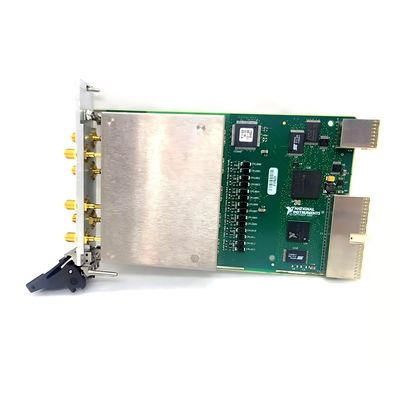

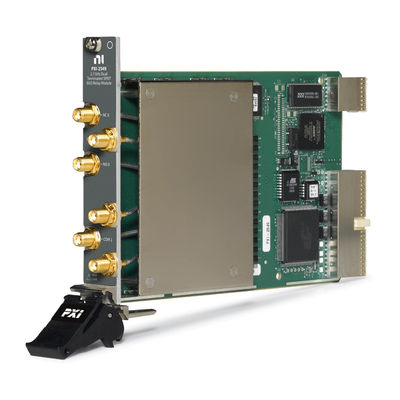

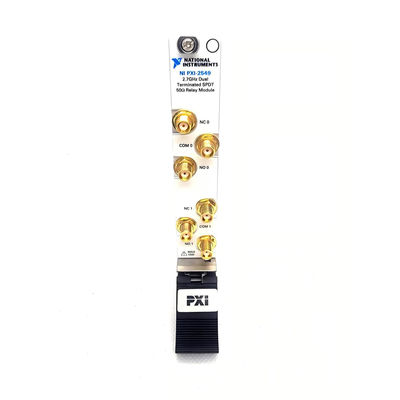

National Instruments PXI-2549 PXI RF Relay Module with 4 Groups 45 Hz Scan Rate and 50 Ohm Characteristic Impedance 0 National Instruments PXI-2549 PXI RF Relay Module with 4 Groups 45 Hz Scan Rate and 50 Ohm Characteristic Impedance 1 National Instruments PXI-2549 PXI RF Relay Module with 4 Groups 45 Hz Scan Rate and 50 Ohm Characteristic Impedance 2 National Instruments PXI-2549 PXI RF Relay Module with 4 Groups 45 Hz Scan Rate and 50 Ohm Characteristic Impedance 3
