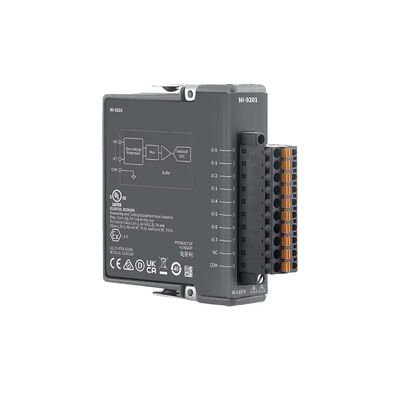

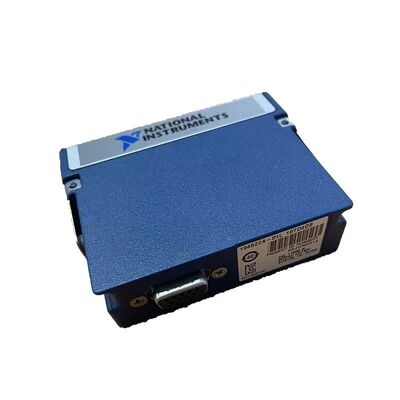

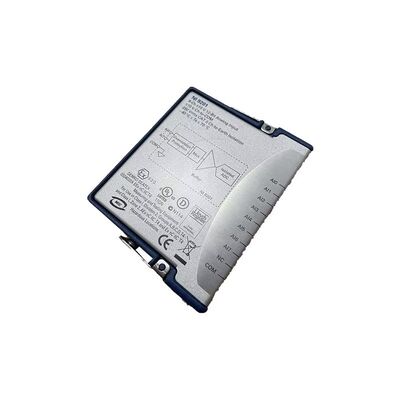

National Instruments NI 9201 Analog Input Module for Data Acquisition Electronic Measuring Instrument with Voltage Input

The National Instruments sbRIO-9201 is a C Series voltage input module designed for multi-level voltage applications. This 12-bit module features 8 single-ended analog input channels with a ±10 V input range, offering an economical solution with fast operation speed and excellent channel count.

• 12-bit resolution with 8 single-ended analog input channels
• ±10 V input voltage range
• 500 kS/s sampling rate
• Successive Approximation Register (SAR) ADC technology
• Individual signal sampling path for each channel
• Compatible with CompactDAQ and CompactRIO systems
• Available with screw terminal or D-SUB connectors
• Built-in protection against isolation voltages (channel-to-COM and channel-to-Earth ground)
• Overvoltage protection up to 100 V
• Low-power sleep mode (consumes only 1 mW)

•













The sbRIO-9201 features a sleep mode that significantly reduces power consumption to just 1 mW and minimizes heat dissipation compared to active operation. In sleep mode, the module cannot communicate.
