National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth

Large Image : National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXI-2566

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXI-2566 Relay Module with 16-SPDT Non-Latching 2A DC Switching Current and 70 MHz Switching Bandwidth

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXI-2566
Highlight:	16-SPDT Non-Latching Relay Module , 2A DC Switching Current PXI Relay Module , 70 MHz Switching Bandwidth National Instruments PXI-2566

Customized Support for OEM Applications National Instruments PXI-2566 Relay Module

The National Instruments NI PXI-2566 (Part Numbers: 778572-66, 778573-66) is a 2A, 16-channel, SPDT-based PXI relay module designed for general-purpose applications. This module features SPDT Form C electromechanical relays with low thermal offset and extremely low on-resistance.

Key Features

16 SPDT (non-latching) or 8 DPDT topology configuration
70 MHz switching bandwidth
2A maximum switching current (DC/AC)
150V DC/125V AC maximum switching voltage
60W maximum switching power
Fast relay action time: 2ms typical, 4.4ms maximum
High cycling speed: 115 cycles/second
Compact 3U single-slot PXI module design

Technical Specifications

Parameter	Specification
Relay Configuration	SPDT (Form C)
Channels	16
Maximum Switching Current	2A DC/AC
Maximum Switching Voltage	150V DC/125V AC (channel-to-channel)
Switching Bandwidth	70 MHz
Relay Action Time	2ms typical, 4.4ms maximum
Maximum Cycling Speed	115 cycles/second
Power Consumption	4.5W @ 5V, 2.5W @ 3.3V
Connector Type	62-pin D-SUB I/O
Dimensions	8.5 x 0.8 x 5.1 inches
Weight	250g (9 oz)

Environmental Specifications

Parameter	Specification
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
Humidity	5% to 85% non-condensing
Vibration (Operating)	0.3 grms (5Hz to 500Hz)
Vibration (Non-operating)	2.4 grms (5Hz to 500Hz)

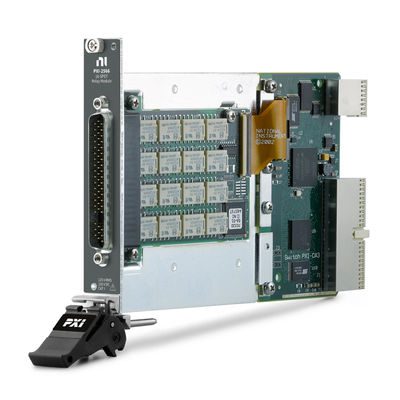

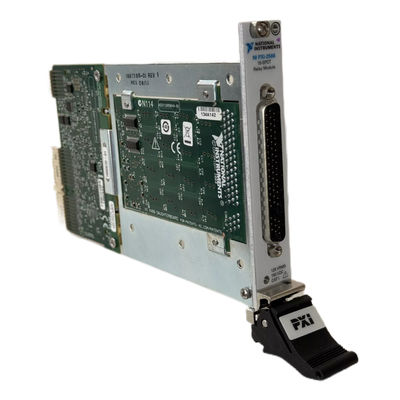

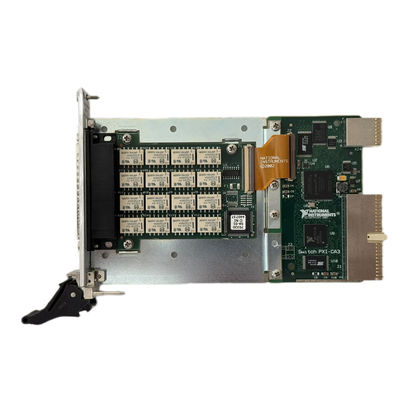

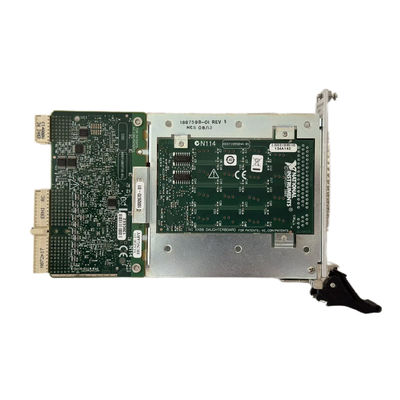

Product Images
