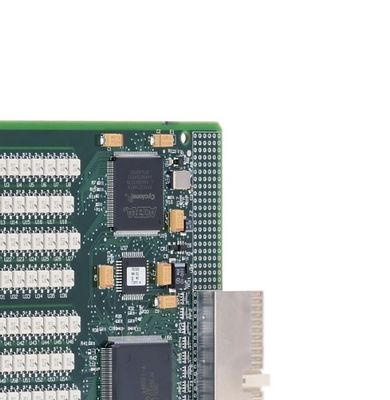

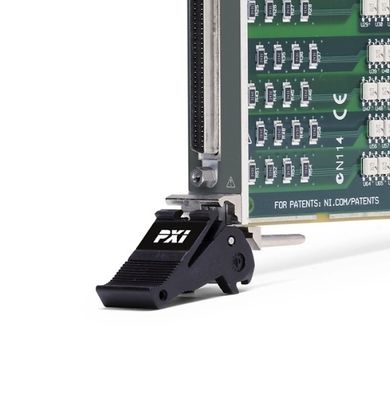

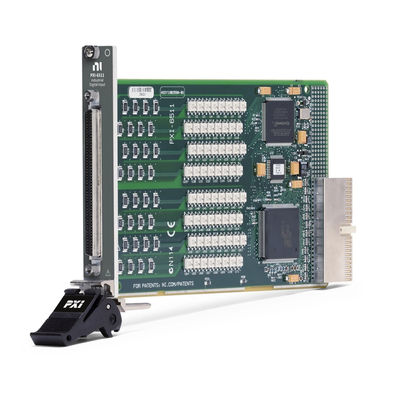

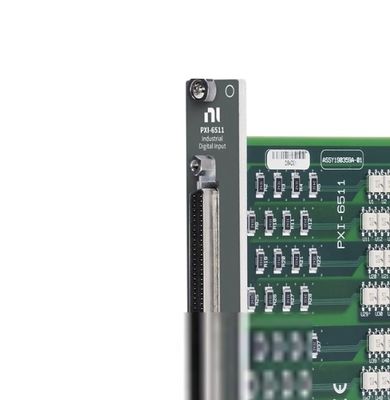

National Instruments PXI-6511 64-Channel ±30 VDC Digital I/O Module with High-Density 100-pin SCSI Connector

National Instruments PXI-6511 64-Channel ±30 VDC Digital I/O Module with High-Density 100-pin SCSI Connector
National Instruments PXI-6511 64-Channel ±30 VDC Digital I/O Module with High-Density 100-pin SCSI Connector National Instruments PXI-6511 64-Channel ±30 VDC Digital I/O Module with High-Density 100-pin SCSI Connector National Instruments PXI-6511 64-Channel ±30 VDC Digital I/O Module with High-Density 100-pin SCSI Connector National Instruments PXI-6511 64-Channel ±30 VDC Digital I/O Module with High-Density 100-pin SCSI Connector

Large Image :  National Instruments PXI-6511 64-Channel ±30 VDC Digital I/O Module with High-Density 100-pin SCSI Connector

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXI-6511
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PXI-6511 64-Channel ±30 VDC Digital I/O Module with High-Density 100-pin SCSI Connector

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXI-6511 Product Name: Body Composition Analyzer,9D NLS Quantum Health Analyzer,quantum Body Health Analyzer,BIOBASE-SILVER,portable Fully Auto Biochemistry Analyzer
Item: Used,body Element Measurer For Fat,45 Items Report,Full Body 3d Nls Health Analyzer Language: Multiple Languages Choice,German,English. Other Languages On Request.,French,Spanish
Function: Detecting Body Health,Diagnosis And Treatment,hysiological Functions Of Diagnosis,Body Healthy Check,therapy Treatment Name: Semi-auto Biochemical Analyzer,3D NLS Health Analyzer,Full Health Body Analyzer,Auto Urine Analyzer UA-240
Application: Clinic,Home Use,Hosipital,Lab,Personal Language Version: English,Russian,Chinese,Spanish,Italian
Wavelengths: 670nm.1 More Filter Optional,620,578,405,5 Standard Filters Software Version: Original,4.6.0
Style: Clinical Examination Aids,Health Check Absorbance Range: -0.500-3.500 Abs,0~4.500 Abs
Advantage: Record Use Times,Password Setup,FIR Belt,In Stock Output: Build-in Printer Or External Printer (optional),Standard RS-232 Serial Interface
Weight: 1.5kg
Highlight:

64-channel Digital I/O Module

,

±30 VDC PXI-6511

,

High-Density 100-pin SCSI Connector National Instruments Module

Customized National Instruments PXI-6511 Digital I/O Module for OEM Integration
National Instruments PXI-6511 64-Channel ±30 VDC Digital I/O Module with High-Density 100-pin SCSI Connector 0
The National Instruments PXI-6511 (Part Number: 778967-01) is a 64-channel, bank-isolated, sink/source input digital I/O module with ±30 VDC capability. Designed for industrial applications, this PXI-based module features eight groups of fully isolated channels for reliable operation in demanding environments.
Key Features:
  • 64-channel digital I/O with bank isolation
  • Digital input voltage range: -30 V to 30 V
  • 24 V digital I/O logic level
  • Integrated digital I/O watchdog for safety monitoring
  • Programmable input filters for noise rejection
  • Configurable power-up states via Measurement & Automation Explorer (MAX)
  • High-density 100-pin keyed female SCSI connector
  • NIDAQmx driver software compatible with LabVIEW and LabWindows/CVI
Technical Specifications
Specification Value
Bus Connector PXI Hybrid
Digital I/O Logic Level 24 V
Number of Digital Input Channels 64
Digital Input Voltage Range -30 V to 30 V
Signal Type Single-ended
Physical Dimensions 8.38 x 5.12 inches
Weight 4.8 oz
Operating Temperature 0 to 55 °C
Storage Temperature -20 to 70 °C
Advanced Functionality
The PXI-6511 features integrated safety mechanisms including a digital I/O watchdog that triggers a user-configurable safe output state in case of software or hardware failures. The module's programmable input filters eliminate spikes and provide effective noise rejection for digital relays and switches.
The high-density 100-pin connector provides access to all digital inputs, which utilize photocouplers that respond to both voltage differential and increase. Users can configure precise timing intervals for the digital filters located after the photocouplers, ensuring optimal signal processing for various applications.
