National Instruments PXI-7841 Multifunction Reconfigurable I/O Module with 8 Analog Input and 8 Analog Output Channels and 200 kS/s Sampling Rate

National Instruments PXI-7841 Multifunction Reconfigurable I/O Module with 8 Analog Input and 8 Analog Output Channels and 200 kS/s Sampling Rate
National Instruments PXI-7841 Multifunction Reconfigurable I/O Module with 8 Analog Input and 8 Analog Output Channels and 200 kS/s Sampling Rate National Instruments PXI-7841 Multifunction Reconfigurable I/O Module with 8 Analog Input and 8 Analog Output Channels and 200 kS/s Sampling Rate

Large Image :  National Instruments PXI-7841 Multifunction Reconfigurable I/O Module with 8 Analog Input and 8 Analog Output Channels and 200 kS/s Sampling Rate

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXI-7841
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PXI-7841 Multifunction Reconfigurable I/O Module with 8 Analog Input and 8 Analog Output Channels and 200 kS/s Sampling Rate

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXI-7841
Highlight:

8 Analog Input Channels Multifunction Reconfigurable I/O Module

,

8 Analog Output Channels PXI-7841

,

200 kS/s Sampling Rate Noise Analyzer

National Instruments PXI-7841 Multifunction Reconfigurable I/O Module Customized for Your Business Efficiency
国家仪器 PXI-7841 PXI 多功能可配置 I/O 模块 (部件编号: 780337-01) 由 National Instruments 制造,配备内置 Virtex-5 LX30 FPGA 模块,显著增强系统性能和灵活性.
主要特性
  • 8个模拟输入通道和8个模拟输出通道,每个通道最高支持200 kS/s采样率
  • 支持DIFF,RSE和NRSE输入模式,可通过软件选择适用于所有通道
  • 16位分辨率,转换时间约4μs,输入阻抗约10 GΩ(与100pF并联)
  • 直流耦合,最大工作电压±12 V(适用于单模式和共模)
  • 小信号带宽1 MHz,大信号带宽可达500 kHz
  • 96个数字I/O线,3个68针高密度VHDCI母I/O连接器
  • 通道间最大工作电压±24 V,符合电磁兼容标准
技术规格
参数 规格
最大采样率 200 kS/秒
总线连接器 PXI 混合
最大时钟速率 40 兆赫
双向数字通道 96
数字输入/输出逻辑电平 3.3 V, 5 V
动态随机存取存储器 (DRAM) 0 MB
现场可编程门阵列 Virtex-5 LX30
模拟输入电压范围 -10 V 到 10 V
点对点数据流支持 不
模拟输入通道 8
模拟输出通道 8
注意:该模块建议仅限室内使用,可使用非金属软刷进行清洁.

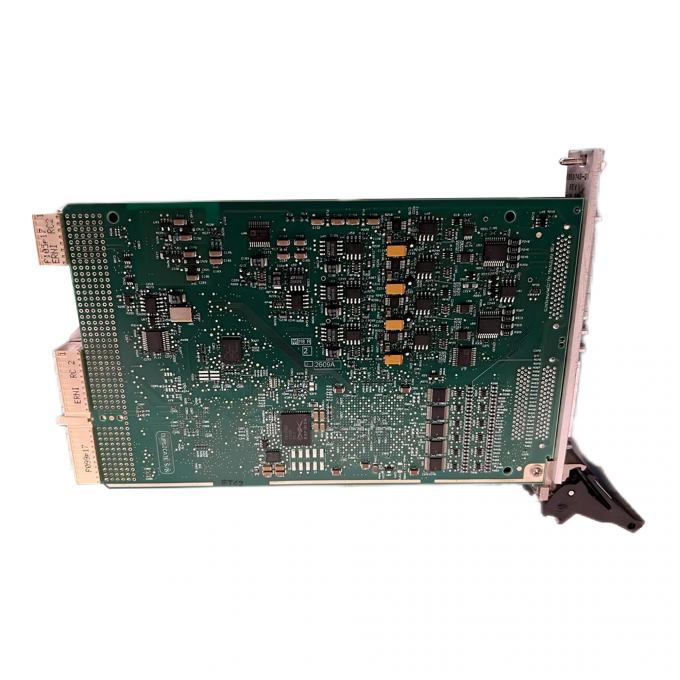

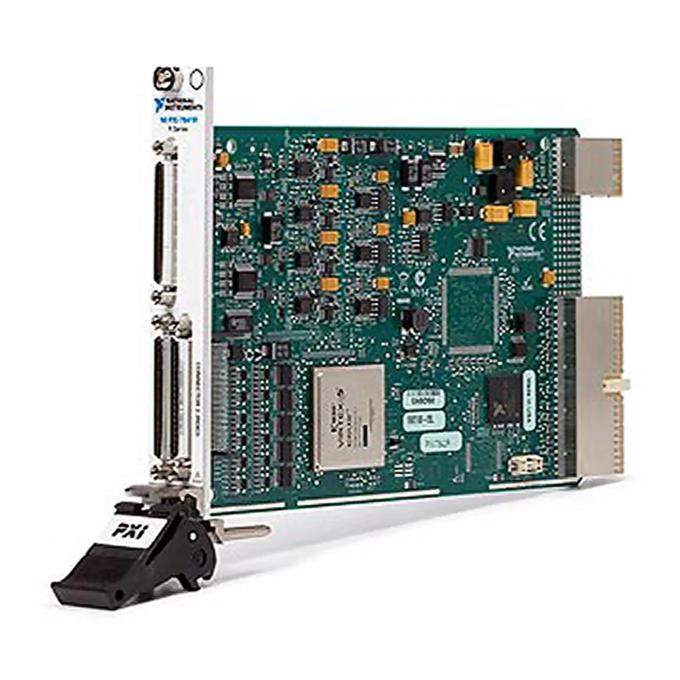

国家仪器 PXI-7841 PXI 多功能可配置 I/O 模块正面视图 国家仪器 PXI-7841 PXI 多功能可配置 I/O 模块侧面视图
