National Instruments PXIe-2524 PXI Multiplexer Switch Module with 2 Ampere Input Switching Current 60 Watt Switching Power and 128 Channels

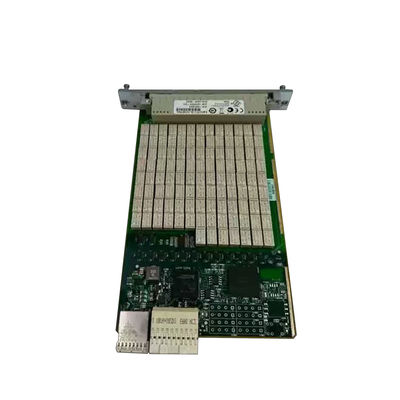

Large Image : National Instruments PXIe-2524 PXI Multiplexer Switch Module with 2 Ampere Input Switching Current 60 Watt Switching Power and 128 Channels

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-2524

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-2524 PXI Multiplexer Switch Module with 2 Ampere Input Switching Current 60 Watt Switching Power and 128 Channels

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-2524
Highlight:	2 Ampere Input Switching Current PXI Multiplexer Switch Module , 60 Watt Switching Power PXIe-2524 , 128 Channels National Instruments Switch Module

Boost Your Testing Efficiency with National Instruments PXIe-2524 PXI Multiplexer Switch Module

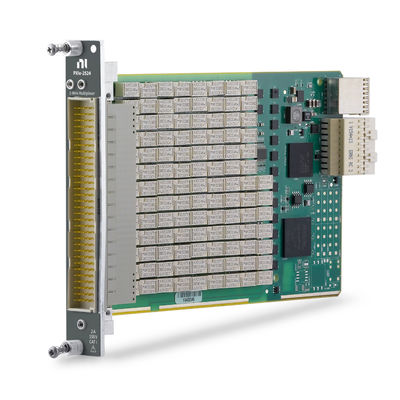

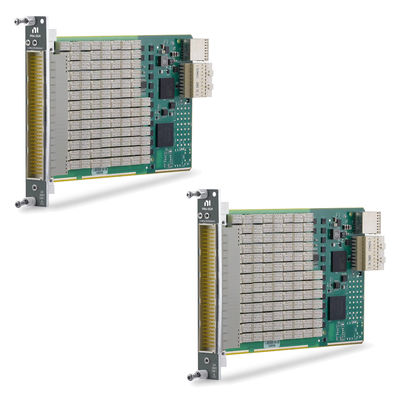

The National Instruments PXIe-2524 PXI Multiplexer Switch Module (Part Number: 780587-24) is a high-density switching solution capable of handling 2A input switching current. With a maximum switching power of 60W or 62.5VA, this module is ideal for signal routing in automated test systems.

Key Features

Multiple 1-wire multiplexer configurations: 16x8x1, 8x16x1, 4x32x1, 2x64x1, and 128x1
Electromagnetic relay switching mechanism
Exceptional RF performance with <10 MHz bandwidth
Low DC path resistance (<0.8Ω) and minimal thermal EMF (<10μV)
Fast relay actuation time (1ms typical, 3.2ms max)
Long mechanical relay life (1×10⁸ cycles)
Compact and portable design (241g, 21.6×2×13cm)

Technical Specifications

Scan Rate

1000 operations/sec

Mode (n-wire)

1-wire

Bus Connector

PXI Express

Max DC Switching Current

2 A

Max DC Switching Voltage

150 V

Relay Type

Electromechanical

Switching Bandwidth

10 MHz

Channel Configurations

128, 16, 32, 64, 8

Group Configurations

1, 16, 2, 4, 8

Front Panel Connectivity

The PXIe-2524 features 160-position DIN 41612 male connectors for comprehensive signal routing capabilities.

Power Requirements

24W at 12V and 3.4W at 3.3V, making it energy efficient for various test system configurations.
