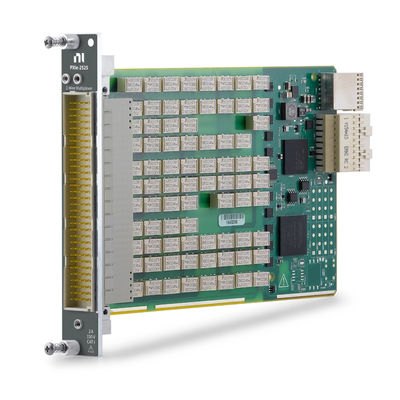

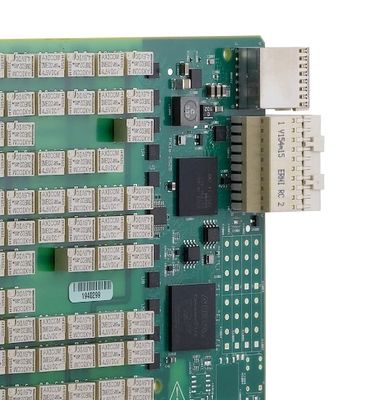

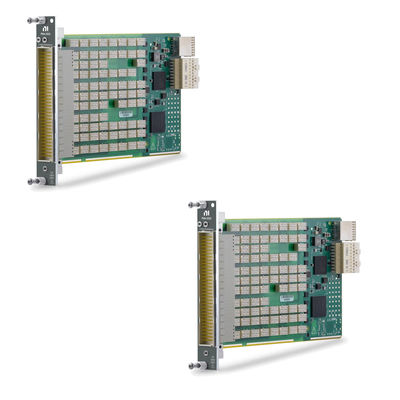

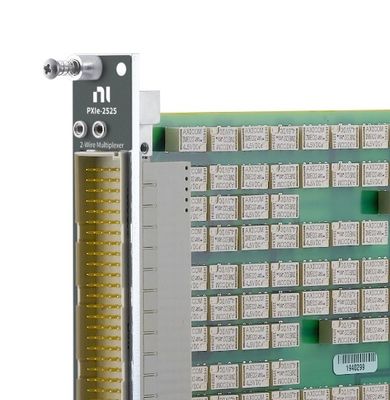

National Instruments PXIe-2525 64-channel PXI Multiplexer Switch Module with 150V Switching Voltage and 10MHz Bandwidth

National Instruments PXIe-2525 64-channel PXI Multiplexer Switch Module with 150V Switching Voltage and 10MHz Bandwidth
National Instruments PXIe-2525 64-channel PXI Multiplexer Switch Module with 150V Switching Voltage and 10MHz Bandwidth National Instruments PXIe-2525 64-channel PXI Multiplexer Switch Module with 150V Switching Voltage and 10MHz Bandwidth National Instruments PXIe-2525 64-channel PXI Multiplexer Switch Module with 150V Switching Voltage and 10MHz Bandwidth National Instruments PXIe-2525 64-channel PXI Multiplexer Switch Module with 150V Switching Voltage and 10MHz Bandwidth

Large Image :  National Instruments PXIe-2525 64-channel PXI Multiplexer Switch Module with 150V Switching Voltage and 10MHz Bandwidth

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-2525
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PXIe-2525 64-channel PXI Multiplexer Switch Module with 150V Switching Voltage and 10MHz Bandwidth

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-2525
Highlight:

64-channel PXI Multiplexer Switch Module

,

150V Switching Voltage PXIe-2525

,

10MHz Bandwidth National Instruments Switch Module

Efficiently Designed National Instruments PXIe-2525 PXI Multiplexer Switch Module
Key Features:
  • 64-channel high-performance multiplexer switch module
  • 2-wire topology with multiple configuration options (4x1, 8x1, 16x1, 32x1, 64x1)
  • Built-in relay counting mechanism for relay monitoring
  • Channel-to-channel maximum switching voltage: 150V
  • CH-COM DC isolation resistance: 1 GΩ (typical at 25°C)
  • RF measurement bandwidth ≤ 10 MHz
  • Field-replaceable electromagnetic relays with palladium-rhodium contacts
National Instruments PXIe-2525 64-channel PXI Multiplexer Switch Module with 150V Switching Voltage and 10MHz Bandwidth 0
Technical Specifications
Parameter Value
Part Number 780587-25
Scan Rate 1000 operations/second
Mode (n-wire) 2-wire
Bus Connector PXI Express
Maximum DC Switching Current 2 A
Maximum DC Switching Voltage 150 V
Relay Type Electromechanical
Switching Bandwidth 10 MHz
Channel Count 16, 32, 4, 64, 8
Group Count 1, 16, 2, 4, 8
Environmental Specifications
Parameter Specification
Operating Temperature -40°C to 71°C
Storage Temperature -40°C to 55°C
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 5% to 95% RH
Operating Vibration 0.3 grms (5-500 Hz)
Non-operating Vibration 2.4 grms (5-500 Hz)
Additional Information
  • Pollution degree: 2 (indoor use only)
  • Compatible with NI-SWITCH driver software
  • Complies with safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, CSA 61010-1
  • Dimensions: 8.5 x 0.8 x 5.1 inches
  • Weight: 8.1 oz
  • Power consumption: 20 W at 12 V, 3.4 W at 3.3 V
