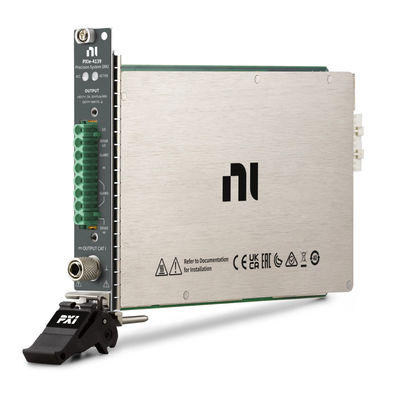

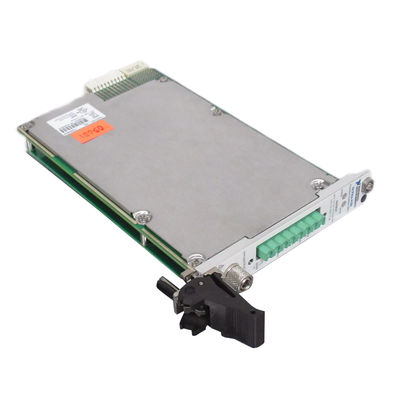

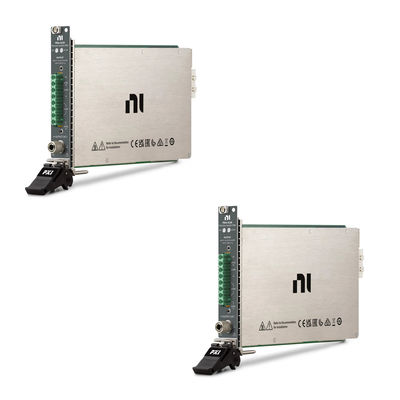

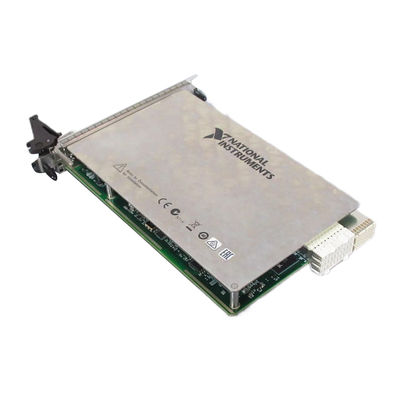

National Instruments PXIe-4139 PXI Source Measure Unit with 100 fA Current Sensitivity and 60 V Voltage Range

Large Image : National Instruments PXIe-4139 PXI Source Measure Unit with 100 fA Current Sensitivity and 60 V Voltage Range

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-4139

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-4139 PXI Source Measure Unit with 100 fA Current Sensitivity and 60 V Voltage Range

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-4139
Highlight:	National Instruments PXIe-4139 PXI Source Measure Unit , 100 fA Current Sensitivity PXI Source Measure Unit , 60 V Voltage Range SMU

Customized OEM Support National Instruments PXIe-4139 PXI Source Measure Unit

Product Overview

The National Instruments PXIe-4139 PXI Source Measure Unit (Part Number: 782856-02) features Guard and Sense ports on the output connector, enabling advanced shielding strategies in wiring and test setups. The Sense port compensates for current-resistance losses in cables and switches when remote sensing is enabled.

Key Features

Precision timing and triggering circuits for synchronized operation with other devices
Sequence engine for deterministic control of source functions
Two sequence operation modes: sequential application or triggered transitions
Advanced SourceAdapt technology for optimal performance

Technical Specifications

Parameter	Value
Current Sensitivity	100 fA
Auxiliary Power Included	-
SMU Channels	1
Voltage Range	-60 V to 60 V
DC Current Range	-3 A to 3 A
Pulse Current Range	-10 A to 10 A
Bus Connector	PXI Express

Sequence Operation

The device supports sequence operation through setpoints - individual output configurations that can be executed sequentially. Sequences can be run either by applying output values one after another (with associated source delays) or through precise triggering for deterministic timing control.

Product Images
