National Instruments PXIe-4147 Source Measure Unit with 4 Channels 1.8 MS/s Sampling Rate and 40 W Pull-Down Capability

Large Image : National Instruments PXIe-4147 Source Measure Unit with 4 Channels 1.8 MS/s Sampling Rate and 40 W Pull-Down Capability

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-4147

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-4147 Source Measure Unit with 4 Channels 1.8 MS/s Sampling Rate and 40 W Pull-Down Capability

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-4147
Highlight:	4 Channels Source Measure Unit , 1.8 MS/s Sampling Rate SMU , 40 W Pull-Down Capability PXIe-4147

Customized OEM Support for National Instruments PXIe-4147 Source Measure Unit

Product Overview

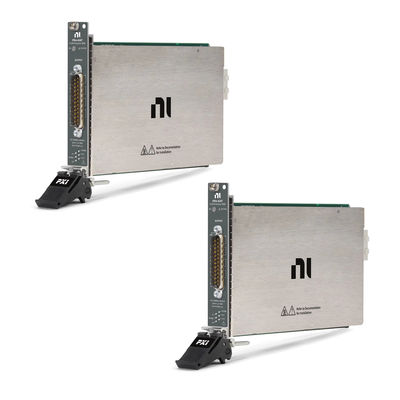

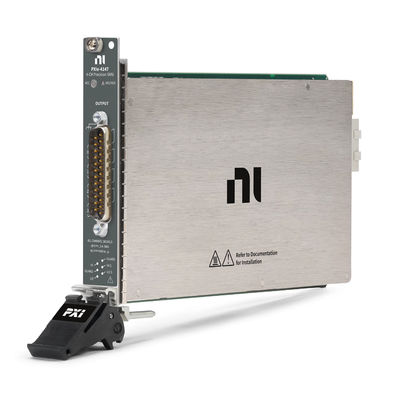

The National Instruments PXIe-4147 Source Measure Unit (Part Number: 786888-01) is a high-performance instrument designed for applications requiring multiple test points. Featuring 4 channels with remote four-wire sensing capability, it delivers exceptional current and voltage measurement accuracy.

Key Features

4-channel configuration with remote four-wire sensing
Nominal sampling rate of (1.8 MS/s)/N for reduced measurement time
SourceAdapt technology for optimized load response with minimal transients
High-speed sequencing engine for easy synchronization with other instruments
Compact PXI Express form factor for space-efficient system integration

Technical Specifications

Parameter	Specification
Current Sensitivity	100 fA
SMU Channels	4
Voltage Range	-8 V to 8 V
DC Current Range	-3 A to 3 A
Max DC Power Sourcing	24 W
Max DC Power Sinking	24 W
Bus Connector	PXI Express

Thermal and Mechanical Specifications

Operating Temperature:

0 °C to 55 °C

Storage Temperature:

-40 °C to 71 °C

Weight:

448 g (15.8 oz) for 20 Wh configuration, 428 g (15.1 oz) for 40 Wh configuration

Dimensions:

2.0 cm × 13.0 cm × 21.6 cm (0.8 in × 5.1 in × 8.5 in)

Power Considerations

The PXIe-4147's power sinking capability depends on the chassis slot cooling capacity:

≥58 W slot cooling: 40 W total power sinking capability
<58 W slot cooling: 15 W total power sinking capability
