National Instruments PXIe-4163 PXI Source Measure Unit with 24 SMU Channels ±24 V DC Voltage Range and 100000 S/s Measurement Speed

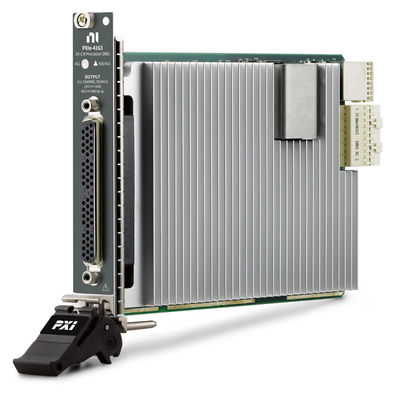

Large Image : National Instruments PXIe-4163 PXI Source Measure Unit with 24 SMU Channels ±24 V DC Voltage Range and 100000 S/s Measurement Speed

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-4163

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-4163 PXI Source Measure Unit with 24 SMU Channels ±24 V DC Voltage Range and 100000 S/s Measurement Speed

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-4163
Highlight:	24 SMU Channels PXI Source Measure Unit , ±24 V DC Voltage Range PXIe-4163 , 100000 S/s Measurement Speed SMU

Customized Support for National Instruments PXIe-4163 PXI Source Measure Unit

The National Instruments PXIe-4163 PXI Source Measure Unit (SMU) is a high-precision instrument designed for semiconductor manufacturing test applications. With 24 identical SMU channels, it delivers four-quadrant operation and integrated remote sensing for accurate measurements.

Key Features

24 identical SMU channels for parallel testing
Four-quadrant operation with ±24V DC voltage range
SourceAdapt technology for optimized transient response
High measurement accuracy (±50 ppm) and speed (100,000 S/s per channel)
Compact 3U, single-slot PXI Express design
Robust construction for industrial environments

Technical Specifications

Parameter	Specification
SMU Channels	24
Voltage Range	-24 V to 24 V
DC Current Range	-50 mA to 50 mA
Maximum DC Source Power	1.2 W
Maximum DC Load Power	0.6 W
Bus Connector	PXI Express

The PXIe-4163 features advanced triggering capabilities including Start, Source, Sequence Advance, and Measure triggers, along with output triggers for synchronization with external equipment. For optimal performance, annual calibration is recommended.

Environmental Specifications

Operating Temperature: 0°C to 55°C
Operational Vibration: 0.3 g RMS
Non-operational Vibration: 2.4 g RMS
