National Instruments PXIe-4305 PXI Analog Input Module with 32 Channels 24-bit ADC and 51.2 kS/s Sampling Rate

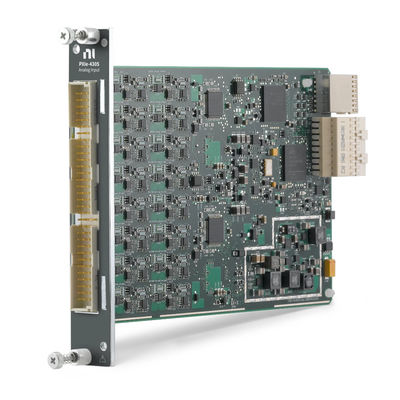

Large Image : National Instruments PXIe-4305 PXI Analog Input Module with 32 Channels 24-bit ADC and 51.2 kS/s Sampling Rate

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-4305

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-4305 PXI Analog Input Module with 32 Channels 24-bit ADC and 51.2 kS/s Sampling Rate

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-4305
Highlight:	32 Channels PXI Analog Input Module , 24-bit ADC PXIe-4305 , 51.2 kS/s Sampling Rate Noise Analyzer

OEM Supported National Instruments PXIe-4305 PXI Analog Input Module

The National Instruments PXIe-4305 PXI Analog Input Module (Part Number: 783868-01) is a high-performance 32-channel module featuring 24-bit ADC resolution with sampling rates ranging from 1 S/s to 51.2 kS/s. Engineered for precision, this module delivers exceptional temperature stability and measurement accuracy.

Key Features

32-channel analog input module with 24-bit resolution
Sampling rate range: 1 S/s to 51.2 kS/s per channel
Gain error: 0.027% | Offset error: 2.2 mV (at 23°C ±5°C)
Built-in 106.25 MHz reference clock (±50 ppm accuracy) for synchronization
Supports four independent timing engines and buffer modes
PXI Express peripheral module compliant with rev 1.0 specification
Standard 1-year calibration interval with 15-minute warm-up recommendation

Technical Specifications

Parameter	Specification
Maximum Sampling Rate	51.2 kS/s per channel
Analog Input Voltage Range	-42 V to +42 V
Maximum Differential Channels	32
Resolution	24-bit
Low-pass Filters	1 kHz, 2 Hz, 2 kHz, 20 Hz, 200 Hz
Filtering	Anti-aliasing

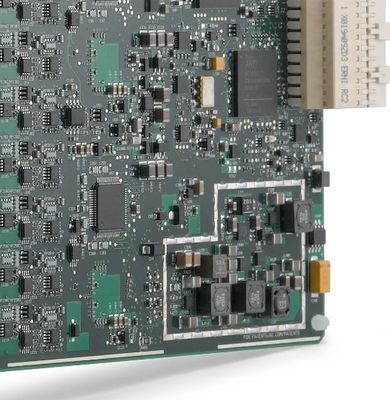

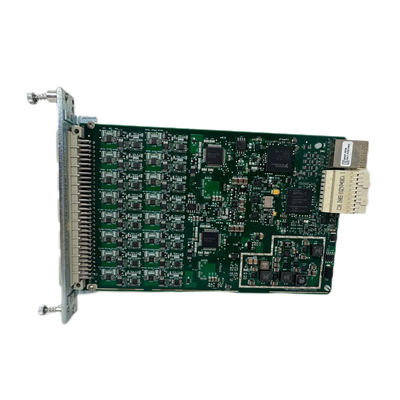

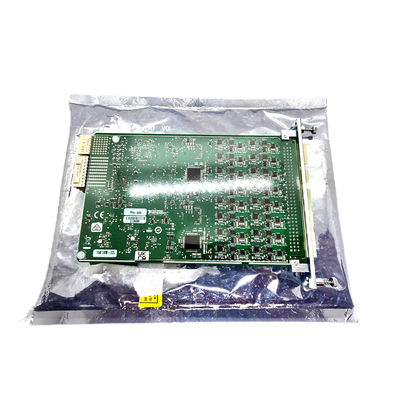

Module Images
