National Instruments PXIe-4331 PXI Strain/Bridge Input Module with 24-bit ADC 102.4 kS/s Sampling Rate and 8 Differential Analog Input Channels

National Instruments PXIe-4331 PXI Strain/Bridge Input Module with 24-bit ADC 102.4 kS/s Sampling Rate and 8 Differential Analog Input Channels
National Instruments PXIe-4331 PXI Strain/Bridge Input Module with 24-bit ADC 102.4 kS/s Sampling Rate and 8 Differential Analog Input Channels National Instruments PXIe-4331 PXI Strain/Bridge Input Module with 24-bit ADC 102.4 kS/s Sampling Rate and 8 Differential Analog Input Channels National Instruments PXIe-4331 PXI Strain/Bridge Input Module with 24-bit ADC 102.4 kS/s Sampling Rate and 8 Differential Analog Input Channels National Instruments PXIe-4331 PXI Strain/Bridge Input Module with 24-bit ADC 102.4 kS/s Sampling Rate and 8 Differential Analog Input Channels

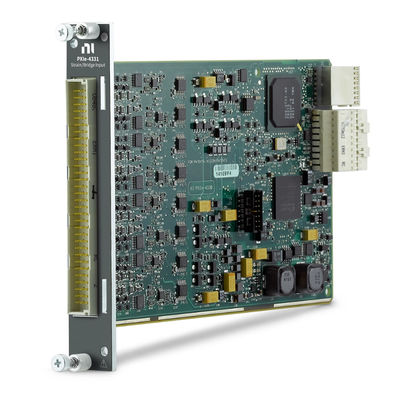

Large Image :  National Instruments PXIe-4331 PXI Strain/Bridge Input Module with 24-bit ADC 102.4 kS/s Sampling Rate and 8 Differential Analog Input Channels

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-4331
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PXIe-4331 PXI Strain/Bridge Input Module with 24-bit ADC 102.4 kS/s Sampling Rate and 8 Differential Analog Input Channels

Description
Warranty: 3 Months Place Of Origin: American
Brand Name: National Instruments Model Number: PXIe-4331
Highlight:

24-bit ADC PXI Strain/Bridge Input Module

,

102.4 kS/s sampling rate PXIe-4331

,

8 differential analog input channels Data Acquisition Module

National Instruments PXIe-4331 PXI Strain/Bridge Input Module
Precision Data Acquisition for Strain and Bridge Measurements

The National Instruments PXIe-4331 is a high-performance PXI strain/bridge input module designed for precise data collection from bridge-based sensors including strain gauges, load cells, and pressure transducers.

Key Features
  • 8-channel differential input with 24-bit ADC resolution
  • High sampling rate of 102.4 kS/s for dynamic measurements
  • Integrated signal conditioning simplifies setup and reduces component count
  • Independently programmable excitation voltage (0.6V to 10V) per channel
  • Advanced filtering with anti-aliasing and digital filters for noise reduction
  • Multiple bridge configurations: quarter, half, and full bridge
  • Compatible with NI TB-4330 terminal block for screw terminal connections
Technical Specifications
Analog Input Voltage Range -100 mV/V to 100 mV/V, -25 mV/V to 25 mV/V
Maximum Sampling Rate 102.4 kS/s
Channel Count 8 differential analog input channels
Bridge Configurations Quarter bridge, Half bridge, Full bridge
Bridge Resistance 1000 Ω, 120 Ω, 350 Ω
The PXIe-4331 measures bridge output voltage as a ratio to excitation voltage, eliminating dependence on excitation voltage stability and precision. This innovative approach ensures consistent, reliable measurements.
Applications

Ideal for dynamic strain, load, and pressure measurements in high-density test systems requiring precision, high throughput, and synchronization capabilities.
