Compact PXIe-5105 PXI Oscilloscope 60MS/S Sampling Rate 12 Bit Resolution 8V Input Channels

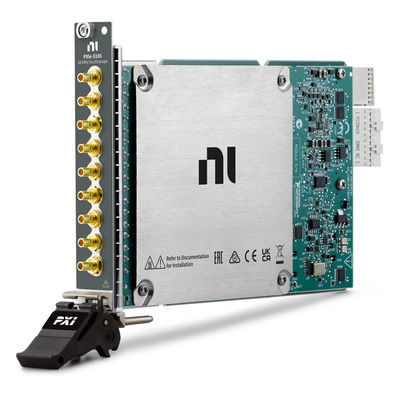

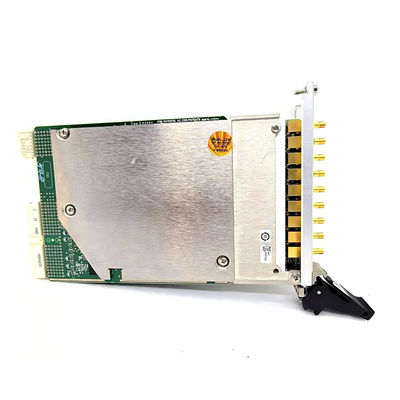

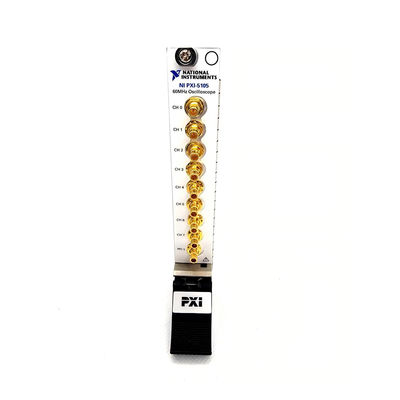

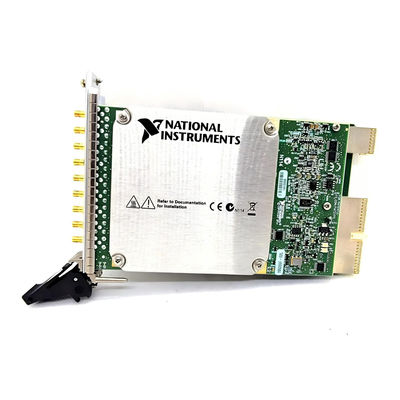

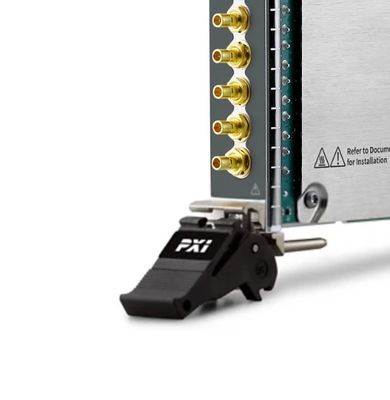

The National Instruments PXIe-5105 (Part Numbers: 783590-01, 783590-02, 783590-03) is a high-performance digitizer featuring eight 60 MS/s simultaneously sampled voltage input channels with 12-bit resolution, 60 MHz bandwidth capacity, and up to 512 MB of onboard memory in a compact 3U PXI/PXI Express form factor.

• Eight 60 MS/s, 12-bit input channels with 60 MHz bandwidth
• National Instruments Synchronization and Memory Core (SMC) technology enables synchronization of multiple devices for up to 136 phase-coherent channels
• Independent channel-selectable input ranges (50 mVpp to 30 Vpp) and impedance (50 Ω or 1 MΩ)
• 72 dBc spurious free dynamic range (SFDR)
• Configurable memory options: 16 MB, 128 MB, or 512 MB
• Advanced triggering capabilities for capturing over 1 million waveforms
• Continuous data streaming from onboard memory to host memory or disk

Ideal for demanding applications including:

• Ultrasonic nondestructive testing (NDT)
• Medical imaging systems
• Scientific research instrumentation
• Avionics testing
• Consumer electronics validation

The PXIe-5105 is operated using NI-SCOPE driver software, compatible with:

• LabVIEW
• LabWindows/CVI
• Measurement Studio
• Microsoft Visual C/C++
• .NET (C# and VB.NET)

Hardware configuration is managed through the Measurement & Automation Explorer (MAX) tool. Recommended warm-up time is 15 minutes with calibration required every two years.
