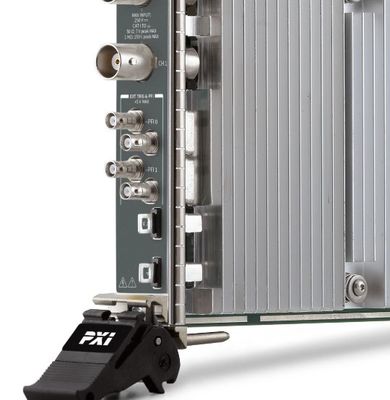

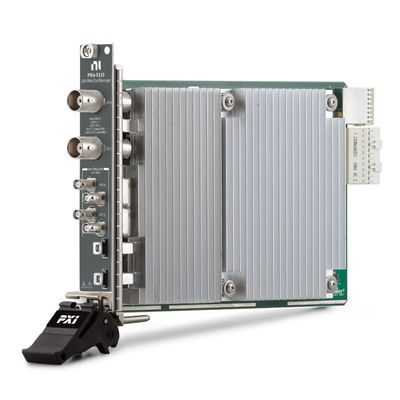

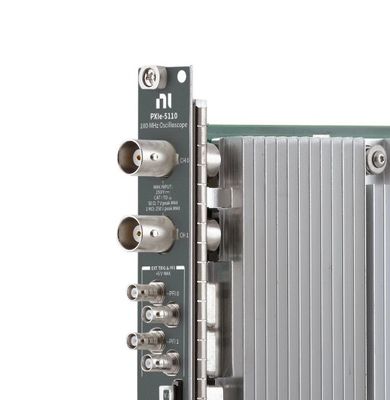

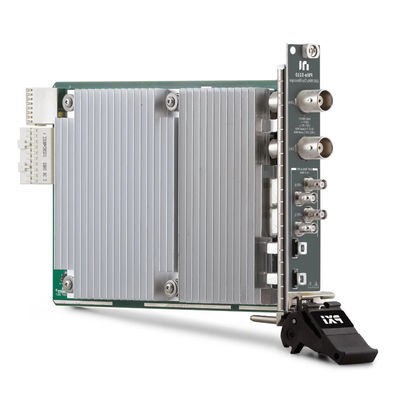

National Instruments PXIe-5110 PXI Oscilloscope 100MHz Bandwidth 1GS/S Sampling Rate 2V Channels

National Instruments PXIe-5110 PXI Oscilloscope 100MHz Bandwidth 1GS/S Sampling Rate 2V Channels
National Instruments PXIe-5110 PXI Oscilloscope 100MHz Bandwidth 1GS/S Sampling Rate 2V Channels National Instruments PXIe-5110 PXI Oscilloscope 100MHz Bandwidth 1GS/S Sampling Rate 2V Channels National Instruments PXIe-5110 PXI Oscilloscope 100MHz Bandwidth 1GS/S Sampling Rate 2V Channels National Instruments PXIe-5110 PXI Oscilloscope 100MHz Bandwidth 1GS/S Sampling Rate 2V Channels

Large Image :  National Instruments PXIe-5110 PXI Oscilloscope 100MHz Bandwidth 1GS/S Sampling Rate 2V Channels

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-5110
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PXIe-5110 PXI Oscilloscope 100MHz Bandwidth 1GS/S Sampling Rate 2V Channels

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-5110
Highlight:

National Instruments PXIe-5110

,

100MHz Bandwidth ni pxi oscilloscope

,

100MHz Bandwidth PXIe-5110

OEM Supported National Instruments PXIe-5110 PXI Oscilloscope with Customized Assistance
The National Instruments PXIe-5110 PXI Oscilloscope is a high-performance measurement instrument designed for PXIe bus connectivity. This versatile oscilloscope offers exceptional signal acquisition capabilities for automated test applications.
Product Overview
  • Available in four part numbers (785767-01, 785767-11, 785768-01, and 785768-11) with varying configurations
  • Features 64 MB or 512 MB onboard memory options
  • Some versions include advanced CableSense technology
  • Compatible with NI-SCOPE driver software for seamless integration
  • Supports multiple development environments including LabWindows/CVI, Measurement Studio, MS-Visual C/C++, LabVIEW, and .NET
Key Specifications
Bus Connector PXI Express
Analog Input Impedance 1 MΩ, 50 Ω
Maximum Bandwidth 100 MHz
Maximum Sample Rate 1 GS/s
Analog Input Voltage Range -20 V to 20 V
Analog Input Resolution 8-bit
FPGA Not included
Voltage Input Channels 2
Advanced Features
  • Supports both AC and DC input coupling
  • Multiple trigger modes for precise signal capture
  • Ideal for automated and semi-automated test applications
  • Enables advanced synchronization of PXI modules
  • High data throughput capabilities
National Instruments PXIe-5110 PXI Oscilloscope 100MHz Bandwidth 1GS/S Sampling Rate 2V Channels 0
