National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution

National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution
National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution

Large Image :  National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-5162
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-5162
Highlight:

National Instruments PXIe-5162

,

PXIe-5162 Digital Oscilloscope

,

compact Digital Oscilloscope

Customized National Instruments PXIe-5162 Oscilloscope/Digitizer
The National Instruments PXIe-5162 Oscilloscope/Digitizer delivers exceptional performance in a compact, low-profile PXI platform. This versatile instrument is ideal for a wide range of test and measurement applications, offering high-speed data acquisition with flexible channel configurations.
Key Features
  • Four input channels with 5 GS/s sampling rate (50Ω path) or 300 MHz bandwidth (1 MΩ path)
  • Flexible channel configurations: 2 channels at 2.5 GS/s or 4 channels at 1.25 GS/s
  • High-speed data transfer capability with 1.5 GHz bandwidth
  • Generous onboard memory for handling large datasets
  • PCI Express x4 Gen 1 interface for PXI Express backplane connectivity
  • NI-TClk API synchronization for multi-channel operation with 100 ps inter-module delay
  • Compatible with all NI PXI digitizers, arbitrary waveform generators, and high-speed digital I/O modules
  • High data throughput exceeding 600 MB/s per module
Technical Specifications
Bus Connector PXI Express
Analog Input Impedance 1 MΩ, 50 Ω
Maximum Bandwidth 1.5 GHz
Maximum Sampling Rate 5 GS/s
Analog Input Voltage Range -25 V to 25 V
Analog Input Resolution 10-bit
Product Images

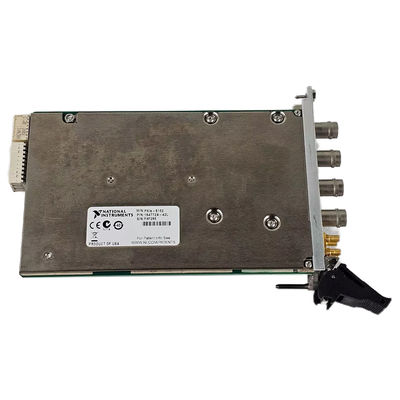

National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution 0

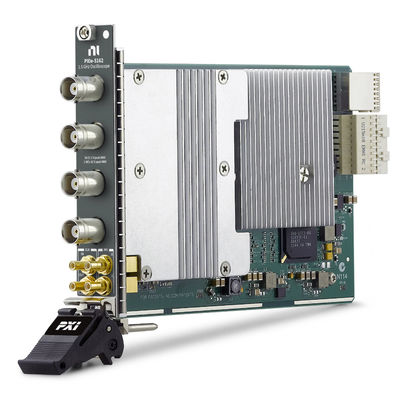

National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution 1

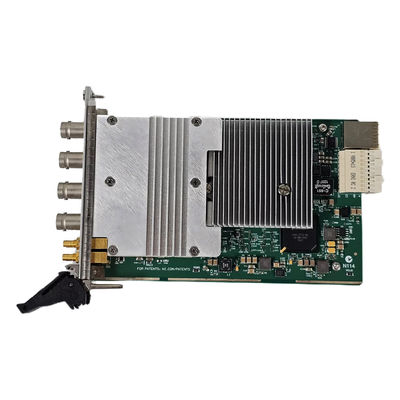

National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution 2

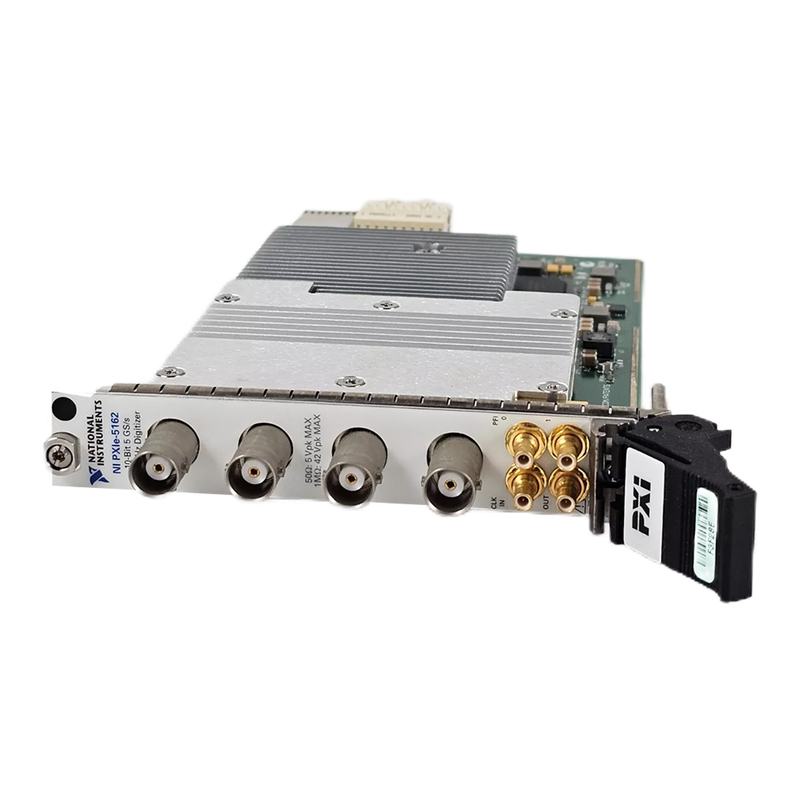

National Instruments PXIe-5162 Digital Oscilloscope Compact 1.5GHz Bandwidth 10 Bit Resolution 3
The PXIe-5162 is a fully programmable instrument offering exceptional flexibility for both time-domain and frequency-domain measurements, while leveraging all the advantages of the PXI platform. Its compact form factor and high performance make it an excellent choice for automated test systems and research applications.
