National Instruments High Density Oscilloscope PXIe-5170 With 8 Simultaneous Channels

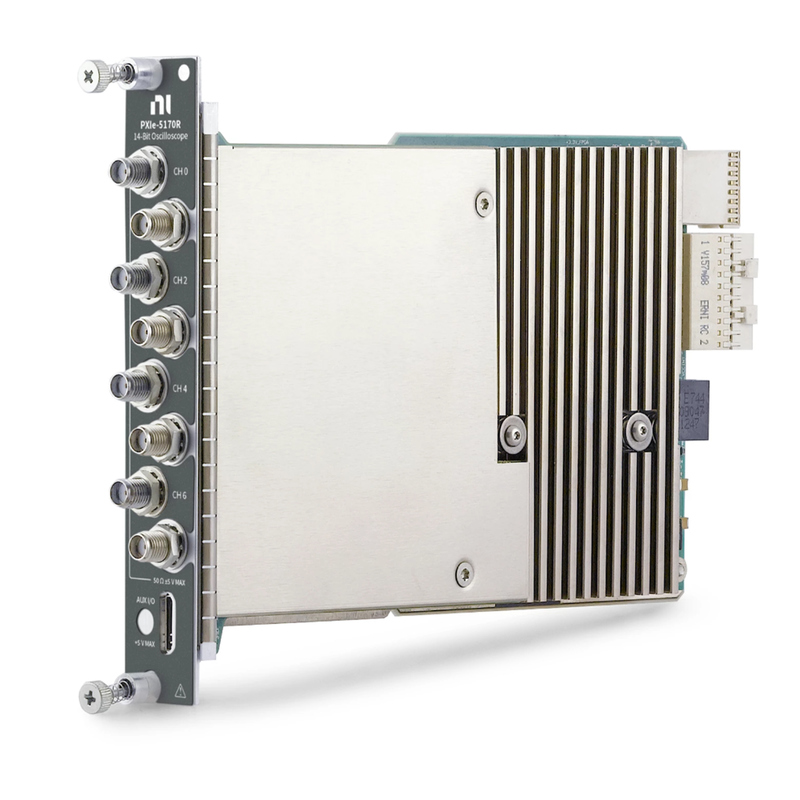

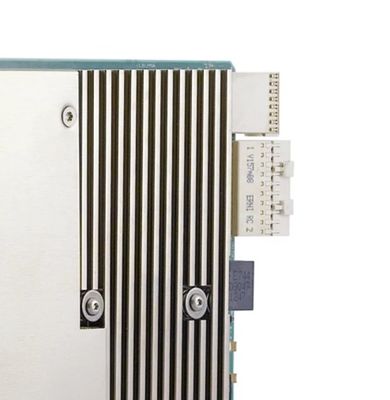

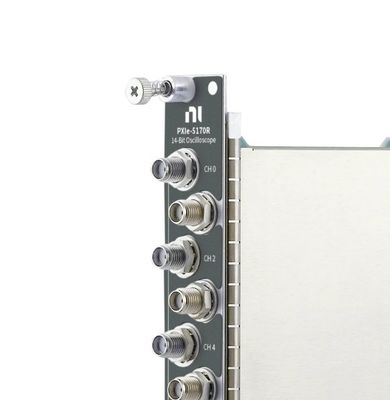

The National Instruments PXIe-5170 High-Density Oscilloscope (Part Numbers: 783690-01 and 783691-01) is a versatile instrument featuring eight simultaneously sampled channels with flexible configuration options for coupling and voltage range adjustment.

The reconfigurable oscilloscope includes a customer-programmable FPGA for real-time signal processing, protocol decoding, and advanced triggering schemes with zero dead time. Users can program the FPGA using LabVIEW or HDL for custom signal processing and inspection functions.

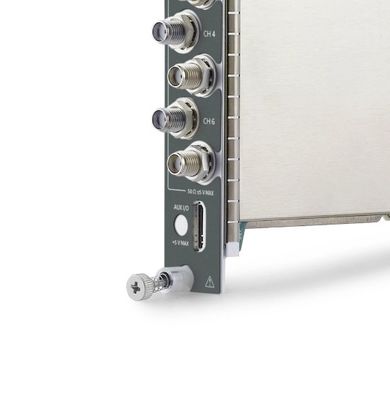

The eight programmable digital I/O lines support triggering, timing signals, and communication with other devices using protocols such as I2C, SPI, or custom communication schemes.
