National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth

National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth
National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth

Large Image :  National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-5624
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-5624
Highlight:

National Instruments PXIe-5624

,

PXIe-5624 PXI IF Digitizer

,

800MHz Bandwidth PXI IF Digitizer

Customized OEM Support National Instruments PXIe-5624 PXI IF Digitizer
High-Performance RF Digitizer for OEM Integration
The National Instruments PXIe-5624 PXI IF Digitizer delivers exceptional performance with 2 GS/s sampling rate and 12-bit resolution, supporting I/Q rates up to 1 GS/s with bandwidth up to 800 MHz. This high-precision instrument features an input frequency range from 5 MHz to 2 GHz, with outstanding resolution capabilities.
Key Features
  • 2 GS/s sampling rate with 12-bit resolution
  • 800 MHz bandwidth capability
  • 1 GS/s maximum I/Q rate
  • Frequency range: 5 MHz to 2 GHz
  • 3.56 μHz bandwidth resolution
  • 7.13 μHz frequency offset resolution
  • 50 Ω nominal input impedance with AC coupling
  • 20 dBm maximum input power
  • 2 GB onboard DRAM with 6.4 GB/s data transfer rate
  • 2 GB onboard SRAM with 26 MB/s read and 20 MB/s write rates
Technical Specifications
Specification Value
Input Impedance 50 Ω
IF Digitizer Channels 1
Maximum IF Bandwidth 2 GHz
IF Digitizer Resolution 12-bit
Onboard Memory 2 GB
Sampling Rate 2 GS/s
Spur-free Frequency Range -72 dBc
Environmental Specifications
  • Operating random vibration: 5 Hz to 500 Hz at 0.3 grms
  • Non-operating random vibration: 5 Hz to 500 Hz at 2.4 grms
Product Images

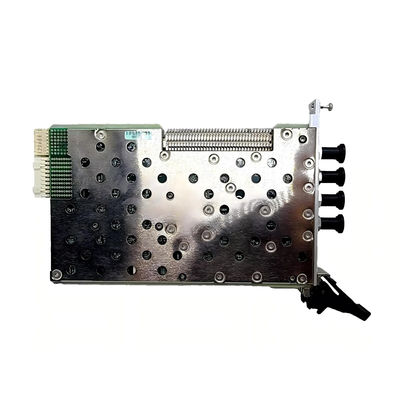

National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth 0

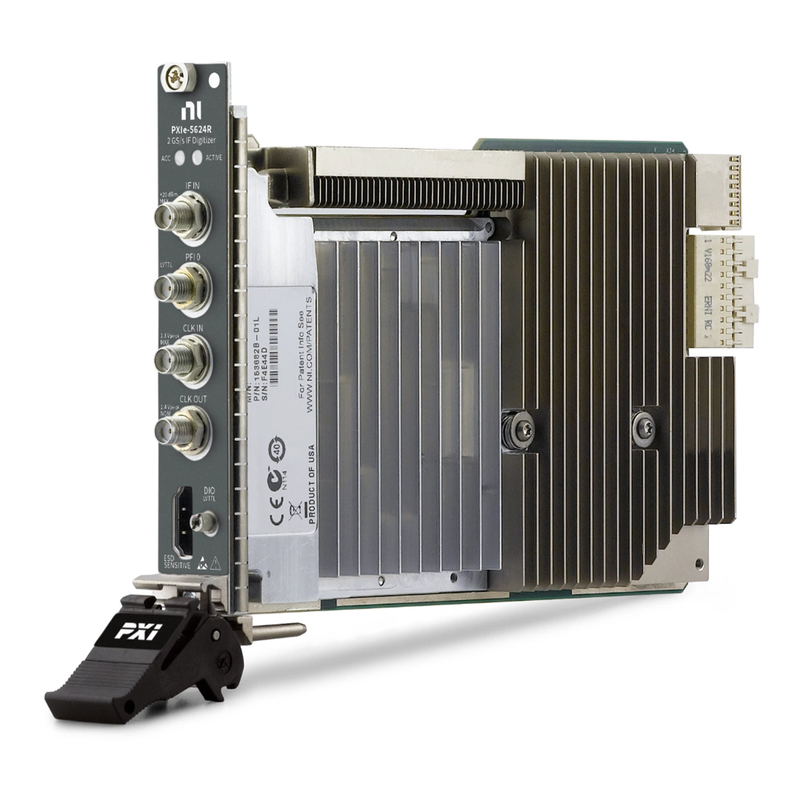

National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth 1

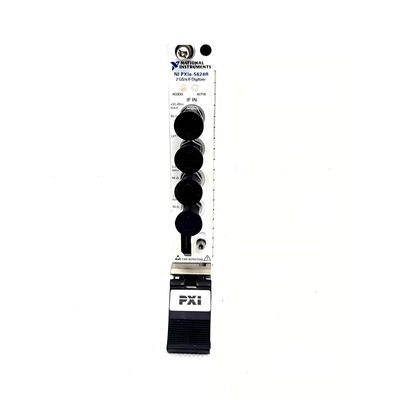

National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth 2

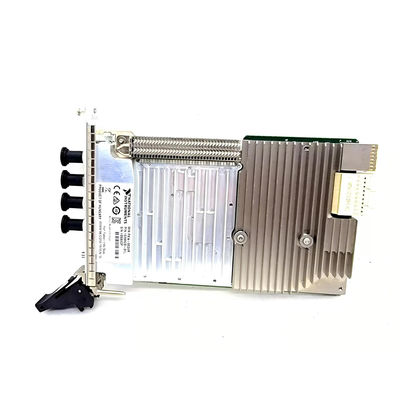

National Instruments PXIe-5624 PXI IF Digitizer 12 Bit Resolution 800MHz Bandwidth 3
