Customized OEM Support PXI FlexRIO Digitizer with 2 Voltage Input Channels 4 GB DRAM and 3 Months Warranty

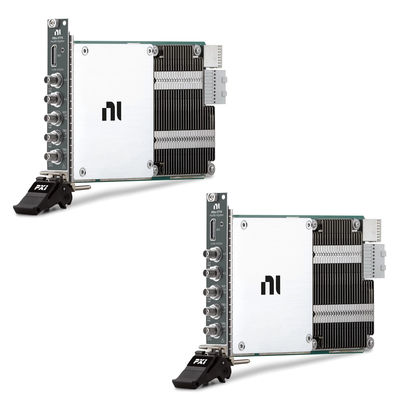

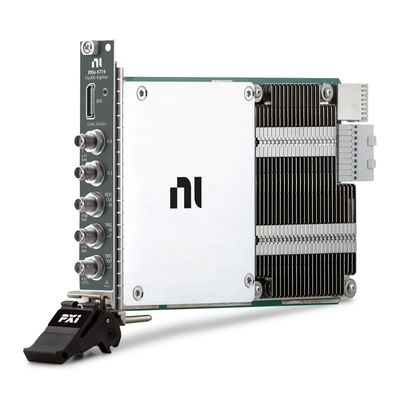

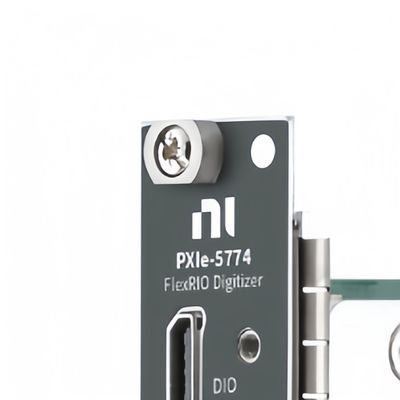

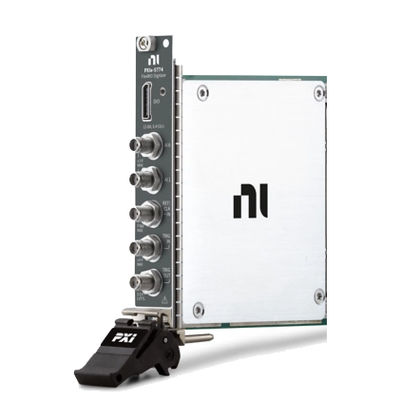

Large Image : Customized OEM Support PXI FlexRIO Digitizer with 2 Voltage Input Channels 4 GB DRAM and 3 Months Warranty

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-5774

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

Customized OEM Support PXI FlexRIO Digitizer with 2 Voltage Input Channels 4 GB DRAM and 3 Months Warranty

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-5774
Highlight:	2 Voltage Input Channels PXI FlexRIO Digitizer , 4 GB DRAM FlexRIO Digitizer , 3 Months Warranty PXIe-5774 Digitizer

Customized OEM Support National Instruments PXIe-5774 PXI FlexRIO Digitizer for Advanced Applications

The PXIe-5774 is a high-performance PXI FlexRIO Digitizer from National Instruments, designed for applications requiring real-time signal processing. Available in six versions with different analog input bandwidths and FPGA configurations.

Key Features:

12-bit resolution with 2 voltage input channels
DC analog input coupling
Configurable voltage ranges (200 mVpp and 1 Vpp)
Selectable DC offset for voltage ranges
Dual operating modes (dual-channel and single-channel)
Molex Nano-Pitch connector for I/O signals
4 GB DRAM for data storage

Technical Specifications:

Specification	Value
Analog Input Coupling	DC
DRAM	4 GB
Maximum Sampling Rate	6.4 GS/s
Analog Input Resolution	12-bit
Voltage Input Channels	2

Applications:

The PXIe-5774 FlexRIO Digitizer is ideal for demanding applications including medical imaging, particle physics, scientific instrumentation, and other advanced signal processing tasks.

Product Variants:

Available in six versions with part numbers: 785646-01, 785647-01, 785646-02, 785647-02, 785647-11, and 785647-12. Variants differ in analog input bandwidth (1.6 GHz or 3 GHz) and FPGA configuration (Kintex UltraScale KU040 or KU060).
