National Instruments PXIe-6345 PXI Multifunction I/O Module with 40 Differential Channels 500 kS/s Sampling Rate and 16-bit ADC Resolution

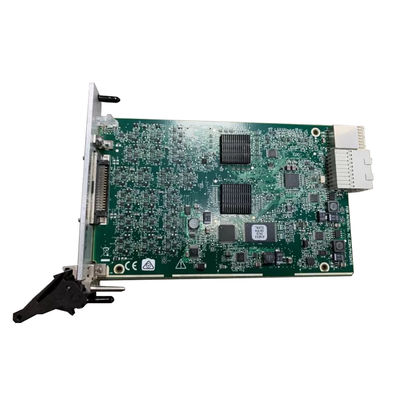

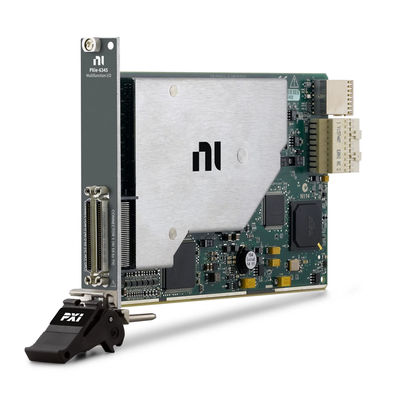

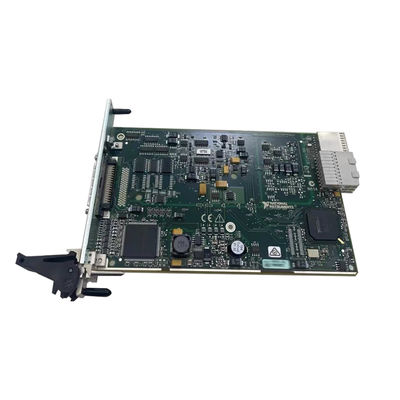

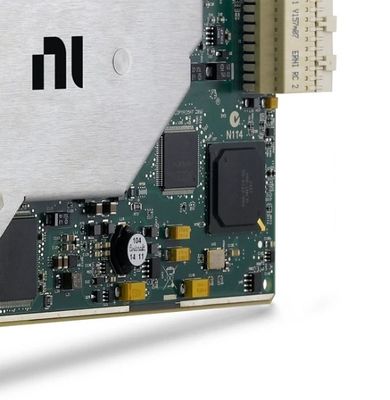

Large Image : National Instruments PXIe-6345 PXI Multifunction I/O Module with 40 Differential Channels 500 kS/s Sampling Rate and 16-bit ADC Resolution

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-6345

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-6345 PXI Multifunction I/O Module with 40 Differential Channels 500 kS/s Sampling Rate and 16-bit ADC Resolution

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-6345
Highlight:	40 Differential Channels PXI Multifunction I/O Module , 500 kS/s Sampling Rate PXIe-6345 , 16-bit ADC Resolution National Instruments I/O Module

Customizable National Instruments PXIe-6345 PXI Multifunction I/O Module with OEM Support

The National Instruments PXIe-6345 is a high-performance PXI multifunction I/O module designed for industrial applications requiring precision measurement and control.

Key Features

40 differential or 80 single-ended analog input channels
16-bit ADC resolution with 500 kS/s maximum sampling rate
10 ns timing resolution with 50 ppm timing accuracy
DC-coupled input scheme with four 32-bit counters
Advanced timing and synchronization with NI-STC3 technology
Analog trigger functionality (16-bit resolution)
Compact design weighing only 198 grams

Technical Specifications

Part Numbers	783631-01, 156605B-04L, 256605B-04L
Analog Input	40 differential / 80 single-ended channels
ADC Resolution	16-bit
Sampling Rate	500 kS/s (single and multi-channel)
Timing Resolution	10 ns
Timing Accuracy	50 ppm
Counters	Four 32-bit counters
Weight	198 g

Advanced Functionality

The PXIe-6345 module integrates NI-STC3 technology for superior timing and synchronization capabilities. It features both analog and digital timing engines, along with versatile analog trigger options including edge triggering and window triggering with hysteresis support.

Applications

Ideal for automated test systems, data acquisition, and industrial control applications requiring high-speed, high-precision measurements and flexible I/O configurations.
