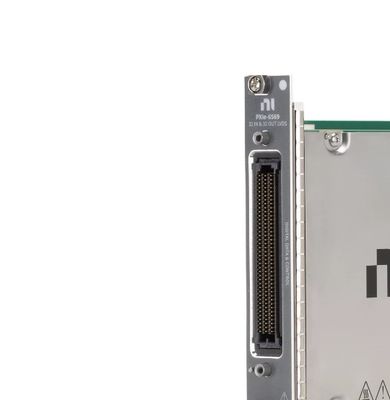

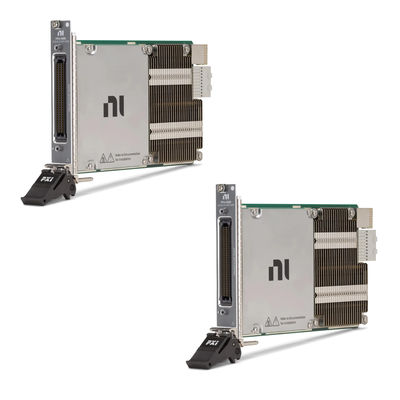

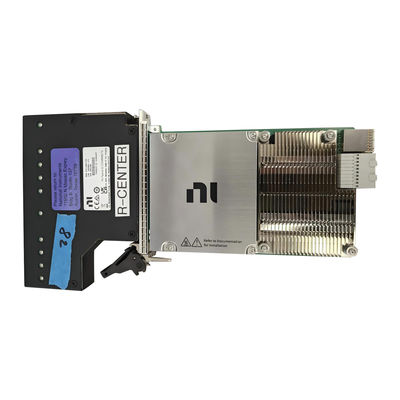

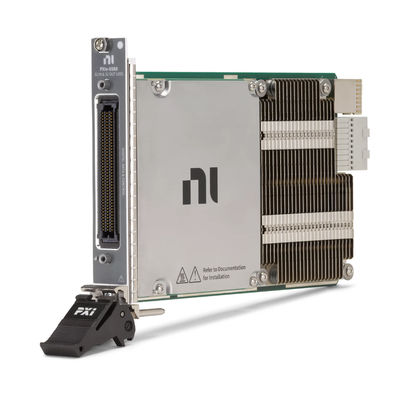

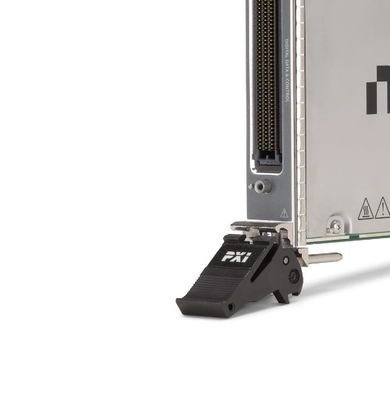

National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module with 1.25 Gbit/s Speed 64 LVDS Channels and 8 Bidirectional Single-Ended Channels

National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module with 1.25 Gbit/s Speed 64 LVDS Channels and 8 Bidirectional Single-Ended Channels
National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module with 1.25 Gbit/s Speed 64 LVDS Channels and 8 Bidirectional Single-Ended Channels National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module with 1.25 Gbit/s Speed 64 LVDS Channels and 8 Bidirectional Single-Ended Channels National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module with 1.25 Gbit/s Speed 64 LVDS Channels and 8 Bidirectional Single-Ended Channels National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module with 1.25 Gbit/s Speed 64 LVDS Channels and 8 Bidirectional Single-Ended Channels National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module with 1.25 Gbit/s Speed 64 LVDS Channels and 8 Bidirectional Single-Ended Channels

Large Image :  National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module with 1.25 Gbit/s Speed 64 LVDS Channels and 8 Bidirectional Single-Ended Channels

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-6569
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module with 1.25 Gbit/s Speed 64 LVDS Channels and 8 Bidirectional Single-Ended Channels

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-6569
Highlight:

1.25 Gbit/s PXI FlexRIO Digital I/O Module

,

64 LVDS Channels FlexRIO Module

,

8 Bidirectional Single-Ended Channels Digital I/O Module

Customized Support and OEM Compatibility National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module
The National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module is a high-performance solution designed for diverse interface and application requirements. Featuring a user-programmable FPGA, this module delivers exceptional flexibility to meet various technical demands, making it an invaluable tool for engineers and researchers.
Key Features
  • 1.25 Gbit/s digital I/O capability
  • 64 Low-Voltage Differential Signal (LVDS) channels
  • 8 bidirectional single-ended channels
  • User-programmable FPGA for custom interface configuration
  • SAMTEC SEARAY™ connectors for reliable connections
  • Optimized signal integrity for high-speed digital communication
FPGA Configuration Options
The PXIe-6569 features six different part numbers with variations in channel types, quantities, and FPGA boards:
FPGA Type Part Number Configuration
KU035 FPGA 787280-01 32 input/32 output LVDS
787284-01 64 output LVDS
787285-01 64 input LVDS
KU060 FPGA 787281-01 64 output LVDS
787282-01 64 input LVDS
787283-01 32 input/32 output LVDS
Memory Specifications
The PXIe-6569 features substantial onboard DRAM to handle data-intensive tasks:
  • KU035 FPGA: 2GB memory (2 banks of 1GB each)
  • KU060 FPGA: 4GB memory (2 banks of 2GB each)
  • 1064 MHz clock rate
  • 32-bit physical bus width
National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module with 1.25 Gbit/s Speed 64 LVDS Channels and 8 Bidirectional Single-Ended Channels 0 National Instruments PXIe-6569 PXI FlexRIO Digital I/O Module with 1.25 Gbit/s Speed 64 LVDS Channels and 8 Bidirectional Single-Ended Channels 1
