Customizable National Instruments PXIe-7915 PXI FlexRIO Coprocessor Module with Kintex UltraScale KU060 FPGA and 60 DMA Channels

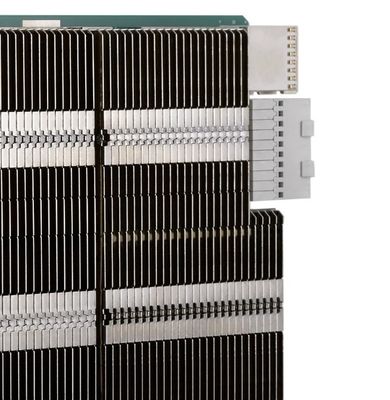

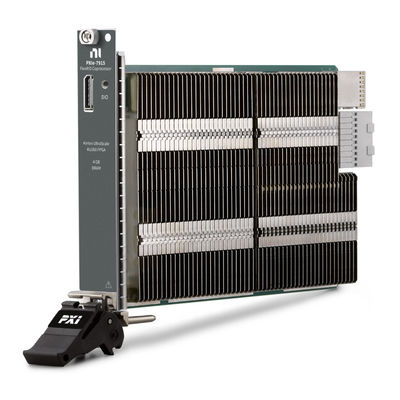

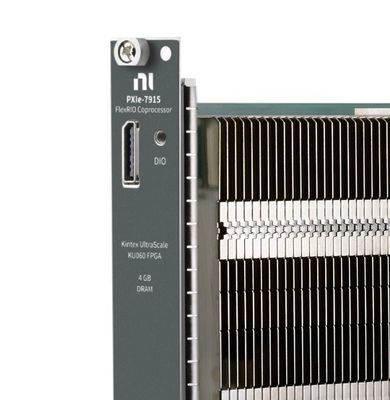

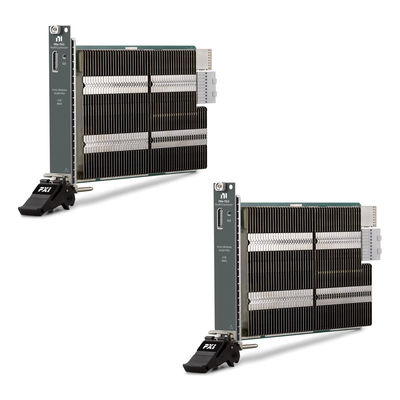

Large Image : Customizable National Instruments PXIe-7915 PXI FlexRIO Coprocessor Module with Kintex UltraScale KU060 FPGA and 60 DMA Channels

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-7915

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

Customizable National Instruments PXIe-7915 PXI FlexRIO Coprocessor Module with Kintex UltraScale KU060 FPGA and 60 DMA Channels

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-7915
Highlight:	Kintex UltraScale KU060 FPGA PXI FlexRIO Coprocessor Module , 60 DMA Channels PXIe-7915 , 4GB DRAM FlexRIO Module

Customizable National Instruments PXIe-7915 PXI FlexRIO Coprocessor Module for Advanced Applications

The PXIe-7915 is a high-performance PXI FlexRIO Coprocessor Module manufactured by National Instruments (part number 785174-01). This advanced module features a Kintex UltraScale KU060 FPGA with extensive processing capabilities, designed for demanding signal-processing applications.

Key Features

Xilinx Kintex UltraScale KU060 FPGA with 82,920 slices and 2,760 DSP slices
4GB DRAM memory with 32-bit physical bus width
60 DMA channels for high-speed data transfer
8-channel configuration (4 transmitter, 4 receiver channels)
Data rate range from 500 Mbps to 16.375 Gbps
Programmable with Xilinx Vivado and LabVIEW software

Technical Specifications

FPGA: Kintex UltraScale KU060

FPGA Slices: 82,920

DSP Slices: 2,760

Block RAM (BRAM): 38 Mbit

DRAM: 4 GB

PXI Backplane: PCI-Express Gen3 x8

Default Timebase: 80 MHz

Onboard Clock: 1064 MHz

Electrical Characteristics

Parameter	Value
Operating Voltage	3.3 V and 12 V
Current Consumption	3 A
Input Resistance	100 Ω differential nominal
Coupling	DC-coupled for receivers, AC-coupled for transmitters

I/O Configuration

4 high-speed signals
8 general-purpose input/output (GPIO)
