Customized OEM Support National Instruments PXIe-8521 100BASE-T1 UTP PXI Automotive Ethernet Interface Module with 4 Ports and 802.1AS Master/Slave

Customized OEM Support National Instruments PXIe-8521 100BASE-T1 UTP PXI Automotive Ethernet Interface Module with 4 Ports and 802.1AS Master/Slave
Customized OEM Support National Instruments PXIe-8521 100BASE-T1 UTP PXI Automotive Ethernet Interface Module with 4 Ports and 802.1AS Master/Slave Customized OEM Support National Instruments PXIe-8521 100BASE-T1 UTP PXI Automotive Ethernet Interface Module with 4 Ports and 802.1AS Master/Slave Customized OEM Support National Instruments PXIe-8521 100BASE-T1 UTP PXI Automotive Ethernet Interface Module with 4 Ports and 802.1AS Master/Slave Customized OEM Support National Instruments PXIe-8521 100BASE-T1 UTP PXI Automotive Ethernet Interface Module with 4 Ports and 802.1AS Master/Slave

Large Image :  Customized OEM Support National Instruments PXIe-8521 100BASE-T1 UTP PXI Automotive Ethernet Interface Module with 4 Ports and 802.1AS Master/Slave

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXIe-8521
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

Customized OEM Support National Instruments PXIe-8521 100BASE-T1 UTP PXI Automotive Ethernet Interface Module with 4 Ports and 802.1AS Master/Slave

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXIe-8521
Highlight:

100BASE-T1 UTP PXI Automotive Ethernet Interface Module

,

4 Ports PXIe-8521 Module

,

802.1AS Master/Slave Automotive Ethernet Interface Device

Customized OEM Support National Instruments PXIe-8521 PXI Automotive Ethernet Interface Module

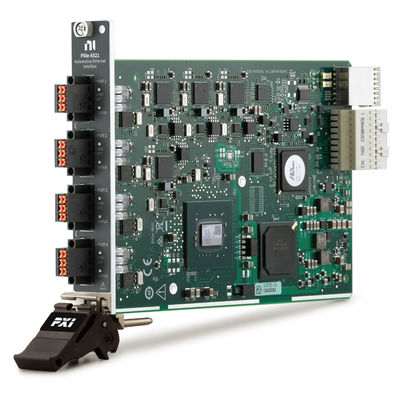

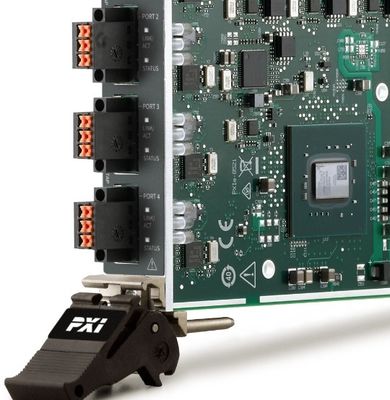

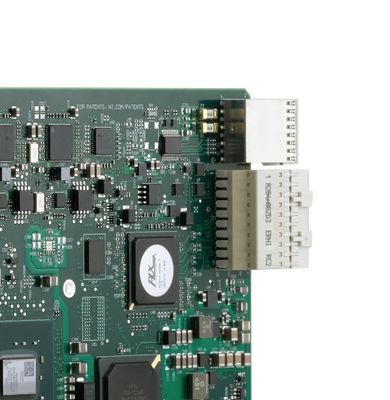

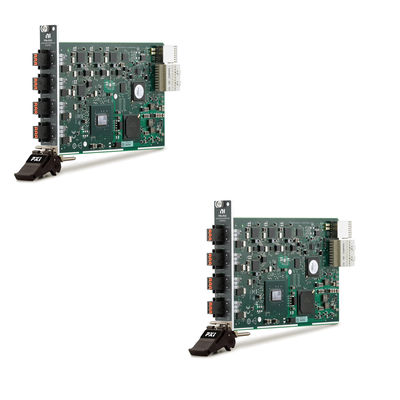

The National Instruments PXIe-8521 is a high-performance PXI Automotive Ethernet Interface Module designed for advanced automotive testing applications.
Product Overview
The PXIe-8521 (Part Numbers: 786771-01, 147673B-02L) is a PXI Express automotive Ethernet interface module developed by National Instruments. This Gen 2 x4 PXI Express module features four ports and supports 100BASE-T1 unshielded twisted pair (UTP) connections.
Customized OEM Support National Instruments PXIe-8521 100BASE-T1 UTP PXI Automotive Ethernet Interface Module with 4 Ports and 802.1AS Master/Slave 0
Key Features
  • Four-port 100BASE-T1 automotive Ethernet interface
  • Supports development and validation of automotive electronic control units (ECUs)
  • Onboard hardware timestamping capability
  • Front panel LED indicators for network monitoring
  • Can function as four separate 802.1AS master or slave devices
  • Low network sniffer latency of 1.73 μs
  • Includes Weidmuller BLF 3.50, 3-position I/O connector
  • Compatible with NI-XNET driver software
Technical Specifications
Interface Type PXI Express (Gen 2 x4)
Ethernet Standard 100BASE-T1 (Automotive Ethernet)
Number of Ports 4 independent endpoints
Network Support Up to 2 network terminal access points
Synchronization 802.1AS master/slave capability
Latency 1.73 μs network sniffer latency
Connector Weidmuller BLF 3.50, 3-position I/O
Applications
The PXIe-8521 is ideal for developing applications involving automotive Ethernet, particularly for verifying and evaluating automotive electronic control units (ECUs). Its synchronization capabilities make it suitable for integration with external networks and PXI systems.
