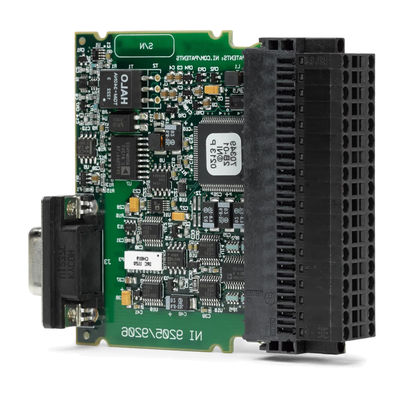

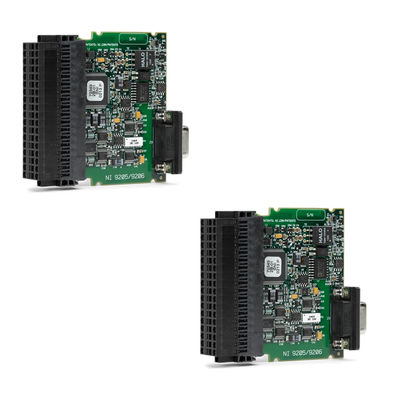

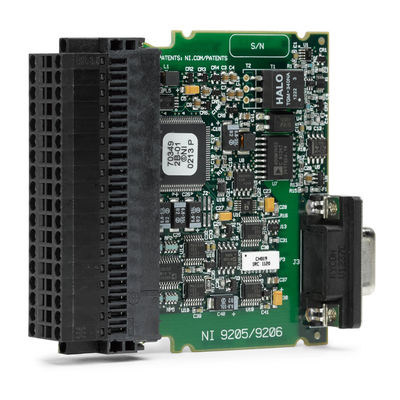

National Instruments SbRIO-9205 C Series Voltage Input Module with 4 Programmable Voltage Ranges 16-bit ADC Resolution and 32 Single-Ended Channels

The National Instruments sbRIO-9205 is a C Series analog voltage input module designed for versatile industrial applications. This OEM-supported module delivers high-performance signal acquisition with flexible configuration options.

• 4 programmable analog input voltage ranges: ±10V, ±5V, ±1V, and ±0.2V
• 16-bit ADC resolution with 250 kS/s total sampling rate
• 32 single-ended or 16 differential analog input channels
• Spring terminal front connection for secure wiring
• Dual isolation barrier (250 Vrms channel-to-ground)
• ±30 VDC overvoltage protection between channels and COM
• Low-power sleep mode (15 mW) for energy efficiency

The sbRIO-9205 module incorporates robust protection mechanisms including ±30 VDC overvoltage protection and dual isolation barriers. These features enable reliable operation in high-noise environments and protect against voltage transients while providing effective noise cancellation during operation.

The module supports two power-efficient operation modes: Active mode (625 mW power consumption) for full performance operation, and Sleep mode (15 mW) for reduced power applications.
