National Instruments C Series Thermocouple Input Module with 75 S/s Sampling Frequency 250 Vrms Isolation and Cold Junction Compensation

Large Image : National Instruments C Series Thermocouple Input Module with 75 S/s Sampling Frequency 250 Vrms Isolation and Cold Junction Compensation

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	sbRIO-9213

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$9,900/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments C Series Thermocouple Input Module with 75 S/s Sampling Frequency 250 Vrms Isolation and Cold Junction Compensation

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	SbRIO-9213
Highlight:	75 S/s Sampling Frequency Thermocouple Input Module , 250 Vrms Isolation C Series Module , Cold Junction Compensation Temperature Input Module

Customized OEM Solutions for National Instruments C Series Thermocouple Input Module

Product Overview

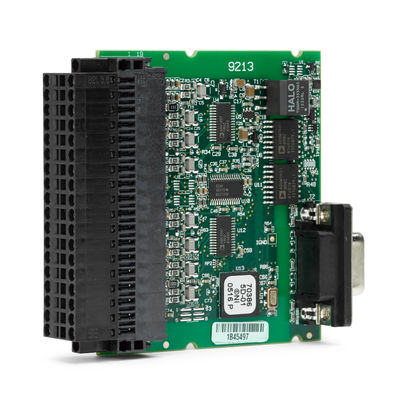

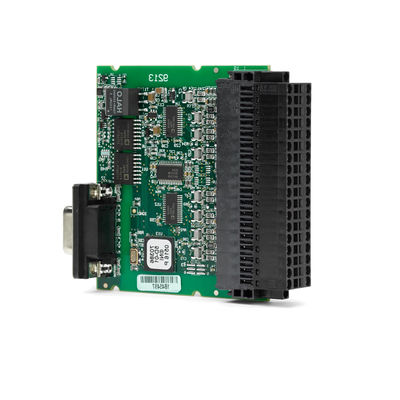

The National Instruments sbRIO-9213 (Part Number: 781210-01) is a C Series temperature input module featuring 16 differential analog temperature input channels. This module includes an auto-zero channel and cold-junction compensation channel for enhanced measurement accuracy.

Key Features

16 differential high-density thermocouple input channels
±78 mV input voltage range with 75 S/s sampling frequency
24-bit ADC resolution for precise measurements
36-port removable spring terminal connector
Supports all standard thermocouples with NIST-defined temperature ranges
Compensation channel and anti-aliasing filtering for improved accuracy
High-resolution mode operation (55 ms conversion time, 1 S/s sampling rate)
±30 V overvoltage protection between any two channels
250 Vrms channel-to-ground isolation for safety
490 mW power consumption in active mode

Technical Specifications

Specification	Value
Maximum Differential Analog Input Channels	16
Conformal Coating	None
Sealing	None
Supported Sensors	All standard thermocouples
Analog Input Isolation	250 Vrms channel-to-ground isolation
Measurement Accuracy Example	0.77 °C
Maximum Sampling Rate	75 S/s
Front-End Connection Type	Spring terminal
Supported Hardware Platform	CompactRIO
