2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution

2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution
2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution 2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution 2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution 2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution 2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution 2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution

Large Image :  2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: USB-5132
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: USB-5132
Highlight:

2 Channels Ni Usb 5132

,

2 Channels Digital Oscilloscope

,

50MHz Bandwidth Ni Usb 5132

Customizable National Instruments USB-5132 Oscilloscope for Industrial Applications
国家仪器 USB-5132 示波器 (部件编号: 780468-01, 779969-01, 780468-02, 779969-02) 是一款具有2个通道, 8位分辨率, 50 MHz带宽的USB示波器设备.该型号提供经济实惠的解决方案,具备50 MS/s采样能力,并支持灵活的电压范围,滤波选项,耦合和阻抗设置.
Key Features:
  • 2通道,8位分辨率USB示波器
  • 50 MHz带宽,50 MS/s采样率
  • 灵活设置电压范围,滤波选项,耦合和阻抗
  • BNC类型模拟输入连接器,支持AC/DC/GND耦合
  • 1 MΩ ±1%输入阻抗
  • 紧凑轻便设计(244克,18.49×3.38×10.29厘米)
  • 板载内存选项:每通道4MB或32MB
  • 2年校准周期
Technical Specifications
Specification Value
Channels 2
Bandwidth 50 MHz
Sampling Rate 50 MS/s
Resolution 8-bit
Input Voltage Range -20 V to 20 V
Input Impedance 1 MΩ ±1%
Connector Type BNC
Bus Connector USB 2.0
Onboard Memory 4MB or 32MB per channel
Additional Features
国家仪器USB-5132配备多功能PFI线路,用于外部时钟输入和触发输入/输出连接.集成采样时钟支持763 S/s到50 MS/s的实时采样率.板载时钟时间基频率为50 MHz,精度±50 ppm.通过PFI线路可耦合1 MHz到50 MHz的外部采样时钟.
该设备支持NI-SCOPE 3.4及更高版本驱动程序,并包含NI-SCOPE软前面板程序进行交互式控制.其便携设计使其成为需要灵活测量配置的各种快速信号应用的理想解决方案.
Product Images

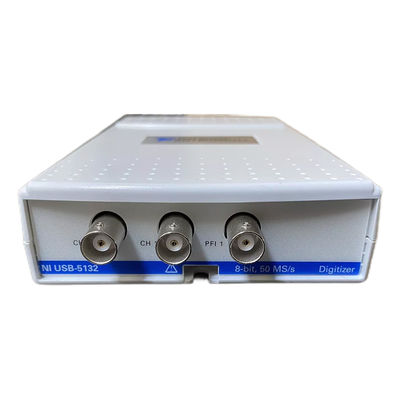

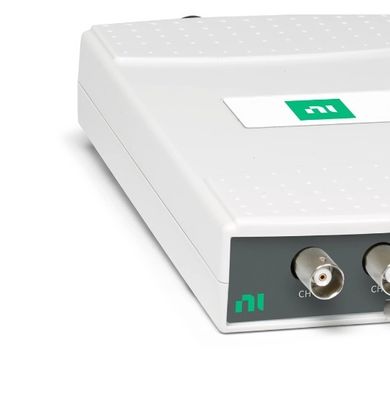

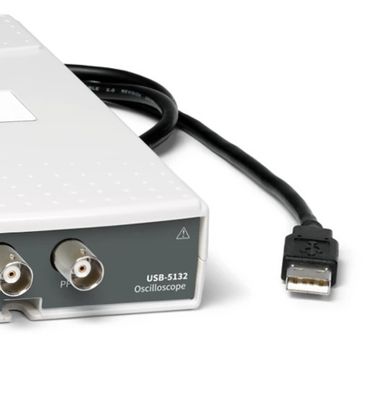

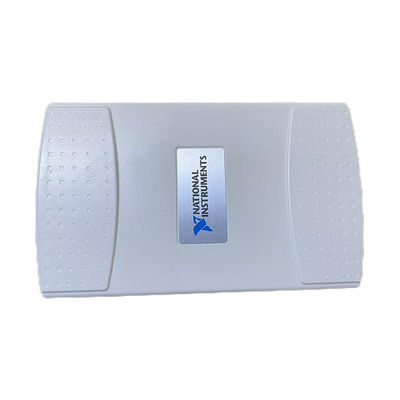

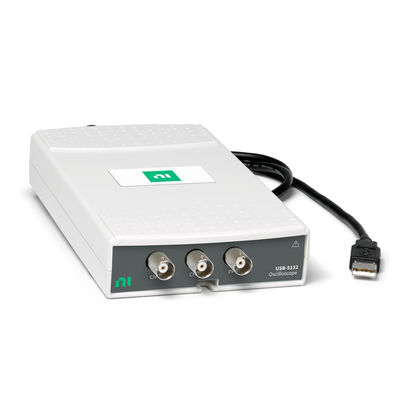

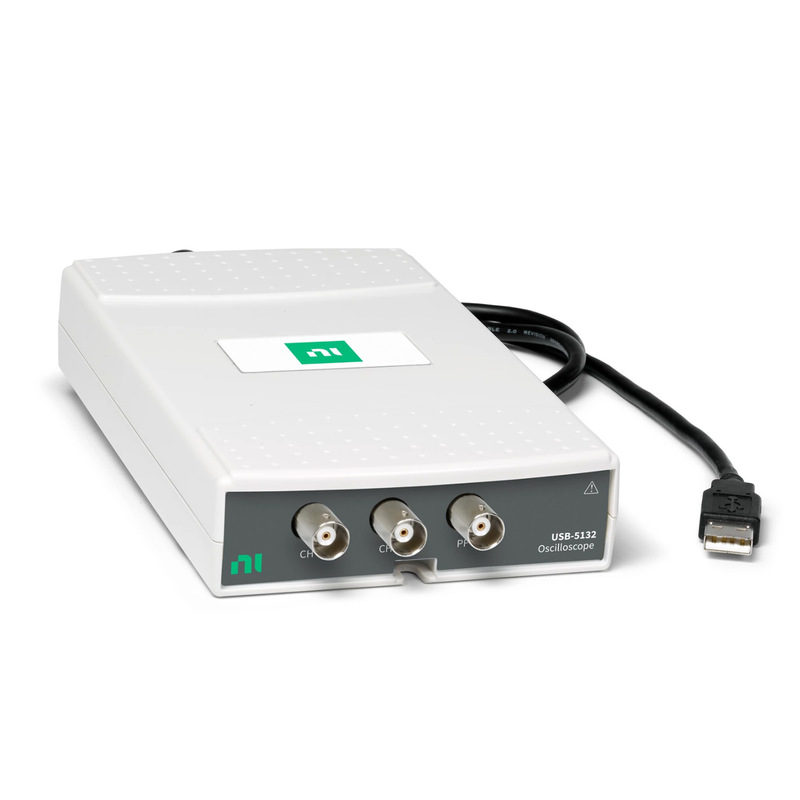

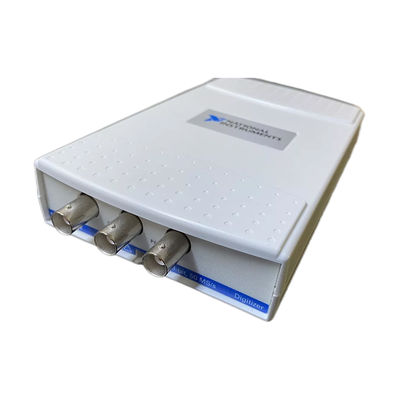

2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution 0
2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution 1
2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution 2
2 Channels Ni Usb 5132 Digital Oscilloscope 50MHz Bandwidth 8 Bit Resolution 3
