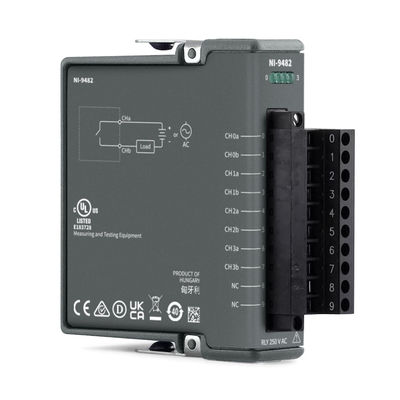

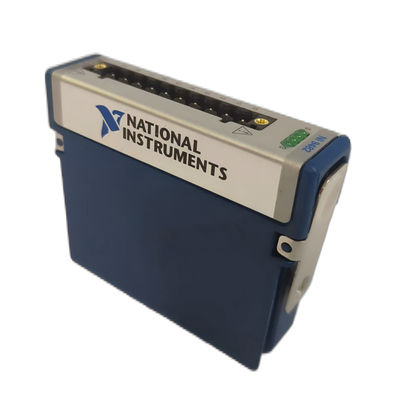

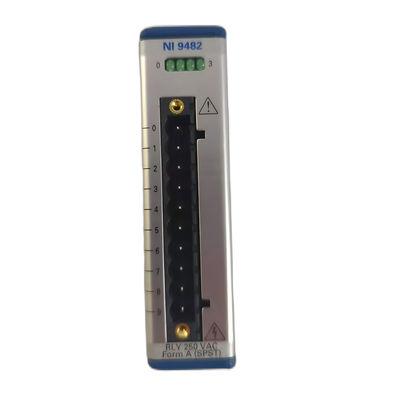

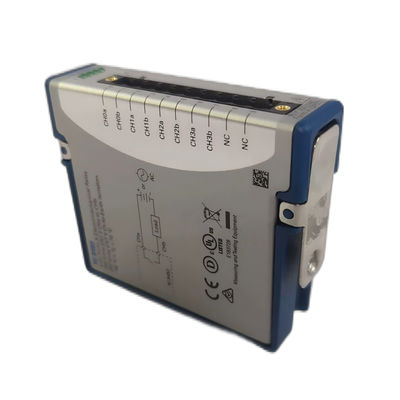

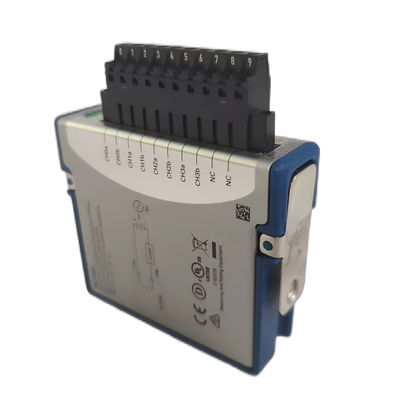

National Instruments NI-9482 C Series Relay Output Module with 4 Digital Output Channels and 30 VDC 60 VDC Switching

Large Image : National Instruments NI-9482 C Series Relay Output Module with 4 Digital Output Channels and 30 VDC 60 VDC Switching

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	NI-9482

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments NI-9482 C Series Relay Output Module with 4 Digital Output Channels and 30 VDC 60 VDC Switching

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	NI-9482
Highlight:	National Instruments NI-9482 , 30VDC Switching C Series Module , 60VDC Switching NI-9482 Module

OEM-Friendly National Instruments 9482 C Series Relay Output Module with Customized Support

The National Instruments NI-9482 C Series Relay Output Module (Part Numbers: 783906-01 and 782999-01) is designed for industrial applications including actuators, DC equipment, and motor control. This robust module meets EMC monitoring limits for safety compliance in demanding environments.

Key Features

Four electromechanical relay channels with two switchable pins per channel (CHa and CHb)
2-wire ferrules ensure secure connections in high-vibration environments
LED status indicators for each channel (illuminated when active)
Choice of screw terminal or spring terminal front connectors
10-terminal connector configuration
Low-power sleep mode (10 mW max) with active power consumption of 580 mW
Four SPST (Single Pole Single Throw) digital output channels
250 VRMS continuous channel-to-ground isolation

Technical Specifications

Switching Capacity	30 VDC, 60 VDC, and 250 VDC signals
Switching Rate	1 operation per second
Relay Timing	10 ms max operate time, 15 ms max release time, 3 ms bounce time
Operating Temperature	-40°C to 70°C
Storage Temperature	-40°C to 85°C
Humidity Range	10% to 90% RH (operating), 5% to 95% RH (storage)
Weight	5.3 oz (150 g)
Relay Type	Electromechanical
Sealing	Yes
Conformal Coating	No
Hardware Platform	C Series
