PCI-4065 Digital Multimeter NI 3kS/S Sampling Rate High Accuracy Multimeter Assembly

Large Image : PCI-4065 Digital Multimeter NI 3kS/S Sampling Rate High Accuracy Multimeter Assembly

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PCI-4065

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

PCI-4065 Digital Multimeter NI 3kS/S Sampling Rate High Accuracy Multimeter Assembly

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PCI-4065
Highlight:	High Accuracy PCI-4065 Digital Multimeter , National Instruments PCI-4065 , 3kS/S Sampling Rate PCI-4065 Digital Multimeter

Customized OEM Support for National Instruments PCI-4065 Digital Multimeter

The National Instruments PCI-4065 (Part Numbers: 779770-01, 190310C-01) is a high-precision 6.5-digit resolution digital multimeter designed for versatile test and measurement applications. This device provides comprehensive solutions for both analog-to-digital and digital-to-analog voltage measurements, current measurements, diode testing, and 2-wire or 4-wire resistance measurements.

Key Features

6.5-digit resolution for high-precision measurements
Voltage measurement range: ±300V (DC or RMS)
Current measurement range: -3A to 3A
Maximum sampling rate: 3 kS/s
Basic DC voltage accuracy: 90 ppm
PCI bus connector for easy integration
Supports NI-DMM driver and software for enhanced performance
Compact design: 7.2 x 0.8 x 4.7 inches, 11.5 oz weight

Applications

Ideal for educational laboratories, OEM applications, and cost-conscious test and measurement environments. The PCI-4065 provides reliable performance for basic to intermediate precision measurement needs.

Technical Specifications

Parameter	Specification
DC Current Range	-3 A to 3 A
DC Voltage Range	-300 V to 300 V
Resolution	6.5 digits
Bus Connector	PCI
Maximum Sampling Rate	3 kS/s
Basic DC Voltage Accuracy	90 ppm
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C

Calibration & Maintenance

The PCI-4065 should be calibrated annually, though frequency may vary based on application requirements. Calibration requires specific equipment including a multifunction calibrator, low thermal EMF connections, and copper cables. Refer to the calibration procedure guide for detailed instructions.

Software Support

The device is supported by NI-DMM instrument driver and compatible with NI LabVIEW SignalExpress and NI-DMM/Switch Express VI. Regular software updates from National Instruments help maintain system stability and hardware performance.

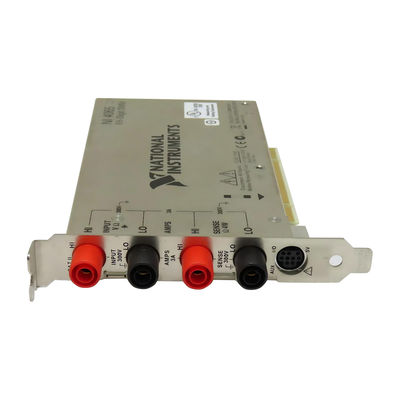

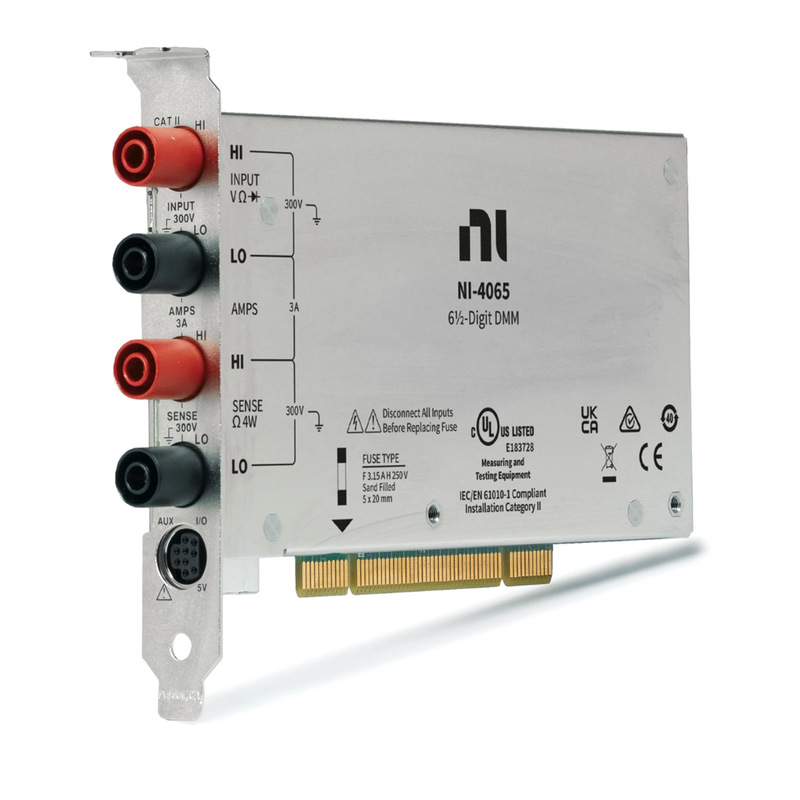

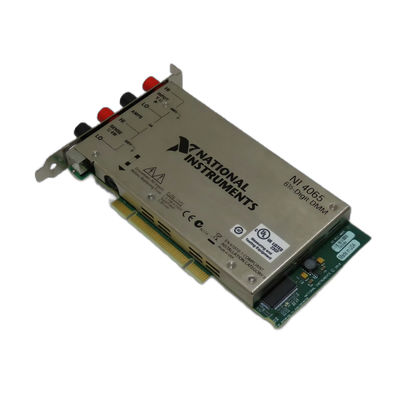

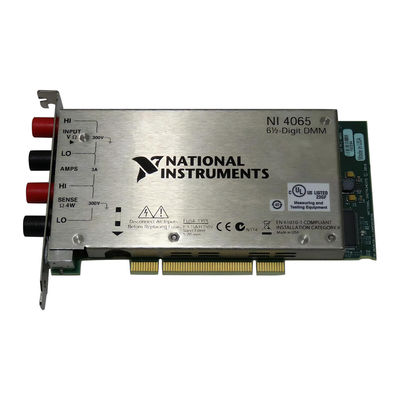

Product Images
