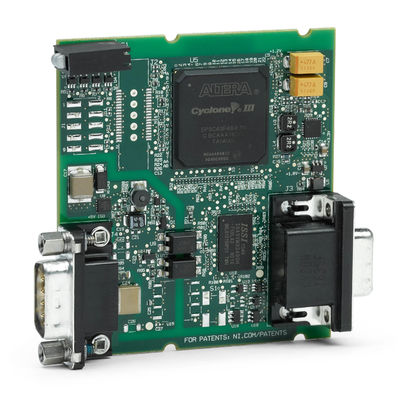

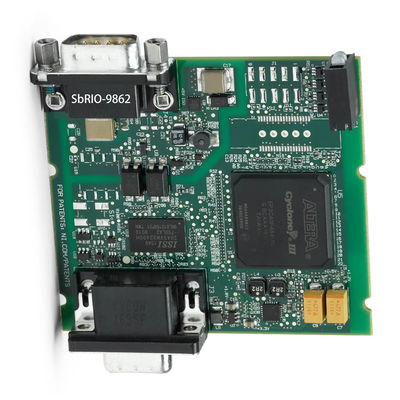

Customized SbRIO-9862 NI Can Module C Series CAN Interface Module 1Mbps Baud Rate 9-30VDC

Large Image : Customized SbRIO-9862 NI Can Module C Series CAN Interface Module 1Mbps Baud Rate 9-30VDC

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	sbRIO-9862

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

Customized SbRIO-9862 NI Can Module C Series CAN Interface Module 1Mbps Baud Rate 9-30VDC

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	SbRIO-9862
Highlight:	SbRIO-9862 NI Can Module , SbRIO-9862 CAN Interface Module , 30VDC NI Can Module

OEM Customizable National Instruments SbRIO-9862 C Series CAN Interface Module for High Demand

Product Overview

The National Instruments sbRIO-9862 C Series CAN Interface Module is a high-speed, flexible data rate Controller Area Network interface module designed for OEM applications and compatible with CompactRIO hardware.

Key Features

Part Number: 785963-01
Compact, rugged design for OEM applications
1 fully isolated high-speed CAN port with Bosch DCAN controller
CAN 2.0B compatibility
NXP TJA1041AT high-speed transceiver compliant with ISO 11898 standard
Supports baud rates up to 1 Mbps

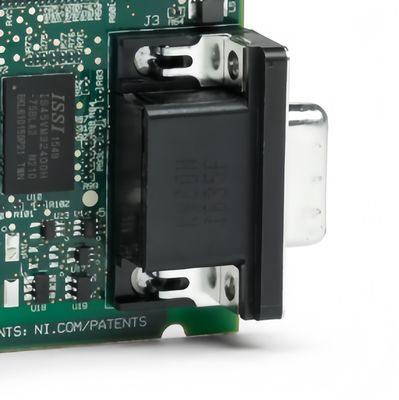

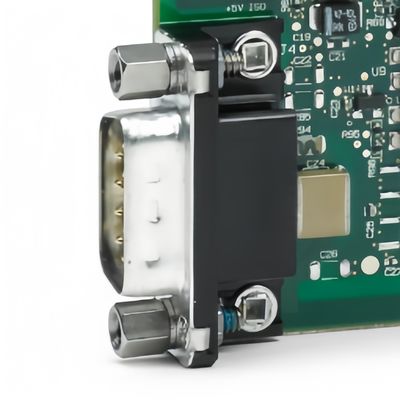

9-pin D-SUB male connector
Can connect to up to 30 CAN nodes when all nodes meet ISO 11898 requirements

Technical Specifications

Power Requirements	9 to 30 VDC
Protection Scheme	Allows dissipation of 1 W between port and COM during operation
Voltage Range	-27 to +40 VDC between port and COM 60 VDC continuous between port and ground

Applications

The sbRIO-9862 module excels in:

Hardware-in-the-loop (HIL) simulation
Bus monitoring systems
Rapid control prototyping
High-speed real-time CAN frame and signal applications

Software Requirements

Requires NI-XNET software installation to enable onboard transceiver for communication with other devices.
