SbRIO-9866 Ni LIN Interface Module With 2400bps-20kbps Baud Rate Versatile Multimeter Assembly

Large Image : SbRIO-9866 Ni LIN Interface Module With 2400bps-20kbps Baud Rate Versatile Multimeter Assembly

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	sbRIO-9866

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

SbRIO-9866 Ni LIN Interface Module With 2400bps-20kbps Baud Rate Versatile Multimeter Assembly

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	SbRIO-9866
Highlight:	SbRIO-9866 Ni LIN Interface Module , National Instruments SbRIO-9866 , Versatile Ni LIN Interface Module

Customized for OEM Compatibility National Instruments SbRIO-9866 C Series LIN Interface Module

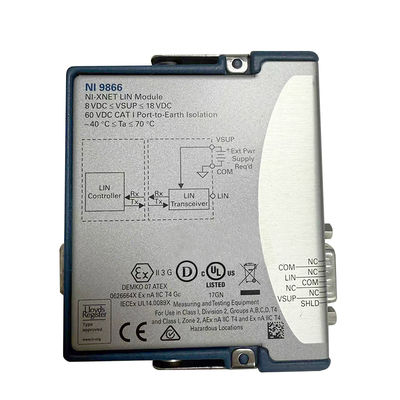

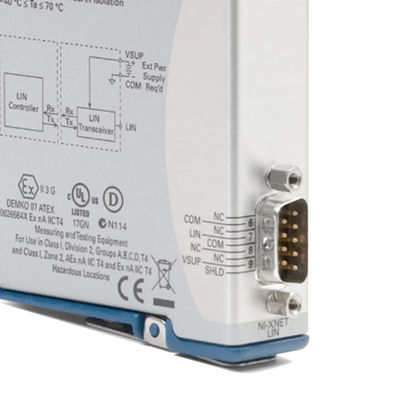

The National Instruments sbRIO-9866 (Part Number: 785965-01) C Series Local Interconnect Network (LIN) Interface Module is an ideal solution for developing versatile applications using NI-XNET drivers. Designed for OEM applications, this non-enclosed module excels in multiple applications including high-throughput bus streaming, hardware-in-the-loop simulation, automated control, in-vehicle data logging, and rapid control prototyping.

Key Features

Integrated multifunctional LIN port with NXP TJA1028 LIN transceiver
Supports baud rates from 2400 bps to 20 kbps
Compatible with LIN 1.3/2.0/2.1/2.2 and SAE J2602 standards
LIN bus line input voltage range of ±40 VDC
Requires +8 to +18 VDC power supply for operation
Advanced protection against overvoltage conditions

Technical Specifications

Parameter	Specification
Operating Voltage Range	+8 to +18 VDC
LIN Bus Input Voltage Range	±40 VDC
Overvoltage Protection	-40 VDC to +40 VDC continuous, withstands 60 VDC continuous and 1000 Vrms briefly
Power Consumption	Maximum 1 W during active operation
Baud Rate Support	2400 bps to 20 kbps

Applications

The sbRIO-9866 module is particularly suited for automotive and industrial applications requiring robust LIN interface capabilities, including vehicle network development, test automation systems, and embedded control applications.
