National Instruments PCI-6516 Digital I/O Device with 32 Digital Output Channels 5V to 30V Control Power and 3 Months Warranty

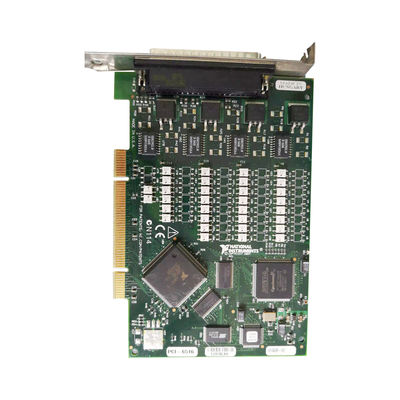

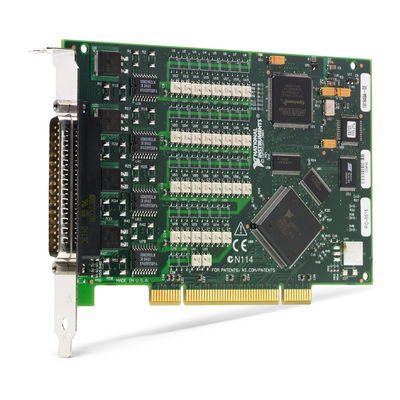

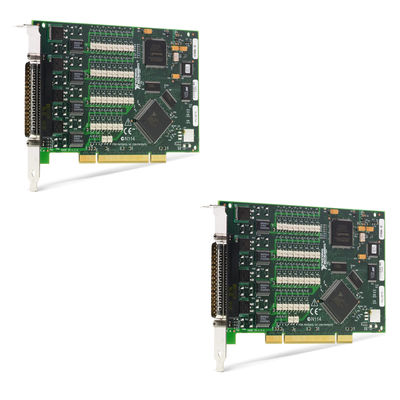

Large Image : National Instruments PCI-6516 Digital I/O Device with 32 Digital Output Channels 5V to 30V Control Power and 3 Months Warranty

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PCI-6516

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PCI-6516 Digital I/O Device with 32 Digital Output Channels 5V to 30V Control Power and 3 Months Warranty

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PCI-6516
Highlight:	32 Digital Output Channels PCI-6516 , 5V to 30V Control Power Digital I/O Device , 3 Months Warranty National Instruments Device

Efficiently Control Your System with National Instruments PCI-6516 Digital I/O Device and Customized Support OEM

Product Overview

The National Instruments PCI-6516 Digital I/O Device (Part Number: 779082-01) features a configurable watchdog timer component that sets outputs to a safe state in case of system failure, frame crash, or communication loss between the application and device.

Key Features

Watchdog timer maintains system safety by resetting outputs to user-defined safe state
Configurable timeout period (up to approximately 7 minutes)
Output lines composed of optocouplers and Darlington transistors
32 digital output channels with 0V to 30V range
75mA current drive for single-ended digital I/O channels

Technical Specifications

Specification	Value
Bus Connector	PCI
Bidirectional Digital Channels	0
Digital Input Channels	0
Digital Output Channels	32
Output Voltage Range	0V to 30V
Current Drive (Single-ended I/O)	75mA

Operation Details

When enabled, the watchdog timer will trigger if no reset command is received within the configured time period. Outputs remain in the safe state until the watchdog is disabled, the device is reset, or the computer restarts.

For proper operation, connect 5V to 30V control power to VCC, ground to COM (GND), and cross-stack between high output and COM (GND). Inputs are recognized as high at ≥11V DC and low at ≤4V DC (4V-11V produces unreliable values).
