National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications

National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications
National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications

Large Image :  National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXI-6529
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $10,000/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXI-6529
Highlight:

48 Channels PXI Digital I/O Module

,

60V Digital I/O Logic PXI-6529

,

100-Pin SCSI Connector National Instruments PXI Module

Customized Support National Instruments PXI-6529 PXI Digital I/O Module for OEM Applications
The National Instruments PXI-6529 (Part Number: 779949-01) is a channel-to-channel isolated 48-channel PXI digital input/output module with sink/source input capability. This parallel industrial interface module is an ideal solution for applications including industrial factory automation, automotive design, machine control, and biomedical applications. The device features a digital input voltage range of -60V to 60V with digital I/O logic levels of 60V.
Key Features
  • 48 isolated digital I/O channels with sink/source input capability
  • Digital input voltage range: -60V to 60V
  • Change detection and digital filtering capabilities
  • Real-time system integration functionality
  • Includes one PXI start trigger line and eight output lines
  • Configurable signal routing from RTSI port
  • 100-pin high-density SCSI connector for all 48 digital inputs
  • Compatible with NIDAQmx driver software and LabVIEW/LabWindows/CVI
Technical Specifications
Parameter Specification
Bus Connector PXI Hybrid
Single-Ended Digital I/O Channel Current Drive 150 mA
Digital I/O Logic Level 60V
Digital Input Channels 48
Digital Input Voltage Range -60V to 60V
Signal Type Single-Ended
Power Requirements 250 mA @ +5 VDC (±5%), 400 mA @ +3.3 VDC (±5%)
Dimensions 6.3 x 3.9 inches
Weight 4.6 oz
Operating Temperature 0°C to 55°C
Storage Temperature -20°C to 70°C
Functional Details
The PXI-6529 provides change detection capability, allowing users to monitor changes on all or selected input lines. When change detection is enabled, the module can be programmed to send a 200 ns pulse to any RTSI line upon detecting a change. The digital logic registers a low state when no voltage is applied to the load and no current flows through the load or module input. A high state is registered when the device detects current flow through the device input and load.
Compatibility
The PXI-6529 operates with NIDAQmx driver software and is compatible with development environments including LabVIEW and LabWindows/CVI. The device can be verified using Measurement & Automation Explorer (MAX) tools.
Product Images

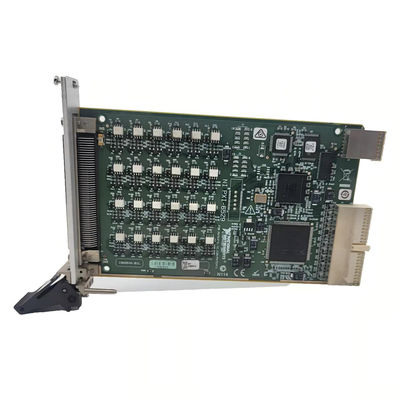

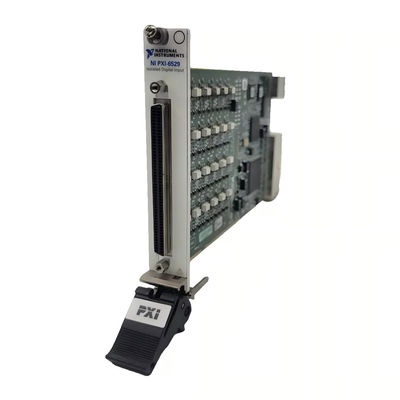

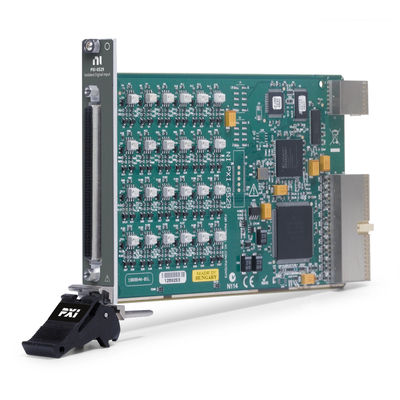

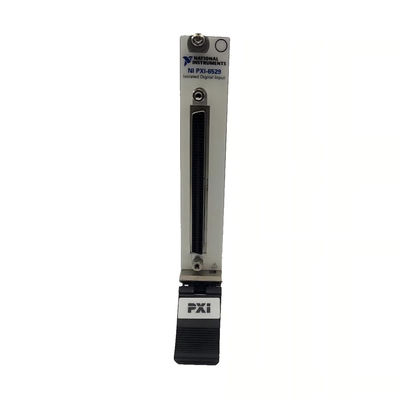

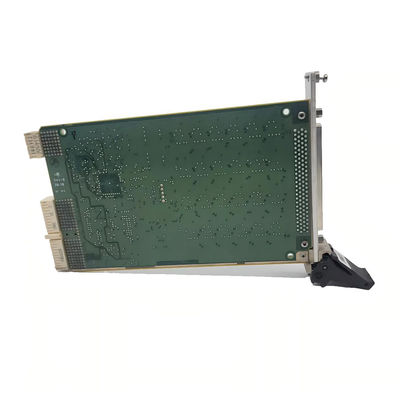

National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications 0 National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications 1 National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications 2 National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications 3 National Instruments PXI-6529 PXI Digital I/O Module with 48 Channels 60V Logic and 100-Pin SCSI Connector for OEM Applications 4
