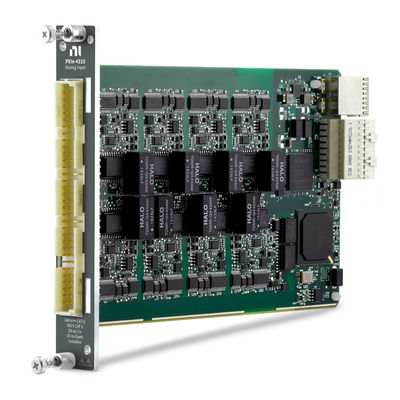

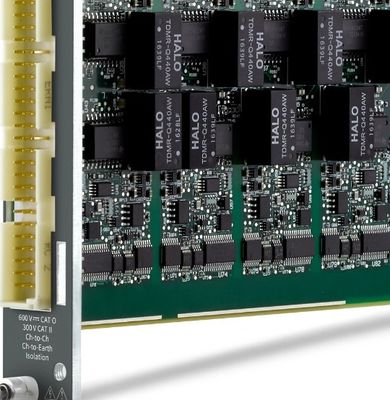

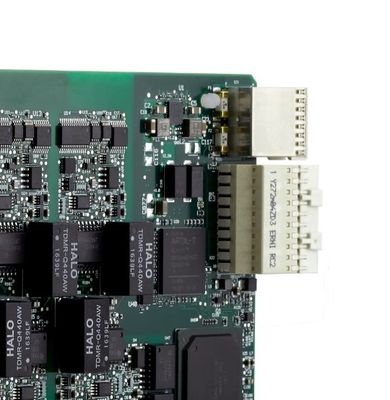

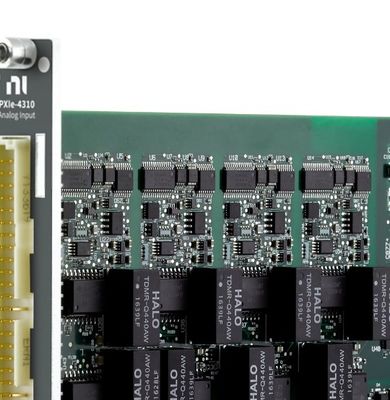

National Instruments PXIe-4310 PXI Analog Input Module with 8 Channels 400ks/s Sampling Rate and 600 V Channel Isolation

Large Image : National Instruments PXIe-4310 PXI Analog Input Module with 8 Channels 400ks/s Sampling Rate and 600 V Channel Isolation

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-4310

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-4310 PXI Analog Input Module with 8 Channels 400ks/s Sampling Rate and 600 V Channel Isolation

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-4310
Highlight:	8 analog input channels PXI Analog Input Module , 400ks/s sampling rate Noise Analyzer , 600 V channel isolation National Instruments PXIe-4310

OEM Support National Instruments PXIe-4310 PXI Analog Input Module

Customized for Your Requirements

The National Instruments PXIe-4310 PXI Analog Input Module (Part Number: 784813-01) is a high-performance solution featuring 8 analog input channels with simultaneous sampling capability. This advanced module delivers exceptional measurement precision and flexibility for industrial applications.

Key Features

8 simultaneous sampling analog input channels
High sampling rate up to 400 kS/s per channel
Channel-to-channel isolation up to 600 V
Multiple input range configurations (-1V to 600V)
Programmable Butterworth filters (10 kHz, 100 kHz)
16-bit resolution for precise measurements
Self-calibration function for improved accuracy
NI-DAQmx driver support for simplified configuration

Technical Specifications

Dimensions: 6.3 x 3.9 inches

Weight: 6.0 oz

Power Requirements: +3.3V (2.9W), +12V (7.1W)

Input Channels: 8 differential

Parameter	Specification
Analog Input Voltage Ranges	-1V to 1V, -10V to 10V, -120V to 120V, -2V to 2V, -300V to 300V, -5V to 5V, -60V to 60V, -600V to 600V
Maximum Isolation Voltage	600 V channel-to-channel
Filter Options	Butterworth, 10 kHz and 100 kHz
Trigger/Clock Function	Two PFI input lines
Compliance	Meets industrial safety standards

Extended Capabilities

The PXIe-4310 module supports range expansion through terminal blocks. With TB-4310 (10V), the range extends to ±10V, and with TB-4310 (600V), it expands to ±600V. The module's self-calibration feature measures onboard reference voltages to maintain accuracy against environmental fluctuations.
