Customized OEM PXIe-5172 Digital Oscilloscope High Density 250MS/S Sampling Rate

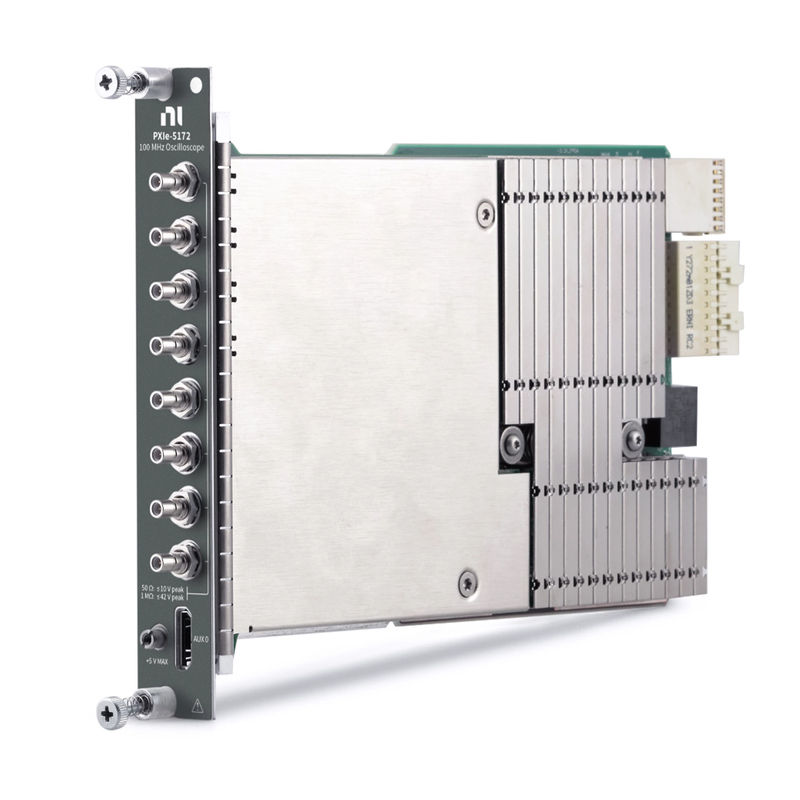

Large Image : Customized OEM PXIe-5172 Digital Oscilloscope High Density 250MS/S Sampling Rate

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-5172

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

Customized OEM PXIe-5172 Digital Oscilloscope High Density 250MS/S Sampling Rate

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-5172
Highlight:	Customized PXIe-5172 Digital Oscilloscope , High Density PXIe-5172 Digital Oscilloscope , PXIe-5172 National Instruments

Customized OEM Support National Instruments PXIe-5172 Density Oscilloscope for Density Applications

The National Instruments PXIe-5172 High-Density Oscilloscope (Part Numbers: 784224-01, 784225-01, 784226-01) is configured using Measurement and Automation Explorer (MAX) for National Instruments hardware. MAX communicates with instrument design libraries and NI-SCOPE driver software to identify available devices and their configurations.

Calibration Requirements

While factory-calibrated, users should perform self-calibration under these conditions:

When first introducing the NI PXIe-5172 into its chassis
After installing, removing, or moving any framework modules
When operating in environments with temperature variations exceeding ±5°C from calibration temperature
Periodically to compensate for minor output drift due to component aging

Advanced Design Features

The PXIe-5172 oscilloscope incorporates innovative technologies including:

Low-power, high-resolution ADC
JESD204B fast serial interface for data transfer
Efficient Xilinx resource utilization
Compact, robust design for test automation systems

Technical Specifications

Bus Connector	PXI Express
Analog Input Impedance	1 MΩ, 50 Ω
Maximum Bandwidth	100 MHz
Maximum Sampling Rate	250 MS/s
Analog Input Voltage Range	-40 V to 40 V
Analog Input Resolution	14-bit
CableSense™	Not Available
