National Instruments PXIe-8510 PXI Vehicle Multiprotocol Interface Module with 2 or 6 Ports and 8 Mb/s Speed for OEM Integration

Large Image : National Instruments PXIe-8510 PXI Vehicle Multiprotocol Interface Module with 2 or 6 Ports and 8 Mb/s Speed for OEM Integration

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-8510

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXIe-8510 PXI Vehicle Multiprotocol Interface Module with 2 or 6 Ports and 8 Mb/s Speed for OEM Integration

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-8510
Highlight:	National Instruments PXIe-8510 , PXIe-8510 Vehicle Multiprotocol Interface Module , 8Mb/s PXI Vehicle Multiprotocol Interface Module

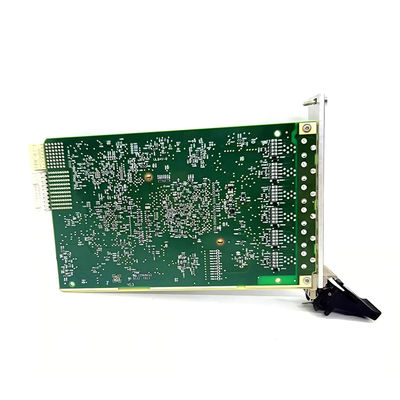

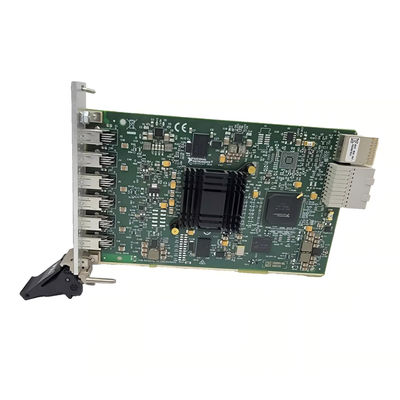

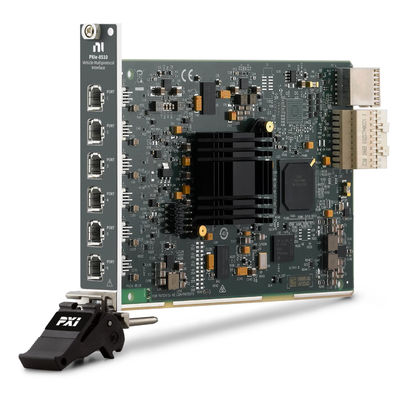

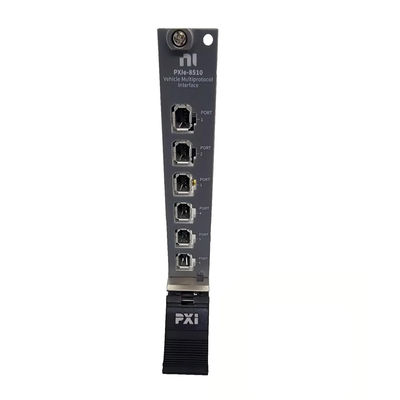

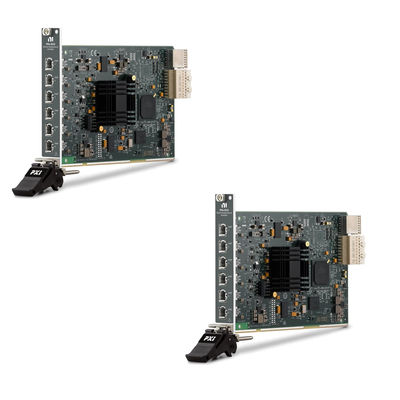

National Instruments PXIe-8510 PXI Vehicle Multiprotocol Interface Module

The Ultimate Solution for OEM Integration

The National Instruments PXIe-8510 PXI Vehicle Multiprotocol Interface Module (Part Numbers: 784121-01 and 784122-01) is a portable multi-protocol interface module available with either 2 or 6 ports. It serves as an optional Controller Area Network (CAN) interface and Local Interconnect Network (LIN) interface for NI controllers in various applications.

Key Features:

Integrated XNET functionality for superior performance in multi-bus and CAN signal applications
Supports high-speed CAN (HS/FD) and LIN interfaces
DMA-controlled engine minimizes CPU interference for efficient message handling
Supports CAN FD communication at speeds up to 8 Mb/s
Compatible with LabVIEW, LabWindows/CVI, and C/C++ programming environments
Ideal for hardware-in-the-loop simulation, rapid control prototyping, bus monitoring, and machine control

Technical Advantages

The NI-XNET driver architecture enables direct memory access (DMA) between the interface and client applications, reducing message latency and freeing processor resources for complex modeling and applications. The module's future-proof design accommodates evolving CAN FD speed standards with driver updates.

Package Includes

PXIe-8510 interface module (2-port or 6-port configuration)
NI-XNET driver software for LabVIEW, LabWindows/CVI, and C/C++
Comprehensive documentation and support resources

Applications

The PXIe-8510 is particularly effective in automotive and industrial applications requiring robust, high-speed communication between multiple systems, including:

Hardware-in-the-loop (HIL) simulation systems
Rapid control prototyping environments
Automotive bus monitoring and analysis
Industrial machine control systems
Vehicle network development and testing
