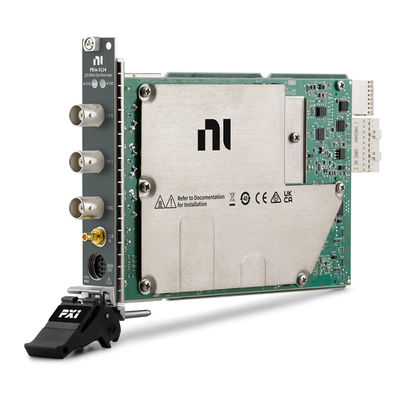

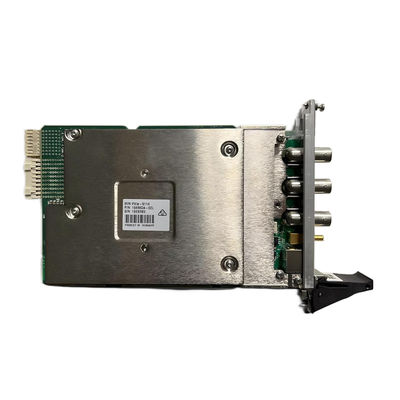

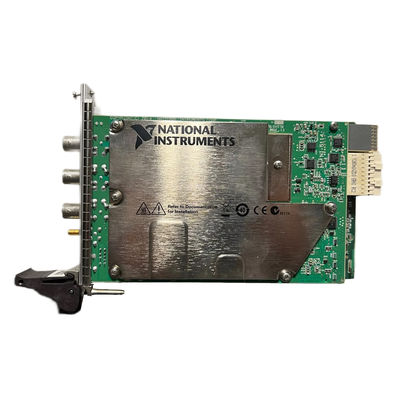

National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth

The National Instruments PXIe-5114 PXI Oscilloscope (Part Numbers: 783591-01, 783591-02, and 783591-03) features two channels with sampling rates up to 250 MS/s per channel, along with adjustable coupling, impedance, voltage range, and filter settings. This model is ideal for applications requiring fast signal processing and flexible measurement design, with a maximum data transfer capability of 125 MHz.

• Edge, window, hysteresis, and advanced triggering with 40 ps timestamp
• Pre-trigger and post-trigger acquisition in single and multiple recording modes
• Internal 250 MHz clock or external 50 to 250 MHz clock
• Phase-locked to PXI 10 MHz reference or external reference from 1 to 20 MHz
• Timestamp trigger events with 100 ps resolution
• IVI-compatible NI-SCOPE driver for NI LabVIEW and LabWindows/CVI, with support for Microsoft C++, Measurement Studio, and Visual Basic
• NI-SCOPE software front panel for intuitive control

• Weight: 17.7 oz
• Dimensions: 8.4 x 0.8 x 5.1 inches
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -40°C to 71°C
• Operating/Non-operating Vibration: 0.3 grms/2.4 grms (5 Hz to 500 Hz)

The NI-SCOPE soft front panel (SFP) provides intuitive control for the PXIe-5114, with version 14.1 offering the most convenient intelligent control. The NI Measurement Automation Explorer (MAX) tool offers interactive configuration and testing capabilities. A 15-minute warm-up time is recommended, with external calibration suggested every 2 years.

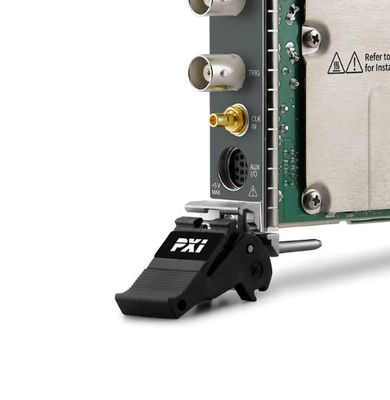

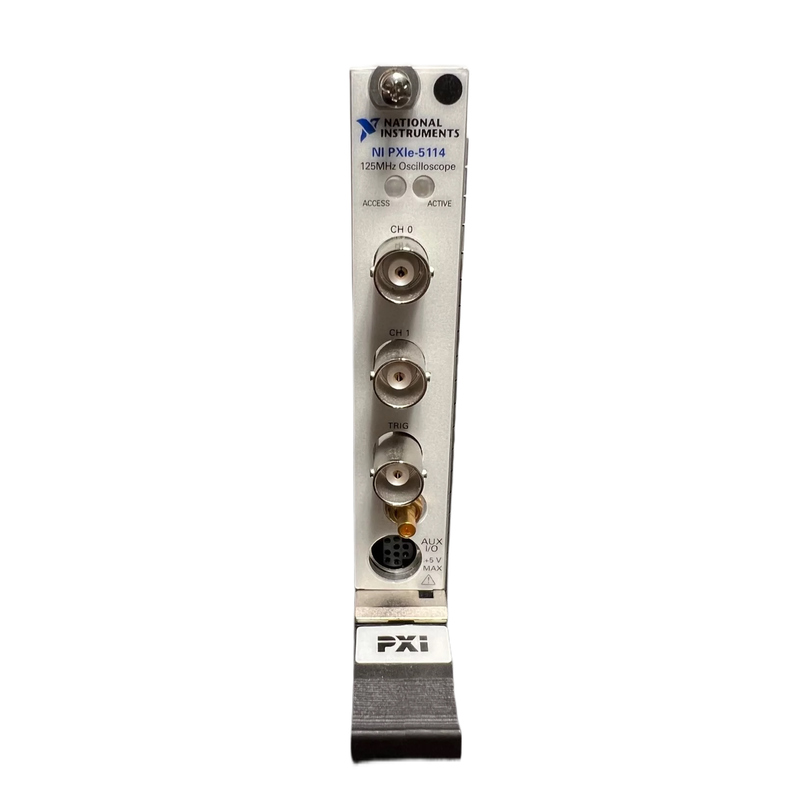

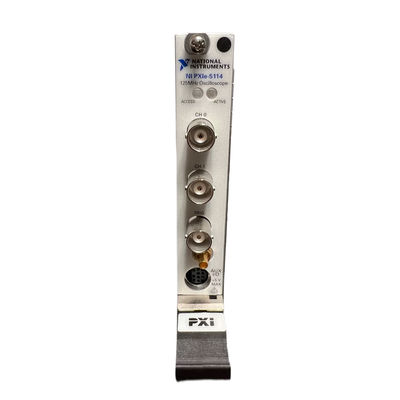

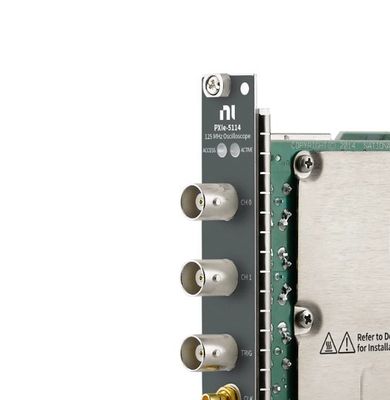

3 BNC female connectors, 1 SMB jack, and 1 9-pin mini circular DIN connector. Total power consumption: 21.63 W.
