C Series Ni Voltage Input Module SbRIO-9221 8 Channels 12 Bit Resolution 800kS/S Sampling Rate

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	SbRIO-9221
Highlight:	Ni Voltage Input Module SbRIO-9221 , 8 Channels Ni Voltage Input Module , SbRIO-9221 c series voltage input module

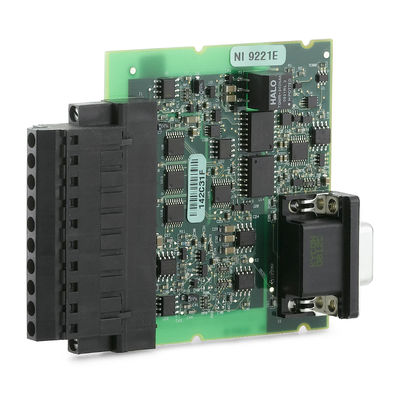

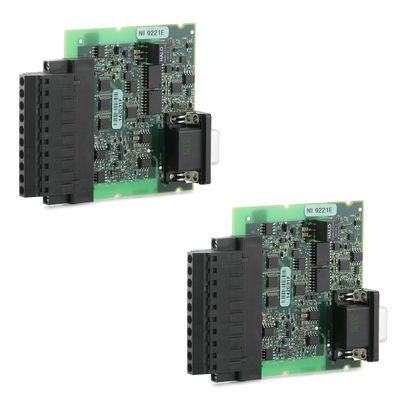

Customized National Instruments SbRIO-9221 C Series Voltage Input Module for Industrial Applications

The National Instruments sbRIO-9221 is a C Series voltage input module designed for industrial applications. This versatile module offers high-performance voltage measurement capabilities in a compact form factor.

Product Overview

Available in two versions with different input isolation voltages and connector types
Features 8 voltage input channels with analog single-ended input type
Supports sampling rates up to 800 kS/s with 12-bit resolution
Ideal for automotive industry applications and industrial measurement systems

Key Features

Two configuration options: D-SUB connector (60 VDC ground isolation) or screw terminal (250 Vrms ground isolation)
Input range from -60 V to 60 V
Individual overvoltage protection for each channel
Compact design for space-constrained applications
Compatible with CompactRIO hardware platform

Technical Specifications

Specification	Value
Analog Input Channels	8 (single-ended)
Input Voltage Range	-60 V to 60 V
Resolution	12-bit
Maximum Sampling Rate	800 kS/s
Input Isolation	250 Vrms channel-to-ground (screw terminal version)
Connector Options	25-pin D-SUB or 10-position screw terminal
Simultaneous Sampling	Not supported
Conformal Coating	No
Sealing	No
Supported Platforms	CompactRIO

Applications

Automotive testing and measurement systems
Industrial process monitoring and control
Small cell measurement applications
General purpose voltage measurement in harsh environments
