SbRIO-9223 C Series Voltage Input Module 1MS/S Sampling Rate 4 Channels 16 Bit Resolution

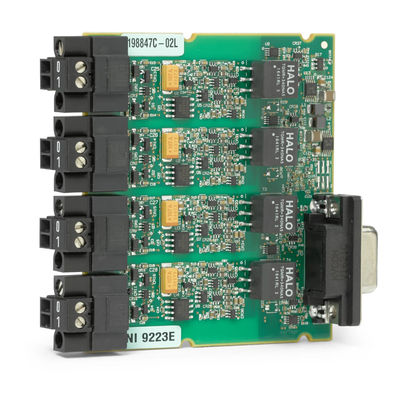

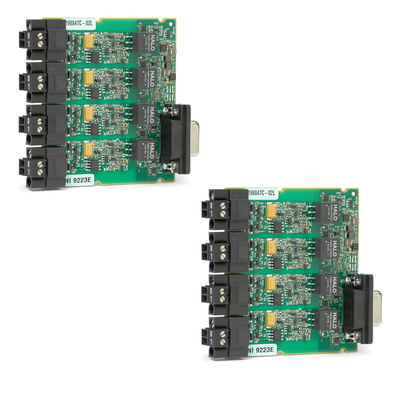

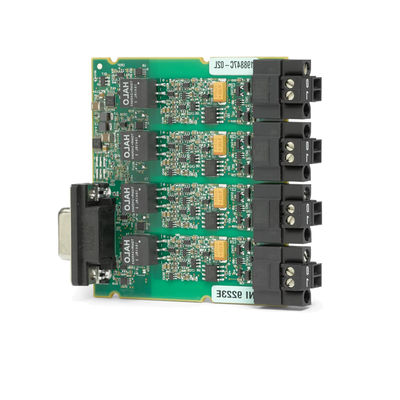

Large Image : SbRIO-9223 C Series Voltage Input Module 1MS/S Sampling Rate 4 Channels 16 Bit Resolution

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	sbRIO-9223

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$9,900/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

SbRIO-9223 C Series Voltage Input Module 1MS/S Sampling Rate 4 Channels 16 Bit Resolution

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	SbRIO-9223
Highlight:	SbRIO-9223 C Series Voltage Input Module , SbRIO-9223 Ni Voltage Input Module , 4 Channels Ni Voltage Input Module

Customized National Instruments SbRIO-9223 C Series Voltage Input Module

Premium OEM Integration Solution

The National Instruments sbRIO-9223 is a high-performance C Series voltage input module designed for precision measurement applications. This module offers superior signal acquisition capabilities with robust connectivity options.

Key Features

4 differential analog input channels with 16-bit resolution
High-speed sampling at 1 MS/s per channel
±10 V channel voltage range for versatile measurements
60 VDC channel-to-channel isolation for enhanced safety
Simultaneous sampling capability for accurate data acquisition
Front-panel screw terminal connections for secure wiring
CompactRIO hardware platform compatibility

Technical Specifications

Specification	Value
Part Number	785480-01
Analog Input Channels	4 differential (0 single-ended)
Voltage Range	-10 V to +10 V
Resolution	16-bit
Maximum Sampling Rate	1 MS/s per channel
Isolation	60 VDC channel-to-channel
Connection Options	Screw terminal or D-SUB connector
Conformal Coating	None
Sealing	None

Ideal Applications

The sbRIO-9223 excels in demanding measurement scenarios including:

Ballistics and shockwave measurement systems
Hybrid measurement test configurations
High-speed data acquisition systems
Precision industrial measurement applications
