NI-9253 National Instruments Input Module 8 Channel 24 Bit Resolution 50kS/S Current

Large Image : NI-9253 National Instruments Input Module 8 Channel 24 Bit Resolution 50kS/S Current

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	NI-9253

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

NI-9253 National Instruments Input Module 8 Channel 24 Bit Resolution 50kS/S Current

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	NI-9253
Highlight:	NI-9253 National Instruments Input Module , 8 Channel National Instruments Input Module , NI-9253 National Instruments

Customizable National Instruments 9253 Current Input Module for OEM Requirements

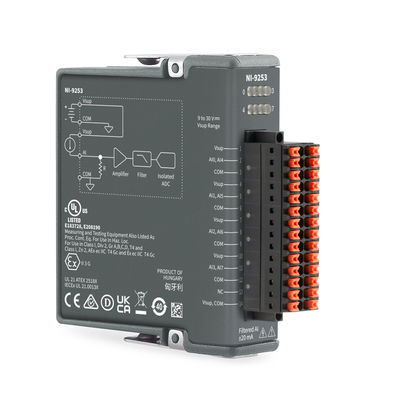

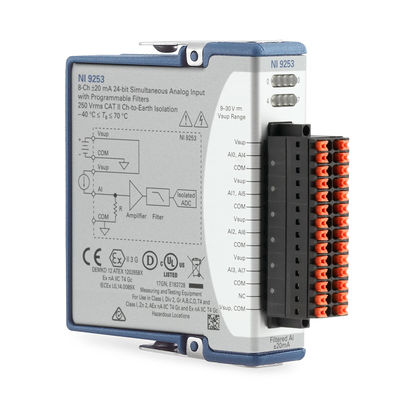

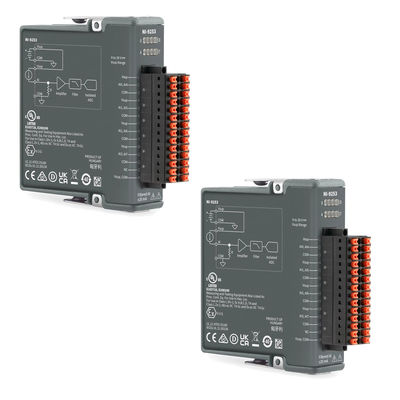

The National Instruments NI-9253 current input module (Part Numbers: 785989-01 and 785989-02) is a C-series analog input module designed for CompactRIO and CompactDAQ systems. This versatile module features 8 analog input channels, each capable of handling a wide ±20 mA input range with 24-bit resolution at sampling rates up to 50 kS/s.

Key Features

8-channel current input module with ±20 mA range per channel
High-speed 50 kS/s sampling rate with 24-bit resolution
Advanced diagnostic capabilities including power monitoring and open channel detection
Status LED indicators for quick operational verification
Programmable hardware filters (comb and Butterworth) for noise reduction
External power connection capability for connected devices
Wide operating temperature range (-40°C to 70°C) for harsh environments
Hot-swappable design for easy transfer between CompactDAQ and CompactRIO platforms
Integrated signal conditioning circuitry
Channel-to-ground isolation of 250 Vrms

Technical Specifications

Specification	Value
Maximum Differential Analog Input Channels	-
Maximum Single-Ended Analog Input Channels	8
Sealed	Yes
Analog Input Resolution	24-bit
Maximum Sampling Rate	50 kS/s per channel
Analog Input Isolation	250 Vrms channel-to-ground
Front Connection	Spring terminal
Measurement Current Range	-20 mA to +20 mA
