National Instruments PXI Matrix Switch Module PXI-2536 In Compact 3U PXI Form Factor

Large Image : National Instruments PXI Matrix Switch Module PXI-2536 In Compact 3U PXI Form Factor

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXI-2536

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXI Matrix Switch Module PXI-2536 In Compact 3U PXI Form Factor

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXI-2536
Highlight:	National Instruments PXI-2536 , PXI-2536 PXI Matrix Switch Module , Compact PXI Matrix Switch Module

Customizable Support National Instruments PXI-2536 PXI Matrix Switch Module for Customized Control

Product Overview

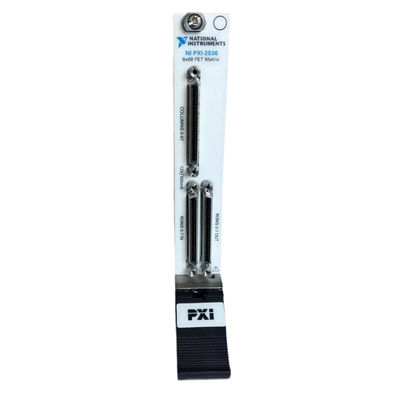

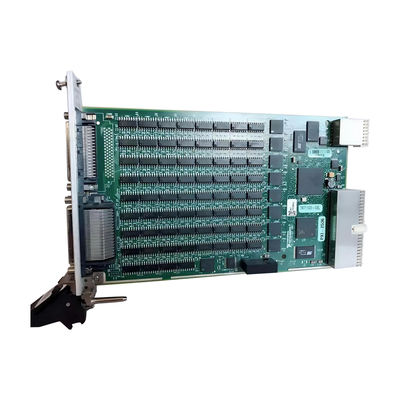

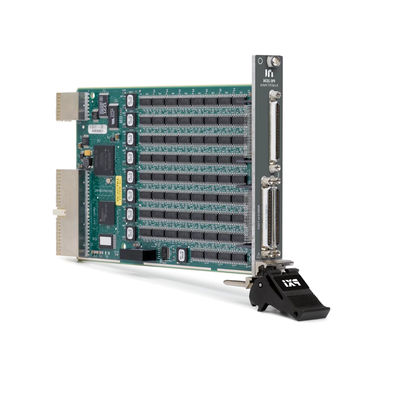

The National Instruments PXI-2536 High-Density FET Matrix Switch Module (Part Number: 778572-36) features 544 crosspoints in a compact, single-slot, 3U PXI form factor. Designed as both a 4x136 one-wire framework and an 8x68 one-wire matrix, this module utilizes field effect transistor (FET) switch technology to deliver exceptional performance characteristics.

Key Features

Unlimited mechanical lifetime with no moving parts
Simultaneous crosspoint connections capability
High-speed switching up to 50,000 crosspoints per second
Ideal for routing low-power DC signals in validation and testing applications
Compatible with NI PXI-4110 programmable power supply and NI PXI-4071 FlexDMM
Includes NI-SWITCH IVI-compliant driver for complete functionality

Technical Specifications

Specification	Value
Crosspoints	544
Scan rate	50,000 cycles/second
Bus connector	PXI Hybrid
Maximum DC switching current	100 mA
Maximum DC switching voltage	12 V
Number of rows	8
Relay type	FET
Switching bandwidth	1 MHz
Mode (n-wire)	1-wire
Number of groups	0
Number of columns	68

Integration & Software Support

The PXI-2536 comes with NI-SWITCH, an IVI-compliant driver providing complete functionality. For high-channel-count applications, NI Switch Executive software enables intelligent switch module configuration, signal routing, and naming. The module integrates seamlessly with NI TestStand test management software, LabVIEW, LabWindows/CVI development environments, and Measurement Studio for Microsoft Visual Basic 6.0, enhancing test code reuse and system performance.

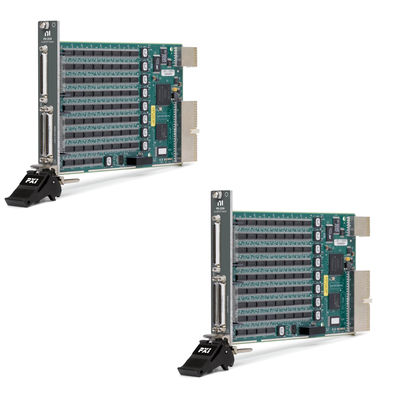

Product Images
