National Instruments PXI Relay Driver Module PXI-2567 64 Channel 78 Pin D SUB Connector OEM

Large Image : National Instruments PXI Relay Driver Module PXI-2567 64 Channel 78 Pin D SUB Connector OEM

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXI-2567

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXI Relay Driver Module PXI-2567 64 Channel 78 Pin D SUB Connector OEM

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXI-2567
Highlight:	National Instruments PXI Relay Driver Module , PXI Relay Driver Module PXI-2567 , National Instruments PXI-2567

Customized Support for OEM Needs: National Instruments PXI-2567 PXI Relay Driver Module

The National Instruments PXI-2567 (Part Number: 778572-67) is a high-performance 64-channel PXI relay driver module designed for versatile industrial applications. This external driver module supports both external and internal power sources, featuring integrated 5V and 12V power supplies with replaceable fuses for overcurrent protection.

Key Features

64-channel relay driver module with comprehensive protection circuits
Integrated overvoltage (80V max), overcurrent (1.5A min), and overtemperature (150°C max) protection
High-speed operation capability up to 150 operations per second
78-pin D-SUB input/output connector for robust connectivity
Flexible triggering options via front panel or PXI trigger lines 0-7
Compact 3U, single-slot PXI module design
Operates with NI-SWITCH driver software

Technical Specifications

Parameter	Specification
Channels	64
Maximum Drive Voltage	50 VDC per channel
Maximum Drive Current	600 mA per channel (25 A module total)
Trigger Pulse Width	Minimum 150 ns (configurable down to <150 ns)
Power Requirements	5V @ 8W, 3.3V @ 0.5W, 12V @ 6W
Internal Drive Power	5V @ 1.25A, 12V @ 0.5A
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
Dimensions	8.5 x 0.8 x 5.1 inches (8 oz weight)

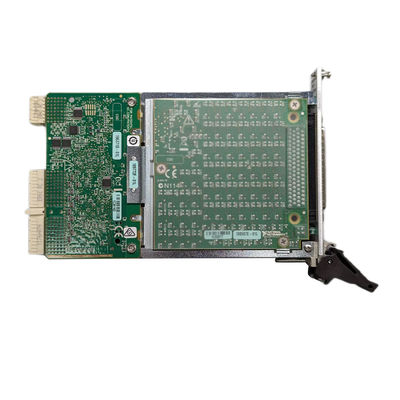

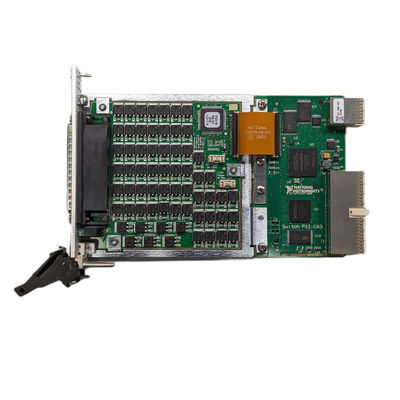

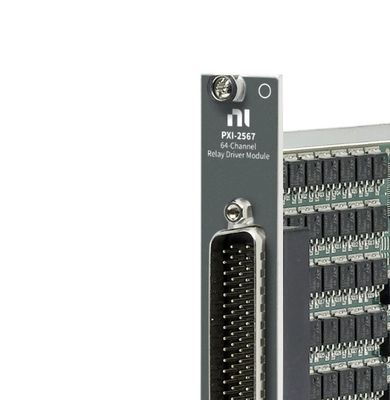

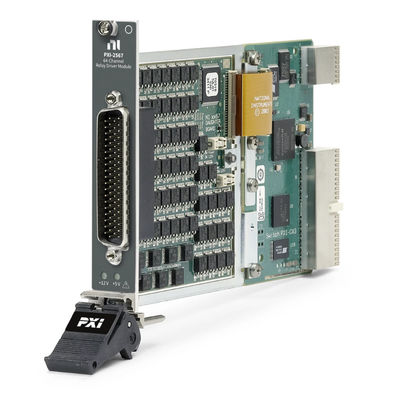

Product Images

Applications

The PXI-2567 is ideal for automated test systems, industrial control applications, and any scenario requiring reliable high-density switching. Its robust protection features and flexible configuration options make it particularly suitable for OEM applications requiring customized support.
