PXI-2586 PXI Relay Module National Instruments With 12A 10 Channel SPST 300V

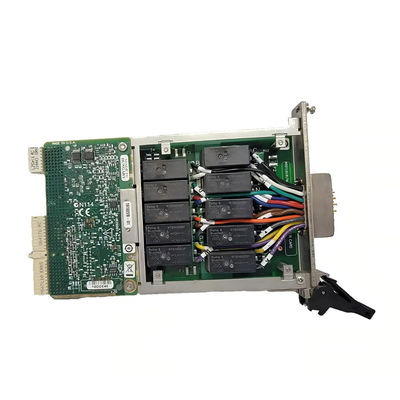

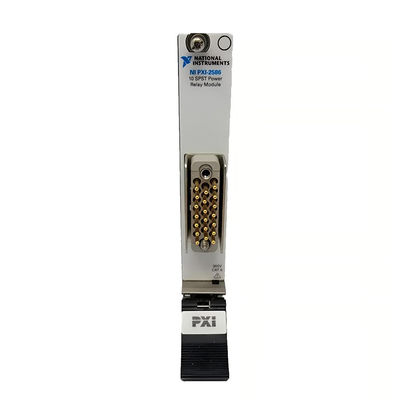

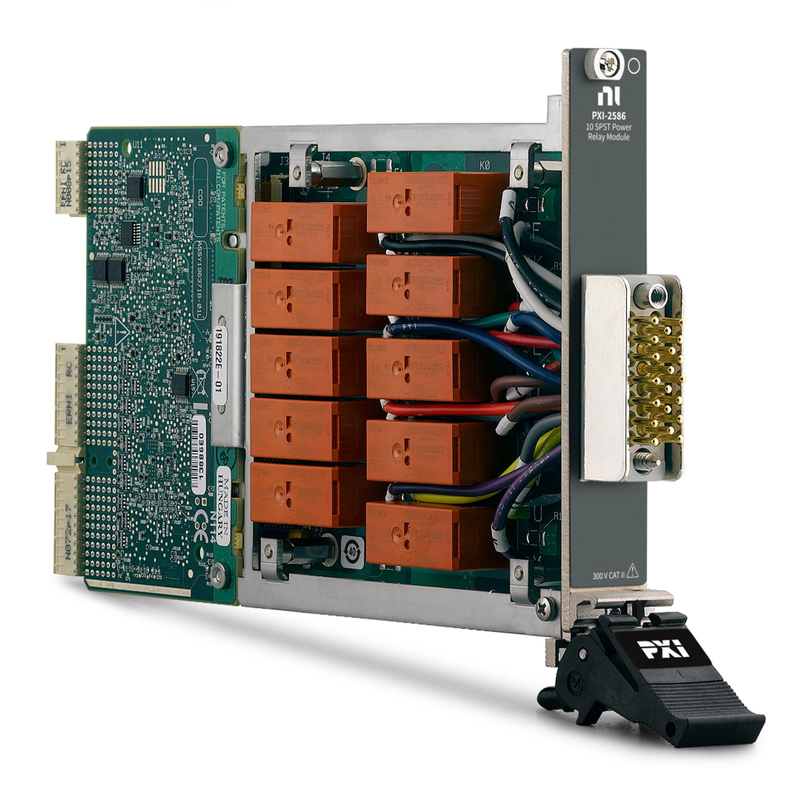

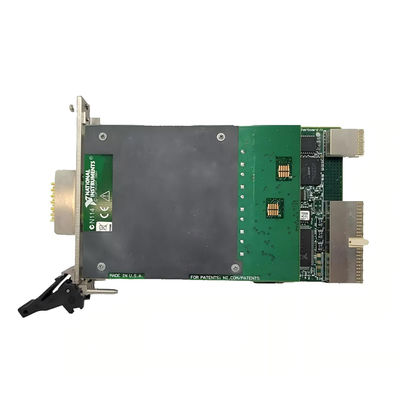

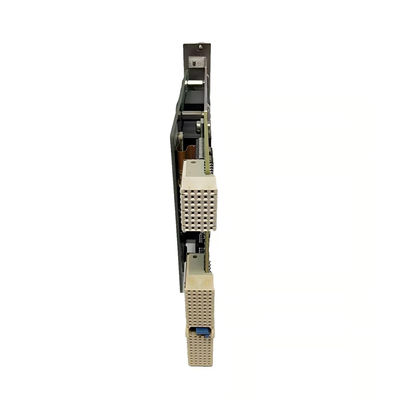

Large Image : PXI-2586 PXI Relay Module National Instruments With 12A 10 Channel SPST 300V

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXI-2586

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$1,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

PXI-2586 PXI Relay Module National Instruments With 12A 10 Channel SPST 300V

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXI-2586
Highlight:	PXI-2586 PXI Relay Module , 12A PXI Relay Module , National Instruments PXI-2586

Customizable National Instruments PXI-2586 PXI Relay Module

The National Instruments PXI-2586 (Part Number: 778572-86) is a versatile, 12 A, 10-channel SPST PXI relay module designed for control applications and switching loads in automotive, battery, and power testing environments.

Key Features

Fully software-programmable with PC-based control
Supports two topology configurations: 10-SPST and 5-DPST
Handles maximum switching voltage of 300 V (channel-to-channel and channel-to-ground, CAT II)
Provides up to 12 A switching current per channel or common at ≤45°C
Features field-replaceable electromechanical relays with silver nickel contacts
Mechanical relay life of 1×10⁷ cycles
Compact 3U, single-slot PXI module (21.6 × 2.0 × 13.0 cm, 400g)

Technical Specifications

Specification	Value
Scan Rate	65 operations/second
Bus Connector	PXI Hybrid
Maximum DC Switching Current	12 A
Maximum DC Switching Voltage	300 V
Relay Configuration	SPST (Normally Open)
Switching Bandwidth	20 MHz
Number of Relays	10

Trigger Capabilities

The PXI-2586 can recognize trigger signals with minimum pulse width of 150 ns via PXI trigger lines 0-7. With digital filtering disabled, it can detect trigger pulse widths <150 ns. Operating at 23°C with 50Ω termination, the module functions within 10 kHz frequency band with channel-to-channel crosstalk ≤-85 dB.

Product Images
