National Instruments PXI Digital Module PXI-6512 Industrial With 64 Channel

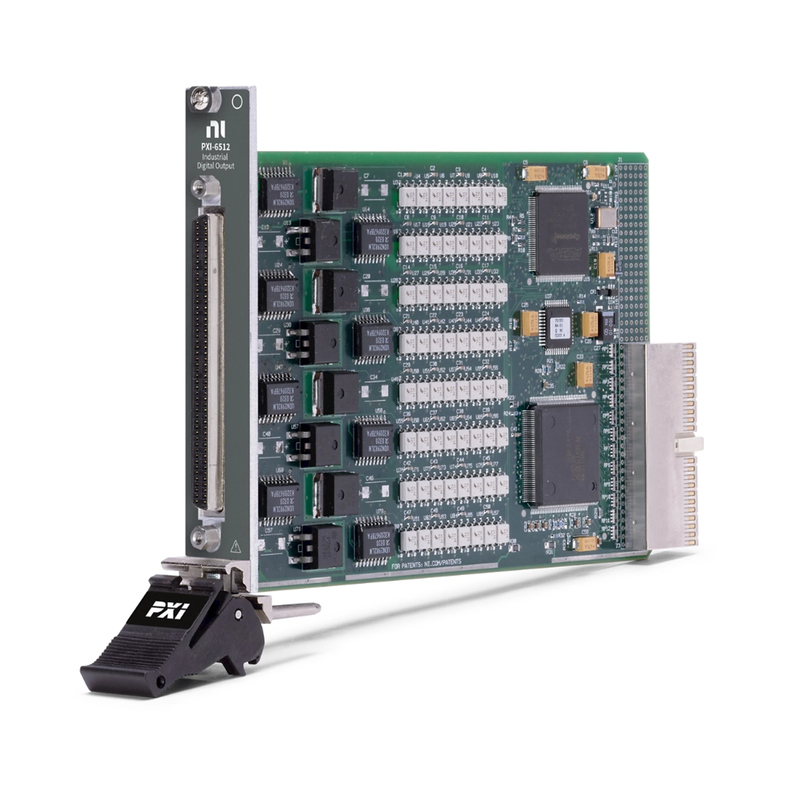

Large Image : National Instruments PXI Digital Module PXI-6512 Industrial With 64 Channel

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXI-6512

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

National Instruments PXI Digital Module PXI-6512 Industrial With 64 Channel

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXI-6512
Highlight:	National Instruments PXI Digital Module , PXI-6512 PXI Digital Module , National Instruments PXI-6512

National Instruments PXI-6512 PXI Digital I/O Module

High-Performance Digital I/O Module with OEM Support

The National Instruments PXI-6512 (Part Number: 778969-01) is a ±30 VDC, 64-Channel, bank-isolated PXI Digital Input/Output Module designed for industrial applications requiring reliable digital signal control.

Key Features

64-Channel isolated digital output
±30 VDC output voltage range
Programmable power-up states for safe startup configuration
Digital watchdog timer for fail-safe operation
Bank isolation with photocouplers for enhanced safety
Compatible with NIDAQmx driver software
Supports LabVIEW and LabWindows/CVI development environments

Technical Specifications

Parameter	Specification
Part Number	778969-01
Output Voltage Range	0 V to 30 V
Digital I/O Logic Level	24 V
Number of Output Channels	64
Current Drive	350 mA
Power Requirements	+5 VDC at 250 mA, +3.3 VDC at 300 mA
Operating Temperature	0 °C to 55 °C
Storage Temperature	-20 °C to 70 °C
Dimensions	8.38 x 5.12 in (4.8 oz)
Bus Connector	PXI Hybrid
Signaling Type	Single-ended

Safety and Reliability Features

The PXI-6512 includes advanced safety features including:

Configurable power-up states for safe initialization
Watchdog timer for automatic fail-safe operation
Bank isolation to prevent cross-channel interference
Output drives disabled at power-up for safety

Software Compatibility

The module is supported by NI-DAQmx driver software and can be programmed using:

LabVIEW
LabWindows/CVI
Other standard application development environments
