PXIe-7902 High Speed Serial Instrument National Instruments With 24 Channel For FPGA Application

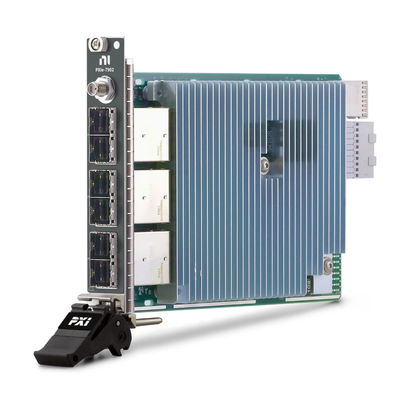

Large Image : PXIe-7902 High Speed Serial Instrument National Instruments With 24 Channel For FPGA Application

Product Details:

Place of Origin:	China
Brand Name:	National Instruments
Model Number:	PXIe-7902

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	$10,000/sets >=1 sets
Packaging Details:	standard packaging
Delivery Time:	Delivery time for minimum order quantity ≤ 30 days
Payment Terms:	T/T ‌L/C
Supply Ability:	100 units/day

Contact Now Chat Now

PXIe-7902 High Speed Serial Instrument National Instruments With 24 Channel For FPGA Application

Description

Warranty:	3 Months	Customized Support:	OEM
Place Of Origin:	American	Brand Name:	National Instruments
Model Number:	PXIe-7902
Highlight:	PXIe-7902 High Speed Serial Instrument , National Instruments PXIe-7902 , 24 Channel High Speed Serial Instrument

National Instruments PXIe-7902 PXI High-Speed Serial Instrument

The National Instruments PXIe-7902 (Part Number: 784232-01) is a 24-channel, 12.5 Gbps high-speed serial instrument. This model is the ideal solution for professionals requiring high-performance FPGA functionality or needing to interface with, verify, and test serial protocols.

Key Features:

24 TX and RX serial channels at 12.5 Gbps
Xilinx Virtex-7 FPGA with 303,600 LUTs and 607,200 flip-flops
Six Mini-SAS HD (x4) connectors
2GB onboard DRAM with theoretical maximum data rate of 10.5GB/s
Fully programmable with LabVIEW FPGA module
PCI-Express Gen2 x8 PXI backplane link

FPGA Capabilities

The PXIe-7902 features a reconfigurable Xilinx Virtex-7 485T FPGA with 303,600 LUTs, 607,200 flip-flops, 2,800 DSP48 slices, and 37,080K bits of embedded block RAM. The FPGA is fully compatible with and programmable via the LabVIEW FPGA module, allowing for maximum customization and reuse.

Connectivity and I/O

The module features six Mini-SAS HD (x4) connectors supporting AC coupling with 100 nF coupling connectors. The front panel includes a CLK IN connector (SMA type) supporting AC coupling and operating across a wide input frequency range of 10 MHz to 300 MHz.

Technical Specifications

Specification	Detail
Bidirectional Digital Channels	24
Maximum Data Rate	12.5 Gbit/s
DRAM	2 GB
PXI Backplane Link	PCI-Express Gen2 x8
FPGA	Virtex-7 485T
Power Consumption	38.25W (max)
Weight	350g

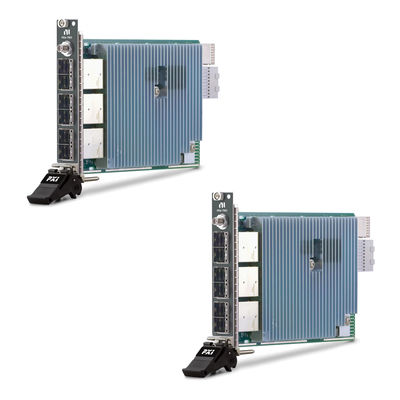

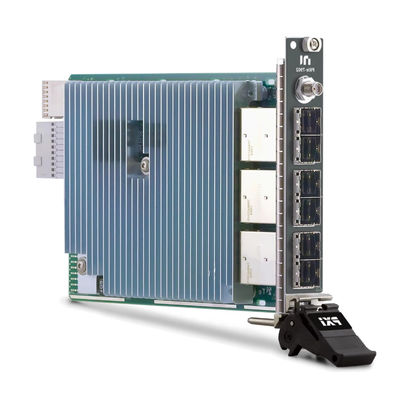

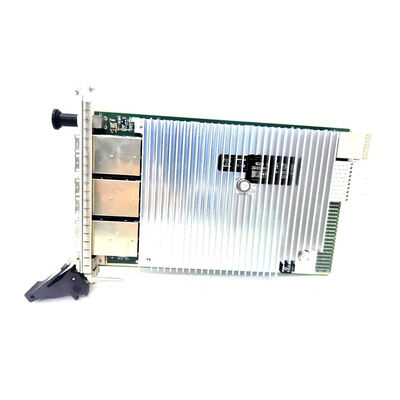

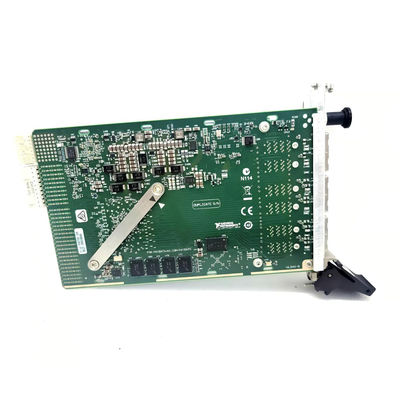

Product Images
