National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector

National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector
National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector

Large Image :  National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector

Product Details:
Place of Origin: China
Brand Name: National Instruments
Model Number: PXI-6514
Payment & Shipping Terms:
Minimum Order Quantity: one
Price: $331/sets >=1 sets
Packaging Details: standard packaging
Delivery Time: Delivery time for minimum order quantity ≤ 30 days
Payment Terms: T/T ‌L/C
Supply Ability: 100 units/day
Contact Now Chat Now

National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector

Description
Warranty: 3 Months Customized Support: OEM
Place Of Origin: American Brand Name: National Instruments
Model Number: PXI-6514
Highlight:

64-Channel PXI Digital I/O Module

,

±30 VDC PXI-6514

,

100-pin High-Density SCSI Connector National Instruments Digital I/O Module

OEM National Instruments PXI-6514 PXI Digital I/O Module with Customized Features
The NI PXI-6514 (Part Number: 778965-01) is an industrial, 64-Channel, ±30 VDC, isolated PXI Digital I/O Module. This module features 32 source/sink input lines and 32 source output lines, with software-configurable initial output states for safer operation when connected to industrial process actuators.
Key Features
  • 64 isolated digital I/O channels (±30 VDC)
  • 32 source/sink input lines and 32 source output lines
  • Software-configurable initial output states
  • Inputs/outputs isolated between banks
  • Digital filtering function for noise elimination
  • NI digital I/O watchdog technology for fault protection
  • Change detection function for automatic triggering
  • 100-pin high-density SCSI connector
  • Compatible with NIDAQmx driver software
Technical Specifications
Parameter Specification
Part Number 778965-01
Input Voltage Range -30 V to 30 V
Output Voltage Range -30 V to 30 V
Digital I/O Logic Level 24 V
Input Channels 32
Output Channels 32
Current Drive 350 mA
Bus Connector PXI Hybrid
Signaling Type Single-ended
Dimensions 6.3 x 3.9 in (6.1 oz)
Operation Details
The PXI-6514 registers a logic high when detecting DC signals from 11 to 30 V, and a logic low at 4 V or less. Entirely software configurable with no jumper settings required, it features programmable power-up states for safe operation with relays, pumps, motors, and valves.
Connectivity Options
The module supports both shielded and unshielded connectivity options. Use with R1005050 ribbon cable and CB-50/CB-50LP Connector Blocks for unshielded connections, or SH100-100-F Shielded Digital I/O Cable with CB-37FH DIN-rail-mountable Connector Block for shielded connections.
Software Compatibility
The PXI-6514 operates with NIDAQmx driver software and is compatible with application development packages including LabVIEW and LabWindows/CVI.
Product Images

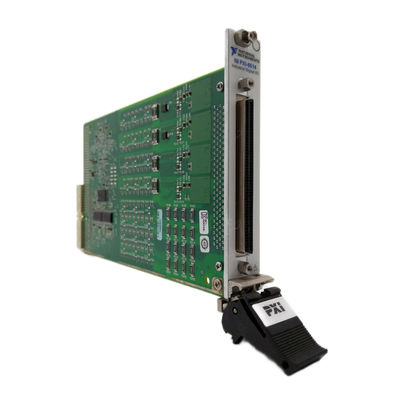

National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector 0

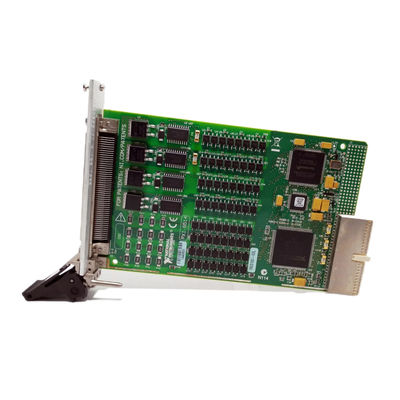

National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector 1

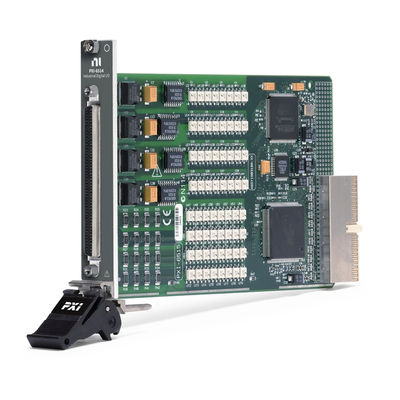

National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector 2

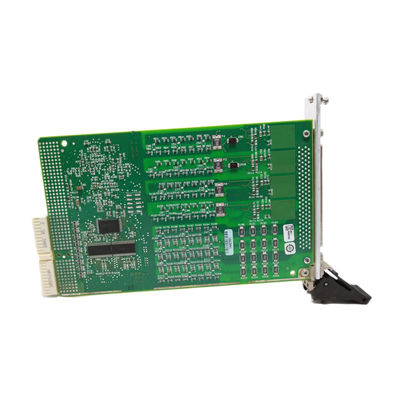

National Instruments PXI-6514 64-Channel ±30 VDC PXI Digital I/O Module with 100-pin High-Density SCSI Connector 3
